DFJ-2S123V

Base product: DFJ-SERIES

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

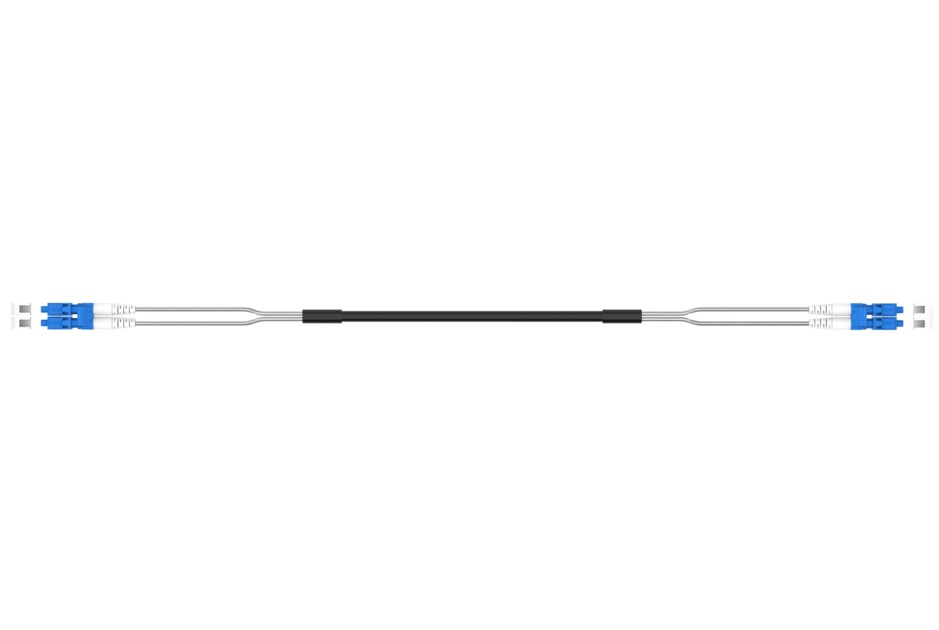

HELIAX® Discrete, 2 single mode fiber, 5 mm LSZH cable, armored furcation, End 1: DLC. End 2: DLC

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Configure product variants

Product variants

Configure and display product variants of DFJ-2S123V by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Cable Assembly Length

Part Number	Cable Assembly Length
No configured items found.

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Wireless Fiber Cable Assemblies
Product Brand	HELIAX®
Product Series	DFJ
Ordering Note	ANDREW® non-standard product

General specifications

Construction Type	Discrete fiber tail
Interface, Connector A	DLC
Interface Feature, connector A	Clippable
Interface, Connector B	DLC
Interface Feature, connector B	Clippable
Jacket Color	Black
Total Fibers, quantity	2

Dimensions

Breakout Length, connector A	457.200 mm \| 18 in
Breakout Length, connector B	457.200 mm \| 18 in
Cable Assembly Length Range (m)	1 – 40
Diameter Over Jacket	4.8 mm \| 0.189 in

Ordering tree

Click on image to enlarge.

Optical specifications

Fiber Mode	Singlemode
Fiber Type	G.657.B3
Insertion Loss, typical note	Insertion loss is measured at 1310 and 1550 nm
Insertion Loss, typical	0.5 dB

Environmental specifications

Operating Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space	Low Smoke Zero Halogen (LSZH)

Packaging and weights

Cable weight

25 kg/km | 16.799 lb/kft
