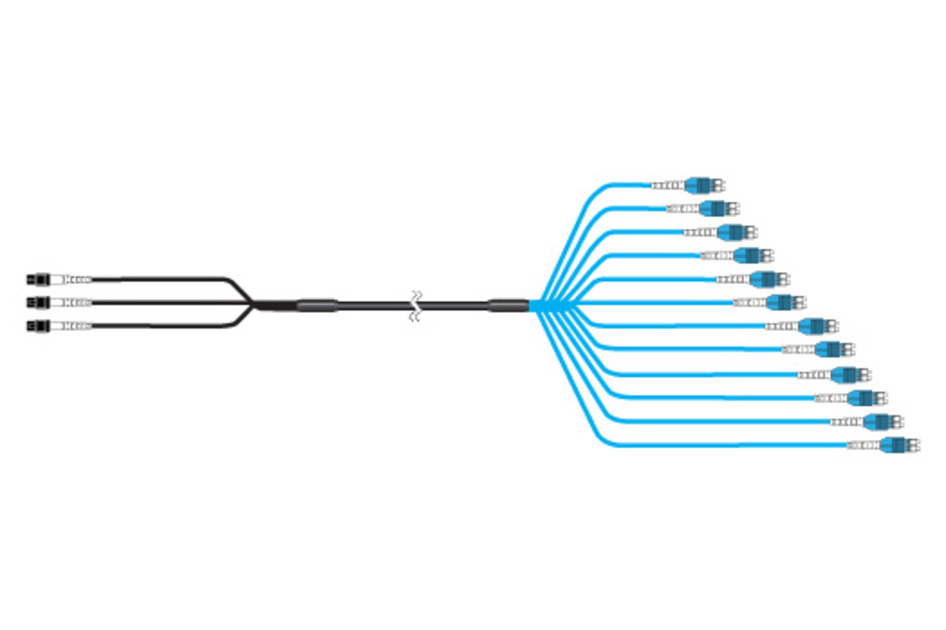

DFT-24M2-LC-MP
Base product: DFT-SERIES
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America
HELIAX® Direct trunk, 24 OM4 Bend-Insensitive multimode fiber. End 1: MPO, End 2: DLC
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | DFT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Construction Type | Discrete fiber trunk |
| Interface, Connector A | DLC |
| Interface Feature, connector A | Uniboot |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | MPO Female |
| Interface Feature, connector B | Uniboot |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 24 |
Dimensions
| Cable Assembly Length Range (ft) | 10 – 1000 |
| Diameter Over Jacket | 8.3 mm | 0.327 in |

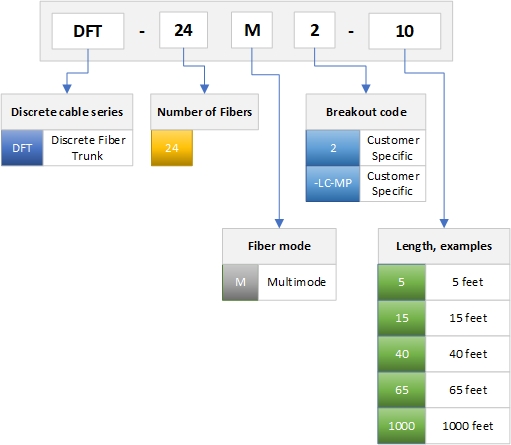

Ordering tree
| Click on image to enlarge. |
Mechanical specifications
| Minimum Bend Radius, furcation | 30 mm | 1.181 in |
Optical specifications
| Fiber Mode | Multimode |
| Fiber Type | OM4, LazrSPEED® 550 |
| Insertion Loss, typical note | Insertion loss is measured at 850 and 1300 nm |
| Insertion Loss, typical | 0.75 dB |
Environmental specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Outdoor |
Packaging and weights
| Cable weight | 72 kg/km | 48.382 lb/kft |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | DFT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Construction Type | Discrete fiber trunk |
| Interface, Connector A | DLC |
| Interface Feature, connector A | Uniboot |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | MPO Female |
| Interface Feature, connector B | Uniboot |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 24 |
Dimensions
| Cable Assembly Length Range (ft) | 10 – 1000 |
| Diameter Over Jacket | 8.3 mm | 0.327 in |
Mechanical specifications
| Minimum Bend Radius, furcation | 30 mm | 1.181 in |
Optical specifications
| Fiber Mode | Multimode |
| Fiber Type | OM4, LazrSPEED® 550 |
| Insertion Loss, typical note | Insertion loss is measured at 850 and 1300 nm |
| Insertion Loss, typical | 0.75 dB |
Environmental specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Outdoor |
Packaging and weights
| Cable weight | 72 kg/km | 48.382 lb/kft |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
