PE-3RRU-1S3B
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

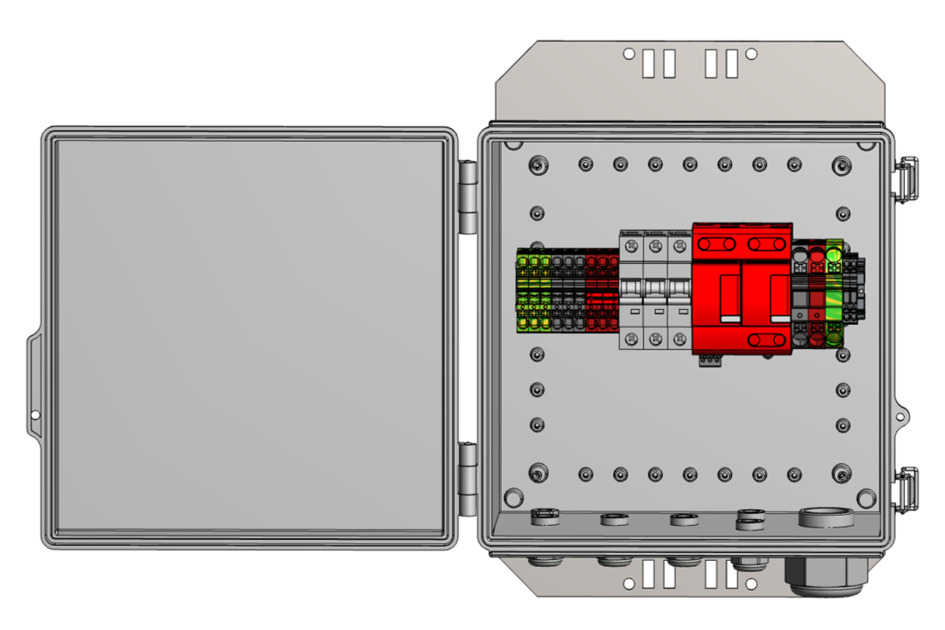

HELIAX® PTTA Enclosure with 1 SPD Class I and 3 Breakers for 3 RRU
Features and benefits
Power enclosure for up to three RRUs with a single –48 V DC input (0, –48, GND), featuring an integrated DEHN NG 2P 60 FM surge protective device (SPD) compliant with EN 61643-11, Class I (up to 50 kA Lightning Impulse current). The SPD includes an alarm for remote inspection. Provides three independent output circuits, each equipped with a Nader NDB1T-63 BXX/1 DC Bircuit Breaker and dedicated DC terminals (0, –48, GND) for RRU jumpers. Breaker ratings available: 6 A, 16 A, 20 A, 25 A, 32 A, and 40 A.
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Outdoor junction box |
General specifications
| Application | Used as a fiber/power junction box |
| Cable Clamps, quantity | 6 |
| Cable Entry Location | Bottom |
| Color | Gray |
| Front Door Type | Double hinged |
| Mounting | Pipe, 44–114 mm (1.75–4.5 in) OD | Wall |
Dimensions
| Height | 394.000 mm | 15.5118 in |
| Width | 329.000 mm | 12.95275 in |
| Depth | 182.000 mm | 7.16535 in |
| Trunk Entry, Diameter, Minimum | 12 mm | 0.472 in |
| Trunk Entry, Diameter, Maximum | 25 mm | 0.984 in |
| Trunk Entry, Quantity, Maximum | 1 |
| Cable Entry Alarm/Ground Gland Size, maximum | 12 mm | 0.472 in |
| Cable Entry Alarm/Ground Gland Size, minimum | 6 mm | 0.236 in |
| Cable Entry Power Gland Size, maximum | 25 mm | 0.984 in |
| Cable Entry Power Gland Size, minimum | 12 mm | 0.472 in |
Electrical specifications
| Alarm Interface | Wire-wrap pins |
| Voltage | -48 Vdc |
Material specifications
| Material Type | High-impact polycarbonate, UV resistant |
Environmental specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Environmental Space | Indoor | Outdoor |
Packaging and weights
| Included | Mounting kit |
| Weight, net | 5.000 kg | 11.0231 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Outdoor junction box |
General specifications
| Application | Used as a fiber/power junction box |
| Cable Clamps, quantity | 6 |
| Cable Entry Location | Bottom |
| Color | Gray |
| Front Door Type | Double hinged |
| Mounting | Pipe, 44–114 mm (1.75–4.5 in) OD | Wall |
Dimensions
| Height | 394.000 mm | 15.5118 in |
| Width | 329.000 mm | 12.95275 in |
| Depth | 182.000 mm | 7.16535 in |
| Trunk Entry, Diameter, Minimum | 12 mm | 0.472 in |
| Trunk Entry, Diameter, Maximum | 25 mm | 0.984 in |
| Trunk Entry, Quantity, Maximum | 1 |
| Cable Entry Alarm/Ground Gland Size, maximum | 12 mm | 0.472 in |
| Cable Entry Alarm/Ground Gland Size, minimum | 6 mm | 0.236 in |
| Cable Entry Power Gland Size, maximum | 25 mm | 0.984 in |
| Cable Entry Power Gland Size, minimum | 12 mm | 0.472 in |
Electrical specifications
| Alarm Interface | Wire-wrap pins |
| Voltage | -48 Vdc |
Material specifications
| Material Type | High-impact polycarbonate, UV resistant |
Environmental specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Environmental Space | Indoor | Outdoor |
Packaging and weights
| Included | Mounting kit |
| Weight, net | 5.000 kg | 11.0231 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
