HELIAX® Hybrid Cable, UL Type TC-OF-ER
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid cable, copper and fiber |
| Product Brand | HELIAX® |
General specifications
| Application | Remote radio head |
| Cable Type | Wireless feeder |
| Conductors, quantity | 4 |
| Construction Type | Shielded |
| Fiber Short Description | RFF – 10AWG |
| Inner Shield (Tape) Material | Corrugated aluminum |
| Jacket Color | Black |
| Outer Shield (Tape) Material | PVC |
| Strength Members | Glass reinforced plastic rod |
| Subunit, quantity | 2 |
| Fibers per Subunit, quantity | 2 |
| Total Fiber Count | 4 |
Dimensions
| Buffer Tube/Subunit Diameter | 3.556 mm | 0.14 in |
| Diameter Over Jacket | 18.288 mm | 0.72 in |
| Conductor Gauge | 10 AWG |
Electrical specifications
| dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| dc Resistance, maximum | 3.409 ohms/km | 1.039 ohms/kft |

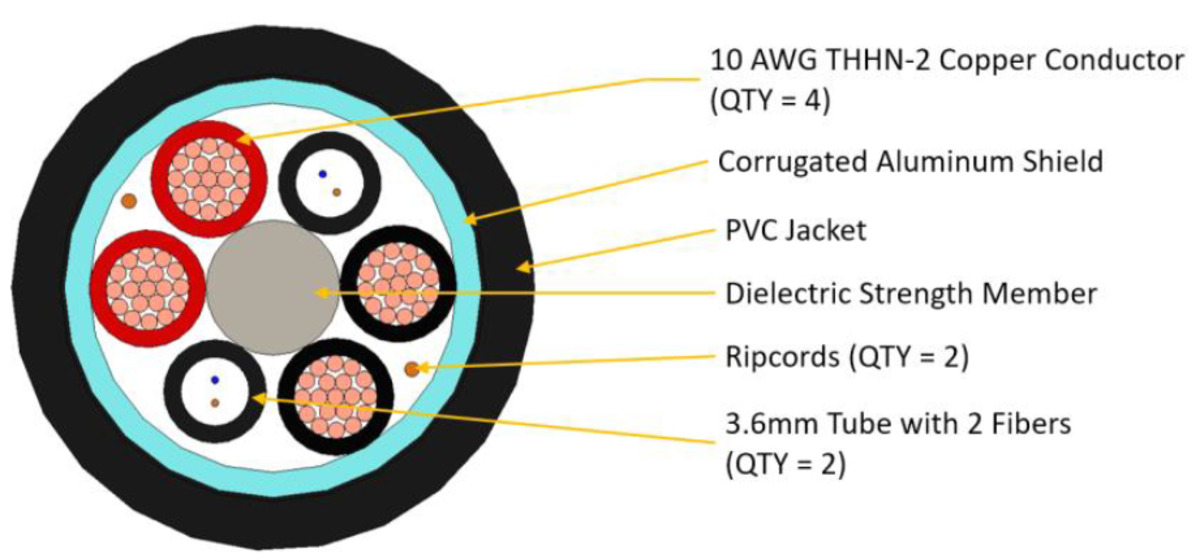

Representative image
| Click on image to enlarge. |
Mechanical specifications
| Minimum Bend Radius, multiple bends, loaded | 365.76 mm | 14.4 in |
| Minimum Bend Radius, multiple bends, unloaded | 220.98 mm | 8.7 in |
| Minimum Bend Radius, single bend, unloaded | 127 mm | 5 in |
| Tensile Load, long term, maximum | 800.68 N | 180 lbf |
| Tensile Load, short term, maximum | 2668.932 N | 600 lbf |
| Compression | 2.25 kg/mm | 126 lb/in |
| Compression Test Method | FOTP-41 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 |
| Impact | 2.942 N-m | 2.17 ft lb |
| Impact Test Method | FOTP-25 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 |
Optical specifications
| Fiber Type | G.657.A2/B2 | G.657.A2/B2 |
Environmental specifications
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-87-640 | Telcordia GR-20 | Telcordia GR-409 |
| Environmental Space | Wireless installation |
Packaging and weights
| Cable weight | 456.122 kg/km | 306.5 lb/kft |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
