HFT206-4SNOK6
Base product: HFT206-SERIES
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

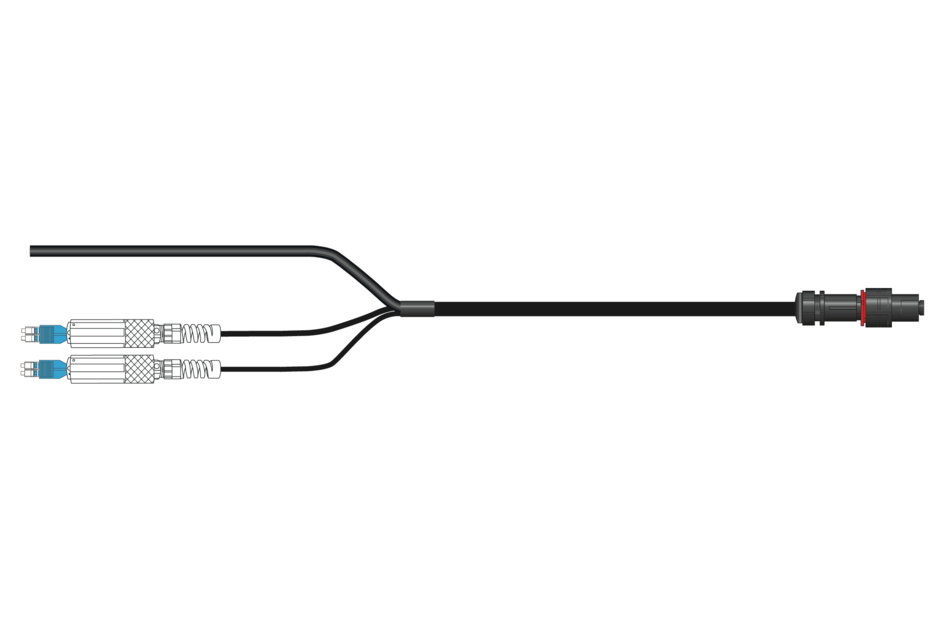

HELIAX® Hybrid Cable Assembly. HQLC End 1: 4 fibers DLC for Nokia AirScale RRUs, R2CT with power connector pre-installed (red / black conductors). End 2: 4 fibers terminated LC and 2 X 6 AWG conductors terminated at hybrid trunk connector
Product variants
Configure and display product variants of HFT206-4SNOK6 by selecting options
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
| Part Number | Cable Assembly Length | ||
|---|---|---|---|
| No configured items found. | |||
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid cable assembly |
| Product Brand | HELIAX® |
| Product Series | HFT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Conductors, quantity | 2 |
| Construction Type | Hybrid standard tail |
| Interface, Connector A | DLC |
| Interface Feature, connector A | Uniboot |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | HQ-LC |
| Interface Feature, connector B | Outdoor |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 4 |
Dimensions
| Cable Assembly Length Range (ft) | 15 – 200 |
| Diameter Over Jacket | 18.31 mm | 0.721 in |
| Center Conductor Gauge | 6 AWG |

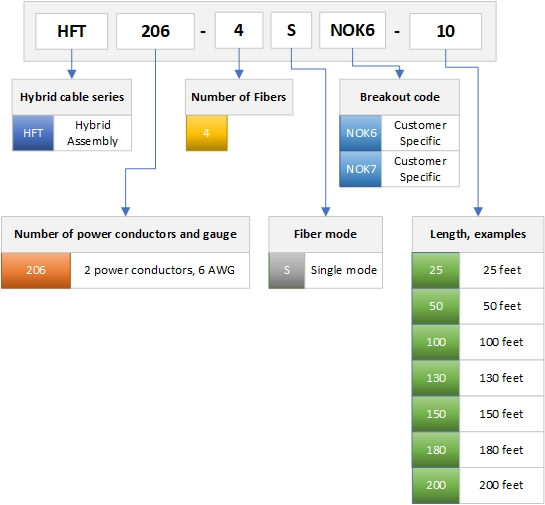

Ordering tree
| Click on image to enlarge. |
Mechanical specifications
| Minimum Bend Radius | 221 mm | 8.701 in |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.75 dB |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
Packaging and weights
| Cable weight | 0.5 kg/m | 0.336 lb/ft |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid cable assembly |
| Product Brand | HELIAX® |
| Product Series | HFT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Conductors, quantity | 2 |
| Construction Type | Hybrid standard tail |
| Interface, Connector A | DLC |
| Interface Feature, connector A | Uniboot |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | HQ-LC |
| Interface Feature, connector B | Outdoor |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 4 |
Dimensions
| Cable Assembly Length Range (ft) | 15 – 200 |
| Diameter Over Jacket | 18.31 mm | 0.721 in |
| Center Conductor Gauge | 6 AWG |
Mechanical specifications
| Minimum Bend Radius | 221 mm | 8.701 in |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.75 dB |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
Packaging and weights
| Cable weight | 0.5 kg/m | 0.336 lb/ft |
| Click on image to enlarge. |
