HJBE02IBDAAAAN
- Available in:
- Asia
- Australia/New Zealand
- China
- EMEA
- Europe
- India
- Latin America
- Middle East/Africa
- North America

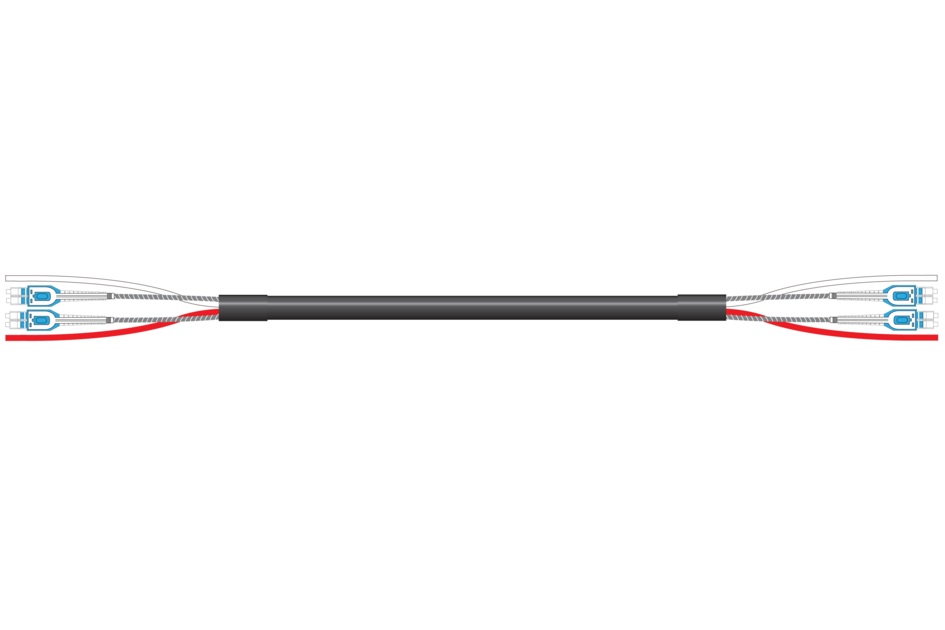

HELIAX® Hybrid Jumper Singlemode B2ca Red/White 2 cores 1.5 mm2 Blunt Cut/Blunt Cut 4 fibers DLC to DLC Breakout length DC/FIBER 170mm No weatherproofing shroud.
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | China | EMEA | Europe | India | Latin America | Middle East/Africa | North America |
| Product Type | Hybrid cable assembly |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Conductors, quantity | 2 |
| Construction Type | Hybrid standard tail |
| Interface, Connector A | DLC |
| Interface Feature, connector A | Standard |
| Interface Body Style, connector A | Flex angle |
| Interface, Connector B | DLC |
| Interface Feature, connector B | Standard |
| Interface Body Style, connector B | Flex angle |
| Jacket Color | Black |
| Total Fibers, quantity | 2 |
Dimensions
| Breakout Length, connector A | 170 mm | 6.693 in |
| Breakout Length, connector B | 170 mm | 6.693 in |
| Cable Assembly Length Range (ft) | 1 – 200 |
| Diameter Over Jacket | 11.7 mm | 0.461 in |
| Center Conductor Gauge | 1.5 mm² |
Mechanical specifications
| Minimum Bend Radius | 117 mm | 4.606 in |
| Minimum Bend Radius, furcation | 30 mm | 1.181 in |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.5 dB |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| EN50575 CPR Cable EuroClass Fire Performance | B2ca |
| EN50575 CPR Cable EuroClass Smoke Rating | s1 |
| EN50575 CPR Cable EuroClass Droplets Rating | d2 |
| EN50575 CPR Cable EuroClass Acidity Rating | a1 |
Packaging and weights
| Cable weight | 0.086 kg/m | 0.058 lb/ft |
