C61L01P37

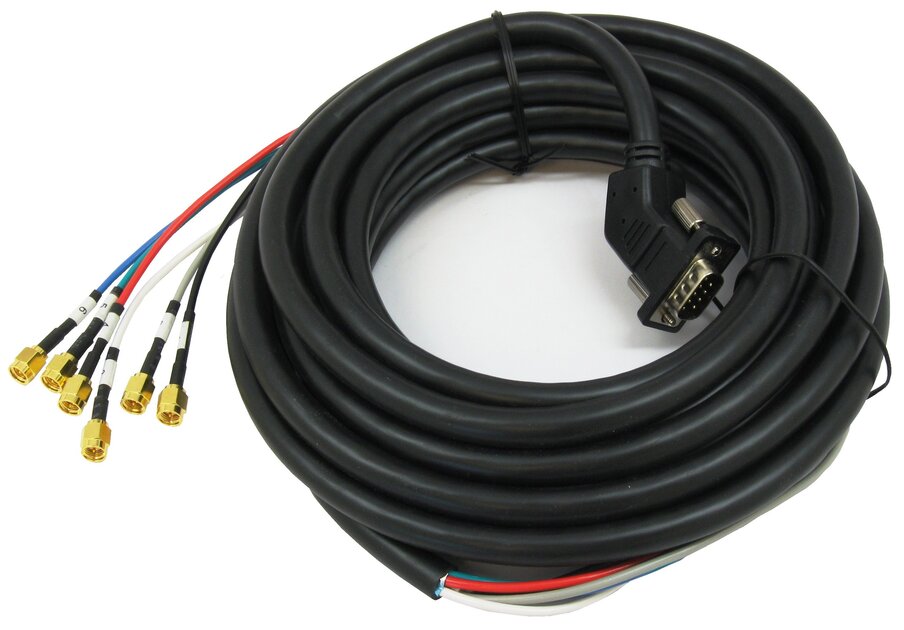

Power Cable Assembly, Bias Tee Harness, standard, 15.5 m
Specifications
Product classification
| Product Type | Power cable assembly |
General specifications
| Application | Power distribution unit |
| Cables in Harness, quantity | 6 |
| Conductor Type | RG174 |
| Conductors, quantity | 1 |
| Connector Interface | 9-pin D-sub Male | SMA Male |
Dimensions
| Length | 15500 mm | 610.237 in |
Material specifications
| Material Type | PVC |
Packaging and weights
| Weight, net | 2.5 kg | 5.512 lb |
Product classification
| Product Type | Power cable assembly |
General specifications
| Application | Power distribution unit |
| Cables in Harness, quantity | 6 |
| Conductor Type | RG174 |
| Conductors, quantity | 1 |
| Connector Interface | 9-pin D-sub Male | SMA Male |
Dimensions
| Length | 15500 mm | 610.237 in |
Material specifications
| Material Type | PVC |
Packaging and weights
| Weight, net | 2.5 kg | 5.512 lb |
