78EZHF

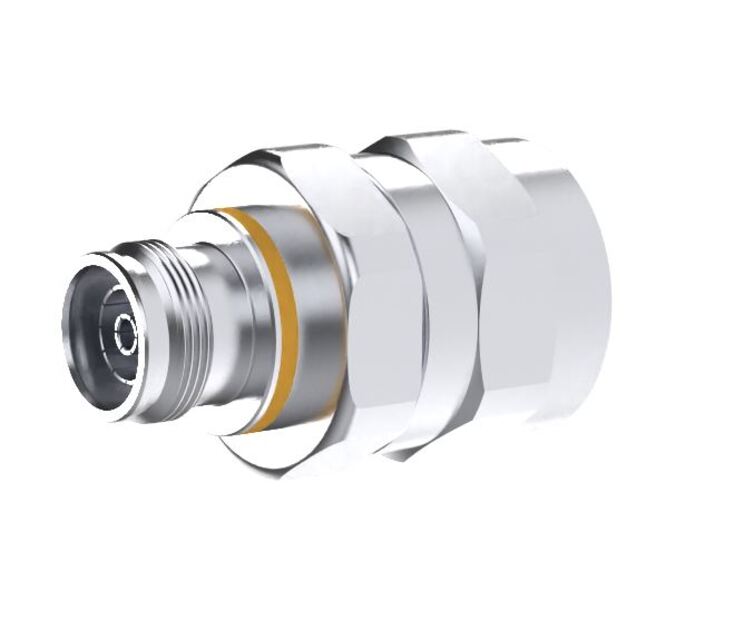

4.3-10 Female EZfit® Connector for 7/8 in AVA5-50 and AVA5-50FX cable
Specifications
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | AVA5-50 | AVA5-50FX | AVA5RK-50 |
General specifications
| Body Style | Straight |
| Cable Family | AVA5-50 | AVA5-50FX |
| Harmonized System (HS) Code | 85366910 (Coaxial cable and other coaxial electric conductors) |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 52 mm | 2.047 in |
| Diameter | 37 mm | 1.457 in |
| Nominal Size | 7/8 in |

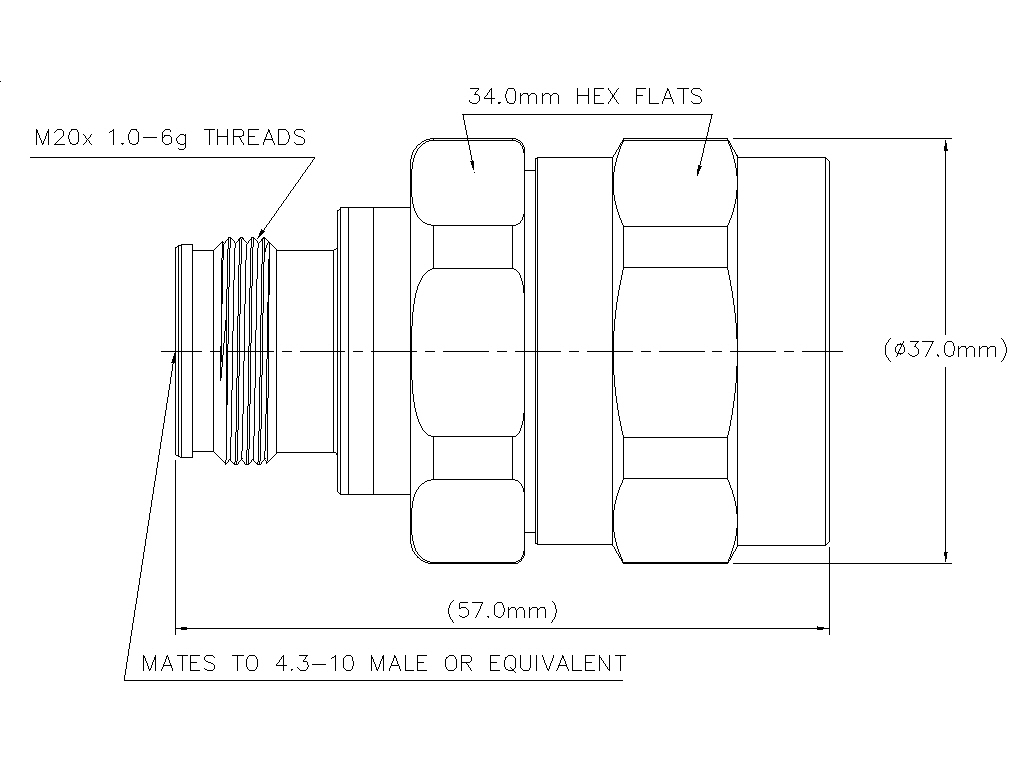

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -115 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 5000 MHz |
| Peak Power, maximum | 15 kW |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) | Gated vswr | Gated return loss (db) |
| 0–1000 MHz | 1.083 | 28.00 | 1.041 | 34.00 |
| 1000–3000 MHz | 1.119 | 25.00 | 1.052 | 32.00 |
| 3000–3800 MHz | 1.119 | 25.00 | 1.052 | 32.00 |
| 3800–4200 MHz | 1.173 | 22.00 | 1.094 | 27.00 |
| 4200–5000 MHz | 1.222 | 20.00 | 1.135 | 24.00 |
Electrical performance

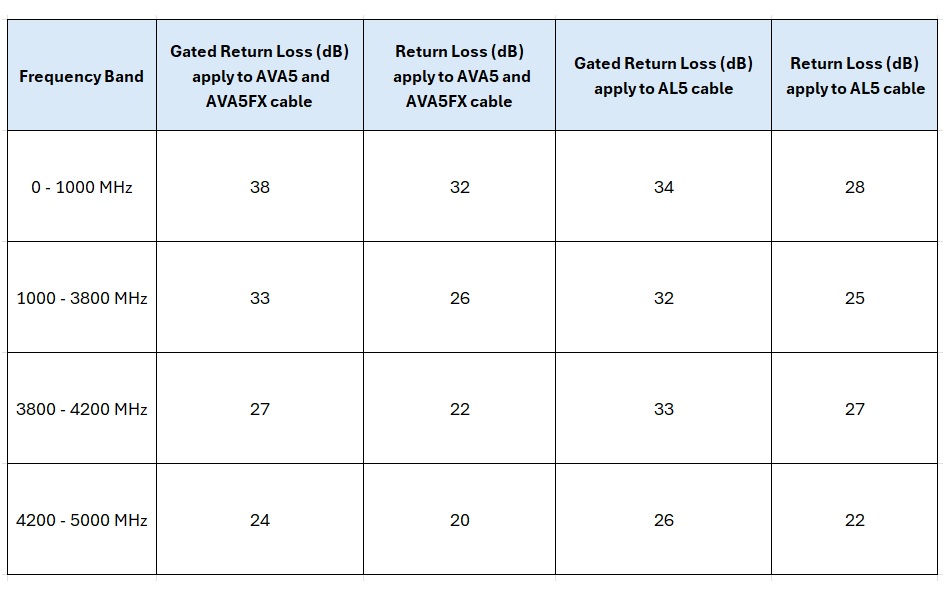

| Click on image to enlarge. |
Mechanical specifications
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -45 °C to +85 °C (-49 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and weights
| Weight, gross | 0.186 kg | 0.4092 lb |
| Weight, net | 135.6 g | 0.299 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
