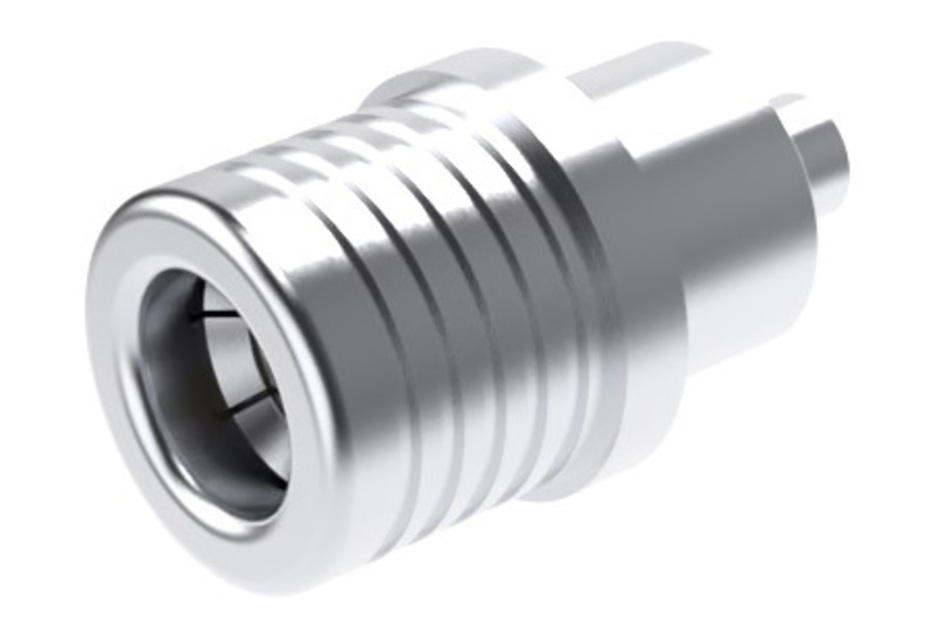

C085QM
QMA Male for 0.085 in CF085-50 cable
Specifications
Product classification
| Product Type | Wireless and radiating connector |
| Product Series | CF085-50 |
General specifications
| Body Style | Straight |
| Cable Family | CF085-50 |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Gold |
| Interface | QMA Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Solder |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 10.41 mm | 0.410 in |
| Width | 10.41 mm | 0.410 in |
| Length | 18.29 mm | 0.720 in |
| Diameter | 10.41 mm | 0.410 in |
Electrical specifications
| 3rd Order IMD at Frequency | -93 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 0.2 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1000 V |
| Inner Contact Resistance, maximum | 3 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 2.5 mOhm |
| Peak Power, maximum | 0.21 kW |
| RF Operating Voltage, maximum (vrms) | 500 V |
| Shielding Effectiveness | -100 dB |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 824–960 MHz | 1.023 | 38.89 |
| 1710–2200 MHz | 1.033 | 35.79 |
| 2200–2700 MHz | 1.037 | 34.82 |
| 3000–4000 MHz | 1.050 | 32.26 |
| 4000–5000 MHz | 1.069 | 29.54 |
| 5000–6000 MHz | 1.109 | 25.73 |
Mechanical specifications
| Insertion Force | 97.86 N | 22.000 lbf |
| Insertion Force Method | IEC 61169-16:9.3.5 |
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Test Mating | Mated |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 15 g | 0.033 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Wireless and radiating connector |
| Product Series | CF085-50 |
General specifications
| Body Style | Straight |
| Cable Family | CF085-50 |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Gold |
| Interface | QMA Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Solder |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 10.41 mm | 0.410 in |
| Width | 10.41 mm | 0.410 in |
| Length | 18.29 mm | 0.720 in |
| Diameter | 10.41 mm | 0.410 in |
Electrical specifications
| 3rd Order IMD at Frequency | -93 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 0.2 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1000 V |
| Inner Contact Resistance, maximum | 3 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 2.5 mOhm |
| Peak Power, maximum | 0.21 kW |
| RF Operating Voltage, maximum (vrms) | 500 V |
| Shielding Effectiveness | -100 dB |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 824–960 MHz | 1.023 | 38.89 |
| 1710–2200 MHz | 1.033 | 35.79 |
| 2200–2700 MHz | 1.037 | 34.82 |
| 3000–4000 MHz | 1.050 | 32.26 |
| 4000–5000 MHz | 1.069 | 29.54 |
| 5000–6000 MHz | 1.109 | 25.73 |
Mechanical specifications
| Insertion Force | 97.86 N | 22.000 lbf |
| Insertion Force Method | IEC 61169-16:9.3.5 |
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Test Mating | Mated |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 15 g | 0.033 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
