F1TSR-HF

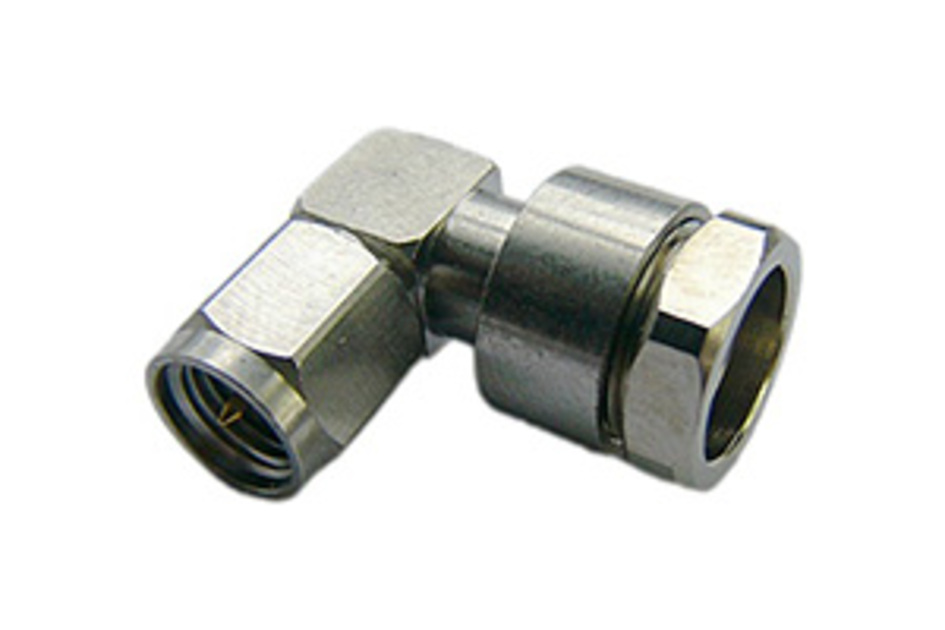

SMA Male Right Angle for 1/4 in FSJ1-50A cable

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series FSJ1-50A

General specifications

Body Style Right angle
Cable Family FSJ1-50A
Inner Contact Attachment Method Solder
Inner Contact Plating Gold
Interface SMA Male
Outer Contact Attachment Method Clamp
Outer Contact Plating Trimetal
Pressurizable No

Dimensions

Height 18.8 mm | 0.740 in
Width 10.92 mm | 0.430 in
Length 20.83 mm | 0.820 in
Right Angle Length 18.8 mm | 0.740 in
Nominal Size 1/4 in

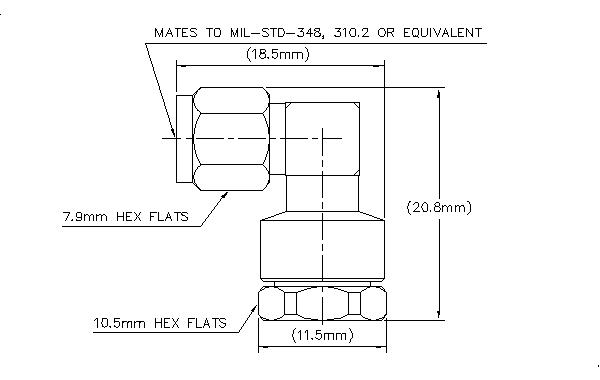

Outline drawing

Click on image to enlarge.

Electrical specifications

Average Power at Frequency 0.4 kW @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 1000 V
Inner Contact Resistance, maximum 3 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 18000 MHz
Outer Contact Resistance, maximum 2.5 mOhm
Peak Power, maximum 2.5 kW
RF Operating Voltage, maximum (vrms) 565 V

Return loss/vswr

Frequency band Vswr Return loss (db)
45–2700 MHz 1.058 31.00
2700–4000 MHz 1.065 30.04
4000–6000 MHz 1.119 25.01
6000–9000 MHz 1.196 20.99
9000–10200 MHz 1.222 20.01
10000–12000 MHz 1.260 19.00
12000–16200 MHz 1.290 18.00
16200–18000 MHz 1.433 14.99

Mechanical specifications

Connector Retention Tensile Force 449.27 N | 101.000 lbf
Coupling Nut Proof Torque 1.7 N-m | 15.046 in lb
Coupling Nut Proof Torque Method IEC 61169-15:9.3.6
Coupling Nut Retention Force 180.02 N | 40.470 lbf
Coupling Nut Retention Force Method IEC 61169-15:9.3.11
Insertion Force 22.02 N | 4.950 lbf
Insertion Force Method IEC 61169-15:9.3.5
Interface Durability 500 cycles
Interface Durability Method IEC 61169-15:9.5
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Corrosion Test Method IEC 60068-2-11
Moisture Resistance Test Method IEC 60068-2-3
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6
Water Jetting Test Mating Mated
Water Jetting Test Method IEC 60529:2001, IP65

Packaging and weights

Weight, net 8.76 g | 0.019 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant, Compliant/Exempted
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
