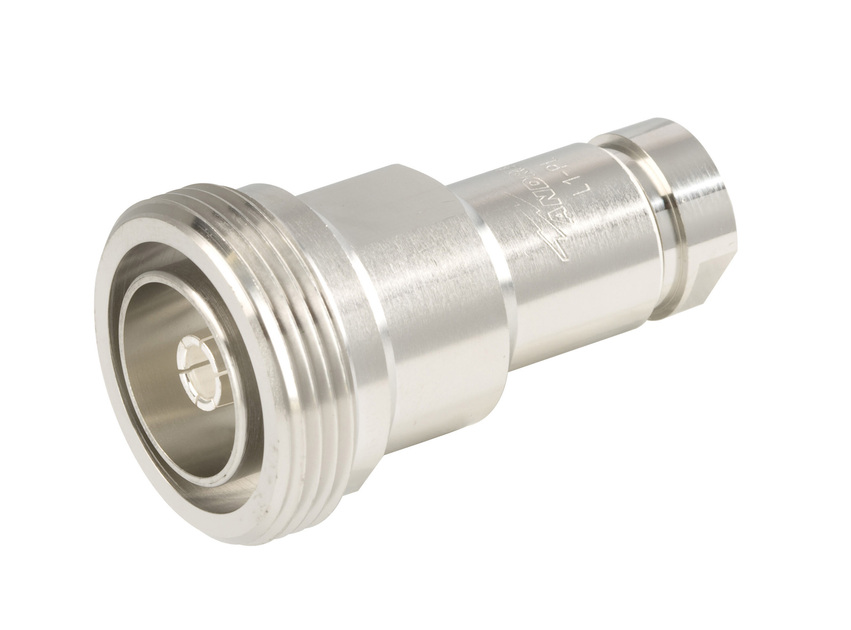

L1TDF-PL

7-16 DIN Female Positive Lock for 1/4 in LDF1-50 cable

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series LDF1-50

General specifications

Body Style Straight
Cable Family LDF1-50
Inner Contact Attachment Method Captivated
Inner Contact Plating Silver
Interface 7-16 DIN Female
Mounting Angle Straight
Outer Contact Attachment Method Self-flare
Outer Contact Plating Trimetal
Pressurizable No

Dimensions

Height 28.96 mm | 1.140 in
Width 28.96 mm | 1.140 in
Length 46.74 mm | 1.840 in
Diameter 28.96 mm | 1.140 in
Nominal Size 1/4 in

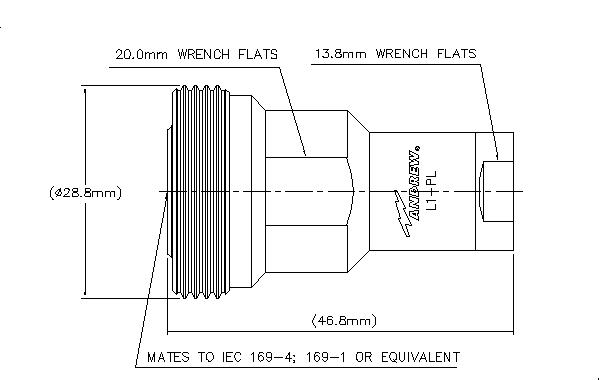

Outline drawing

Click on image to enlarge.

Electrical specifications

3rd Order IMD at Frequency -107 dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
Insertion Loss Coefficient, typical 0.05
Average Power at Frequency 0.6 kW @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 2200 V
Inner Contact Resistance, maximum 0.4 mOhm
Insulation Resistance, minimum 10000 mOhm
Operating Frequency Band 0 – 6000 MHz
Outer Contact Resistance, maximum 1.5 mOhm
Peak Power, maximum 12.1 kW
RF Operating Voltage, maximum (vrms) 778 V
Shielding Effectiveness -110 dB

Return loss/vswr

Frequency band Vswr Return loss (db)
824–2200 MHz 1.041 33.94
2200–2700 MHz 1.041 33.94
3000–4000 MHz 1.036 35.05
4000–6000 MHz 1.173 21.98

Mechanical specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 449.27 N | 101.000 lbf
Coupling Nut Proof Torque 35 N-m | 309.776 in lb
Insertion Force 199.99 N | 44.960 lbf
Insertion Force Method IEC 61169-1:15.2.4
Interface Durability 500 cycles
Interface Durability Method IEC 61169-4:17
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Corrosion Test Method IEC 60068-2-11
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Moisture Resistance Test Method IEC 60068-2-3
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and weights

Weight, net 87.02 g | 0.192 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series LDF1-50

General specifications

Body Style Straight
Cable Family LDF1-50
Inner Contact Attachment Method Captivated
Inner Contact Plating Silver
Interface 7-16 DIN Female
Mounting Angle Straight
Outer Contact Attachment Method Self-flare
Outer Contact Plating Trimetal
Pressurizable No

Dimensions

Height 28.96 mm | 1.140 in
Width 28.96 mm | 1.140 in
Length 46.74 mm | 1.840 in
Diameter 28.96 mm | 1.140 in
Nominal Size 1/4 in

Electrical specifications

3rd Order IMD at Frequency -107 dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
Insertion Loss Coefficient, typical 0.05
Average Power at Frequency 0.6 kW @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 2200 V
Inner Contact Resistance, maximum 0.4 mOhm
Insulation Resistance, minimum 10000 mOhm
Operating Frequency Band 0 – 6000 MHz
Outer Contact Resistance, maximum 1.5 mOhm
Peak Power, maximum 12.1 kW
RF Operating Voltage, maximum (vrms) 778 V
Shielding Effectiveness -110 dB

Return loss/vswr

Frequency Band VSWR Return Loss (dB)
824–2200 MHz 1.041 33.94
2200–2700 MHz 1.041 33.94
3000–4000 MHz 1.036 35.05
4000–6000 MHz 1.173 21.98

Mechanical specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 449.27 N | 101.000 lbf
Coupling Nut Proof Torque 35 N-m | 309.776 in lb
Insertion Force 199.99 N | 44.960 lbf
Insertion Force Method IEC 61169-1:15.2.4
Interface Durability 500 cycles
Interface Durability Method IEC 61169-4:17
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Corrosion Test Method IEC 60068-2-11
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Moisture Resistance Test Method IEC 60068-2-3
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and weights

Weight, net 87.02 g | 0.192 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
