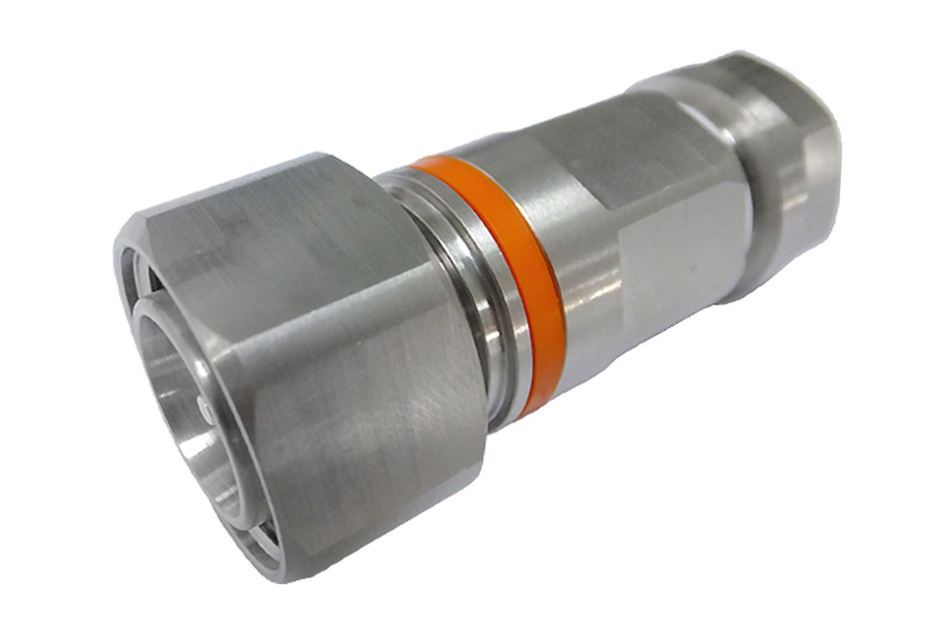

L2HM-D

4.3-10 Male for 3/8 in LDF2-50 cable

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series LDF2-50

General specifications

Body Style Straight
Cable Family LDF2-50
Inner Contact Attachment Method Captivated
Inner Contact Plating Silver
Interface 4.3-10 Male
Mounting Angle Straight
Outer Contact Attachment Method Self-flare
Outer Contact Plating Trimetal

Dimensions

Length 50.55 mm | 1.990 in
Diameter 23.88 mm | 0.940 in
Nominal Size 3/8 in

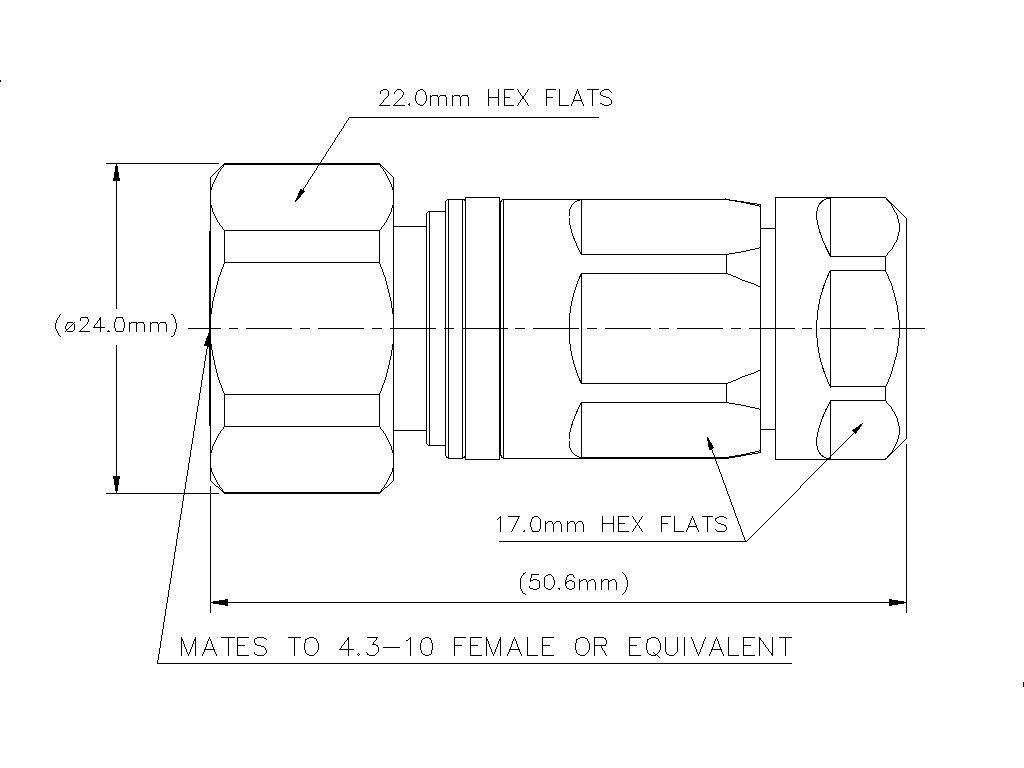

Outline drawing

Click on image to enlarge.

Electrical specifications

3rd Order IMD at Frequency -116 dBm @ 1800 MHz
3rd Order IMD Dynamic Test Method Two +43 dBm carriers
3rd Order IMD Dynamic, typical -116 dBm
Insertion Loss Coefficient, typical 0.05
Average Power at Frequency 700.0 W @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 2500 V
Inner Contact Resistance, maximum 0.8 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 6000 MHz
Outer Contact Resistance, maximum 1.5 mOhm
Peak Power, maximum 10 kW
RF Operating Voltage, maximum (vrms) 707 V
Shielding Effectiveness -110 dB

Return loss/vswr

Frequency band Vswr Return loss (db)
45–2700 MHz 1.041 33.94
2700–4000 MHz 1.052 31.92
4000–6000 MHz 1.106 25.96

Mechanical specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 671.68 N | 151.000 lbf
Connector Retention Torque 2.7 N-m | 23.897 in lb
Coupling Nut Proof Torque 10 N-m | 88.507 in lb
Coupling Nut Retention Force 669.99 N | 150.620 lbf
Interface Durability 100 cycles
Interface Durability Method IEC 61169-4:9.5
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Corrosion Test Method IEC 60068-2-11
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Moisture Resistance Test Method IEC 60068-2-3
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6
Water Jetting Test Mating Mated
Water Jetting Test Method IEC 60529:2001, IP66

Packaging and weights

Weight, net 75.96 g | 0.167 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
