CMAX-DMF-43-UW-I53

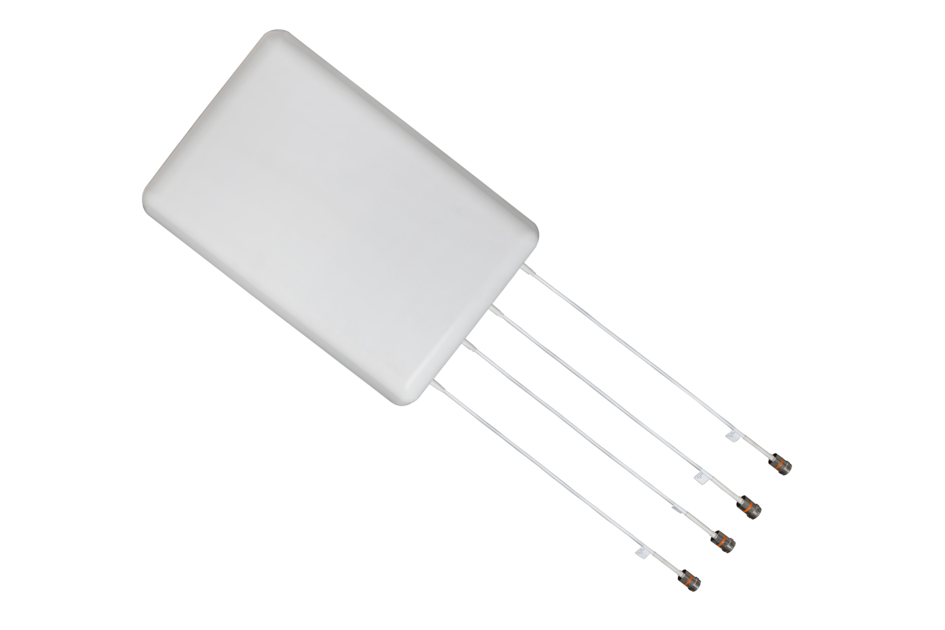

Low PIM Directional MIMO In-Building Antenna, 617–960 MHz, 1695–2700 MHz, 3300-4200MHz, and 4800-6000MHz 4.3-10, (2 PORTS 617-960 and 1695-2700MHz, 2 PORTS 3300-4200 and 4800-6000MHz)

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Specifications

Product classification

Product Type

In-building antenna

General specifications

Application	Indoor
Antenna Type	Directional
Antenna Array Characteristic	MIMO 2x2
Polarization	±45°
Color	White (RAL 9016)
Number of Ports	4
Pigtail Cable	670-141SXE, plenum rated
Radome Material	ASA+PC, UV stabilized
RF Connector Interface	4.3-10 Female

Dimensions

Height	120 mm \| 4.724 in
Width	310 mm \| 12.205 in
Length	450 mm \| 17.717 in
Pigtail Length	450 mm \| 17.717 in

Electrical specifications

Impedance	50 ohm
Operating Frequency Band	617 – 698 MHz \| 698 – 960 MHz \| 1695 – 2700 MHz \| 3300 – 4000 MHz \| 4800 – 6000 MHz
Electrical Note	Values typical, unless otherwise stated

Electrical specifications

Frequency Band, MHz	617–698	698–960	1695–2200	2200–2700	3300–4200	4800–6000
Gain, dBi	7.7	7.9	8.8	9.0	8.0	8.2
Beamwidth, Horizontal, degrees	75	73	62	64	64	62
Beamwidth, Vertical, degrees	72	66	57	64	65	61
Front-to-Back Ratio, Copolarization 180° ± 30°, dB	17	17	20	15	17	17
Isolation, Cross Polarization, dB	20	20	25	25	20	22
VSWR \| Return loss, dB	1.7 \| 11.7	1.6 \| 12.7	1.5 \| 14.0	1.5 \| 14.0	1.7 \| 11.7	1.7 \| 11.7
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153	-153
Input Power per Port, maximum, watts	100	100	100	100	100	100

Environmental specifications

Operating Temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Relative Humidity	Up to 100%

Packaging and weights

Height, packed	190 mm \| 7.48 in
Width, packed	340 mm \| 13.386 in
Length, packed	645 mm \| 25.394 in
Included	Mounting bracket
Weight, gross	4.6 kg \| 10.141 lb
Weight, net	3.1 kg \| 6.834 lb

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type

In-building antenna

General specifications

Application	Indoor
Antenna Type	Directional
Antenna Array Characteristic	MIMO 2x2
Polarization	±45°
Color	White (RAL 9016)
Number of Ports	4
Pigtail Cable	670-141SXE, plenum rated
Radome Material	ASA+PC, UV stabilized
RF Connector Interface	4.3-10 Female

Dimensions

Height	120 mm \| 4.724 in
Width	310 mm \| 12.205 in
Length	450 mm \| 17.717 in
Pigtail Length	450 mm \| 17.717 in

Electrical specifications

Impedance	50 ohm
Operating Frequency Band	617 – 698 MHz \| 698 – 960 MHz \| 1695 – 2700 MHz \| 3300 – 4000 MHz \| 4800 – 6000 MHz
Electrical Note	Values typical, unless otherwise stated

Electrical specifications

Frequency Band, MHz	617–698	698–960	1695–2200	2200–2700	3300–4200	4800–6000
Gain, dBi	7.7	7.9	8.8	9.0	8.0	8.2
Beamwidth, Horizontal, degrees	75	73	62	64	64	62
Beamwidth, Vertical, degrees	72	66	57	64	65	61
Front-to-Back Ratio, Copolarization 180° ± 30°, dB	17	17	20	15	17	17
Isolation, Cross Polarization, dB	20	20	25	25	20	22
VSWR \| Return loss, dB	1.7 \| 11.7	1.6 \| 12.7	1.5 \| 14.0	1.5 \| 14.0	1.7 \| 11.7	1.7 \| 11.7
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153	-153
Input Power per Port, maximum, watts	100	100	100	100	100	100

Environmental specifications

Operating Temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Relative Humidity	Up to 100%

Packaging and weights

Height, packed	190 mm \| 7.48 in
Width, packed	340 mm \| 13.386 in
Length, packed	645 mm \| 25.394 in
Included	Mounting bracket
Weight, gross	4.6 kg \| 10.141 lb
Weight, net	3.1 kg \| 6.834 lb

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
