CMAX-O-43-UW-I53-01
Base product: OMNI-ANTENNAS

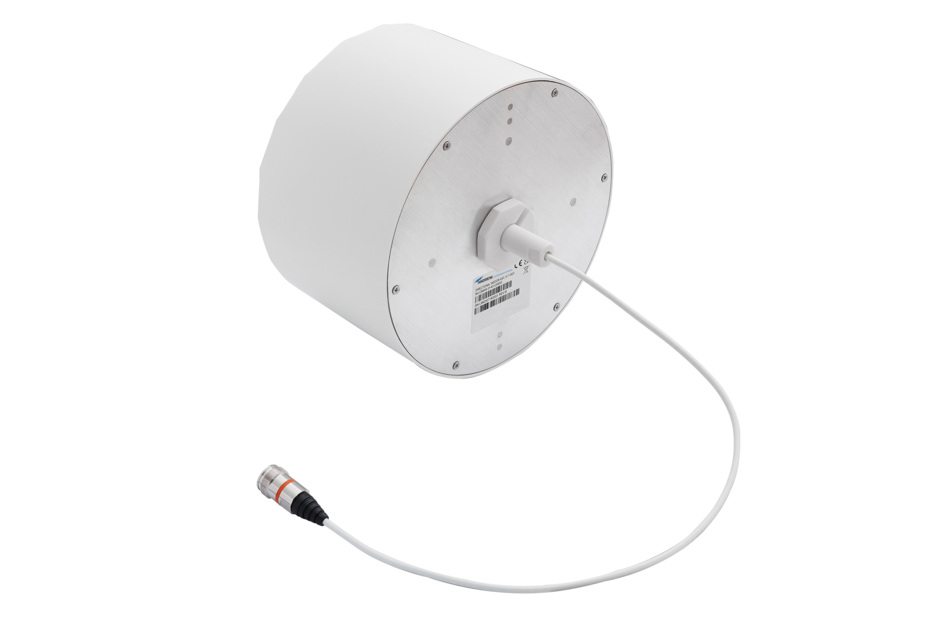

CMAX™ Low PIM Omni Indoor Antenna, 617–5925 MHz
Specifications
Product classification
| Product Type | In-building antenna |
| Product Brand | Cell-Max™ |
General specifications
| Application | Indoor |
| Antenna Type | Omni |
| Antenna Array Characteristic | SISO |
| Polarization | Vertical |
| Color | White (RAL 9016) |
| Mounting | Thru-hole ceiling mount (optional) |
| Number of Ports | 1 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ASA+PC, UV resistant |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 136 mm | 5.354 in |
| Pigtail Length | 500 mm | 19.685 in |
| Outer Diameter | 209 mm | 8.228 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 798 MHz | 798 – 960 MHz | 1400 – 1600 MHz | 1710 – 2700 MHz | 3300 – 4200 MHz | 5150 – 5925 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 617–798 | 798–960 | 1400–1600 | 1710–2700 | 3300–4200 | 5150–5925 |
| Gain, dBi | 3.0 | 4.0 | 5.6 | 5.0 | 6.1 | 7.1 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -153 | -153 | -153 | -153 | |
| Input Power per Port, maximum, watts | 100 | 100 | 100 | 100 | 100 |
Return loss/vswr
| Frequency band | Vswr, maximum | Return loss, maximum (db) | Vswr, mean | Return loss, mean (db) |
| 617–798 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
| 798–960 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
| 1400–1600 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
| 1710–2700 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
| 3300–4200 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
| 5150–5925 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
Packaging and weights
| Height, packed | 210 mm | 8.268 in |
| Width, packed | 220 mm | 8.661 in |
| Length, packed | 225 mm | 8.858 in |
| Packaging quantity | 1 |
| Weight, gross | 1 kg | 2.205 lb |
| Weight, net | 0.8 kg | 1.764 lb |
Product classification
| Product Type | In-building antenna |
| Product Brand | Cell-Max™ |
General specifications
| Application | Indoor |
| Antenna Type | Omni |
| Antenna Array Characteristic | SISO |
| Polarization | Vertical |
| Color | White (RAL 9016) |
| Mounting | Thru-hole ceiling mount (optional) |
| Number of Ports | 1 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ASA+PC, UV resistant |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 136 mm | 5.354 in |
| Pigtail Length | 500 mm | 19.685 in |
| Outer Diameter | 209 mm | 8.228 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 798 MHz | 798 – 960 MHz | 1400 – 1600 MHz | 1710 – 2700 MHz | 3300 – 4200 MHz | 5150 – 5925 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 617–798 | 798–960 | 1400–1600 | 1710–2700 | 3300–4200 | 5150–5925 |
| Gain, dBi | 3.0 | 4.0 | 5.6 | 5.0 | 6.1 | 7.1 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -153 | -153 | -153 | -153 | |
| Input Power per Port, maximum, watts | 100 | 100 | 100 | 100 | 100 |
Return loss/vswr
| Frequency Band | VSWR, Maximum | Return Loss, Maximum (dB) | VSWR, Mean | Return Loss, Mean (dB) |
| 617–798 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
| 798–960 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
| 1400–1600 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
| 1710–2700 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
| 3300–4200 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
| 5150–5925 MHz | 1.703 | 11.7 | 1.499 | 14.0 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
Packaging and weights
| Height, packed | 210 mm | 8.268 in |
| Width, packed | 220 mm | 8.661 in |
| Length, packed | 225 mm | 8.858 in |
| Packaging quantity | 1 |
| Weight, gross | 1 kg | 2.205 lb |
| Weight, net | 0.8 kg | 1.764 lb |
