H-4X4-UW-43-AI6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

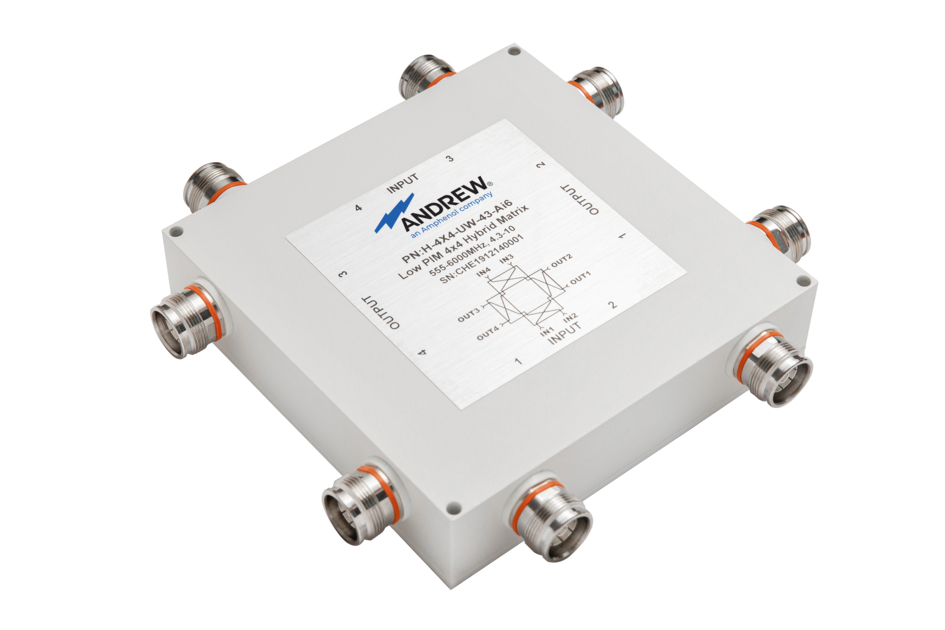

Low PIM 4x4 High Power Hybrid Matrix, 555–6000 MHz
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid matrix |
General specifications
| Device Type | Hybrid |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 32.3 mm | 1.272 in |
| Width | 182.6 mm | 7.189 in |
| Length | 182.6 mm | 7.189 in |
Electrical specifications
| 3rd Order IMD | -162 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss at Frequency Band | 17.7 dB @ 555–6000 MHz |
| Average Power, maximum | 100 W |
| Coupling | 6.2 dB |
| Coupling Tolerance | ±1.4dB @ 600–5950 MHz | ±2.0dB @ 555–600 MHz | ±2.0dB @ 5950–6000 MHz |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 19 dB @ 555–6000 MHz |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 100 W |
Environmental specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 45 mm | 1.772 in |
| Width, packed | 210 mm | 8.268 in |
| Length, packed | 210 mm | 8.268 in |
| Weight, gross | 1.77 kg | 3.902 lb |
| Weight, net | 1.64 kg | 3.616 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid matrix |
General specifications
| Device Type | Hybrid |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 32.3 mm | 1.272 in |
| Width | 182.6 mm | 7.189 in |
| Length | 182.6 mm | 7.189 in |
Electrical specifications
| 3rd Order IMD | -162 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss at Frequency Band | 17.7 dB @ 555–6000 MHz |
| Average Power, maximum | 100 W |
| Coupling | 6.2 dB |
| Coupling Tolerance | ±1.4dB @ 600–5950 MHz | ±2.0dB @ 555–600 MHz | ±2.0dB @ 5950–6000 MHz |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 19 dB @ 555–6000 MHz |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 100 W |
Environmental specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 45 mm | 1.772 in |
| Width, packed | 210 mm | 8.268 in |
| Length, packed | 210 mm | 8.268 in |
| Weight, gross | 1.77 kg | 3.902 lb |
| Weight, net | 1.64 kg | 3.616 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
