S-2-UW-H-NI6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

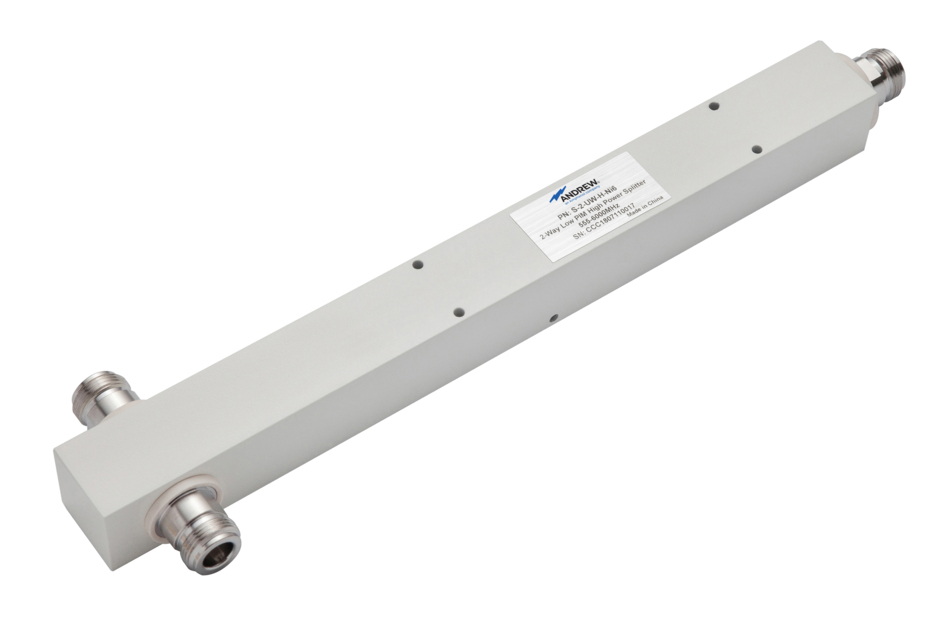

Ultra Wideband Two-way Low PIM Reactive High Power Splitter, 555–6000 MHz (Additional mounting bracket PN:42396A-17 sold separately)
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Power splitter |
General specifications
| Device Type | Splitter |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 25 mm | 0.984 in |
| Width | 61 mm | 2.402 in |
| Length | 267 mm | 10.512 in |
Electrical specifications
| 3rd Order IMD | -163 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.2 dB @ 555–2700 MHz | 0.3 dB @ 2700–6000 MHz |
| Return Loss, minimum | 19.1 dB |
| Average Power, maximum | 300 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 3 kW |
| Power Rating, Splitting | 300 W |
| Reflected Power, maximum | 300 W |
| Split Loss | 3 dB |
| VSWR | 1.25 |
Environmental specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 42 mm | 1.654 in |
| Width, packed | 77 mm | 3.031 in |
| Length, packed | 315 mm | 12.402 in |
| Weight, gross | 0.5 kg | 1.102 lb |
| Weight, net | 0.42 kg | 0.926 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Power splitter |
General specifications
| Device Type | Splitter |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 25 mm | 0.984 in |
| Width | 61 mm | 2.402 in |
| Length | 267 mm | 10.512 in |
Electrical specifications
| 3rd Order IMD | -163 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.2 dB @ 555–2700 MHz | 0.3 dB @ 2700–6000 MHz |
| Return Loss, minimum | 19.1 dB |
| Average Power, maximum | 300 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 3 kW |
| Power Rating, Splitting | 300 W |
| Reflected Power, maximum | 300 W |
| Split Loss | 3 dB |
| VSWR | 1.25 |
Environmental specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 42 mm | 1.654 in |
| Width, packed | 77 mm | 3.031 in |
| Length, packed | 315 mm | 12.402 in |
| Weight, gross | 0.5 kg | 1.102 lb |
| Weight, net | 0.42 kg | 0.926 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
