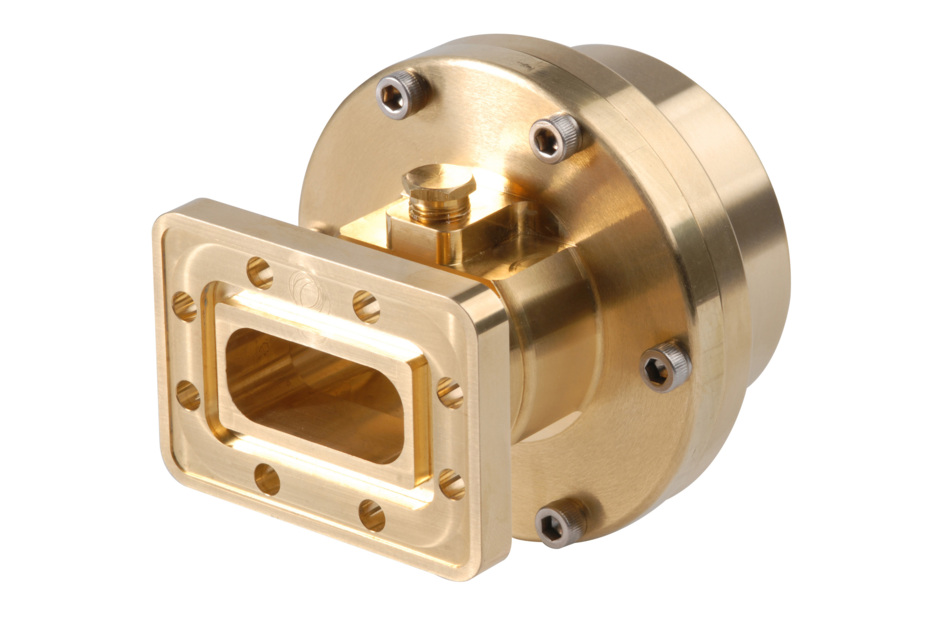

163SEM

Base product: WAVEGUIDE-CONNECTORS

Fixed-tuned PDR70 for elliptical waveguide 63

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Elliptical waveguide connector

General specifications

Attachment Method Tab-flare | Tool-flare
Body Style Straight, fixed-tuned
Inner Contact Plating Unplated
Interface PDR70
Outer Contact Plating Unplated
Pressurizable Yes

Dimensions

Width 85.852 mm | 3.38 in
Length 85.344 mm | 3.36 in
Transition Length 52.832 mm | 2.08 in
Waveguide Size WR137 | WG14 | R70

Electrical specifications

Insertion Loss, typical 0.01 dB
Operating Frequency Band 5.725 – 7.125 GHz
Peak Power at Frequency, maximum 102.00 kW @ 6.78 GHz

Material specifications

Material Type Brass

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)

Packaging and weights

Weight, net 1.7 kg | 3.748 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Elliptical waveguide connector

General specifications

Attachment Method Tab-flare | Tool-flare
Body Style Straight, fixed-tuned
Inner Contact Plating Unplated
Interface PDR70
Outer Contact Plating Unplated
Pressurizable Yes

Dimensions

Width 85.852 mm | 3.38 in
Length 85.344 mm | 3.36 in
Transition Length 52.832 mm | 2.08 in
Waveguide Size WR137 | WG14 | R70

Electrical specifications

Insertion Loss, typical 0.01 dB
Operating Frequency Band 5.725 – 7.125 GHz
Peak Power at Frequency, maximum 102.00 kW @ 6.78 GHz

Material specifications

Material Type Brass

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)

Packaging and weights

Weight, net 1.7 kg | 3.748 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
