HR150
Heat Regenerated Dehydrator, 19 in rack mountable, 3.0 kPa (0.44 psig), with summary alarms, 48 Vdc (ac operation possible using optional power supply purchased separately)
Specifications
Product classification
| Product Type | Dehydrator |
General specifications
| Alarm Type | Summary |
| Cut In/Out Pressure Type | Continuous (default set to 3.0 kPa | 0.4 psig) |
| Dehydrator Type | Automatically regenerating Desiccant |
| Dew Point | Better than -45 °C (-50 °F) at 95% RH at +40 °C (+104 °F) |
| Flow Rate, nominal | 2.5 SLPM |
| High-Pressure Alarm | Factory set (default set to 4.5 kPa | 0.7 psig) |
| Low-Pressure Alarm | Factory set (default set to 1.5 kPa | 0.22 psig) |
| Mounting | Rack |
| Port Count | 4 |
| Port Type | 3/8 in PE tube |
| Power Cord | dc power cord |
| Rack Type | EIA 19 in | ETSI N3 (optional) |
| Rack Units | 2 |
| Regulated Output Pressure Type | Factory set, continuous |
Dimensions
| Product Height | 91.8 mm | 3.614 in |
| Product Width | 439.4 mm | 17.299 in |
| Product Depth | 190.5 mm | 7.5 in |
| Volume Capacity, maximum | 0.6 m³ | 21.189 ft³ |

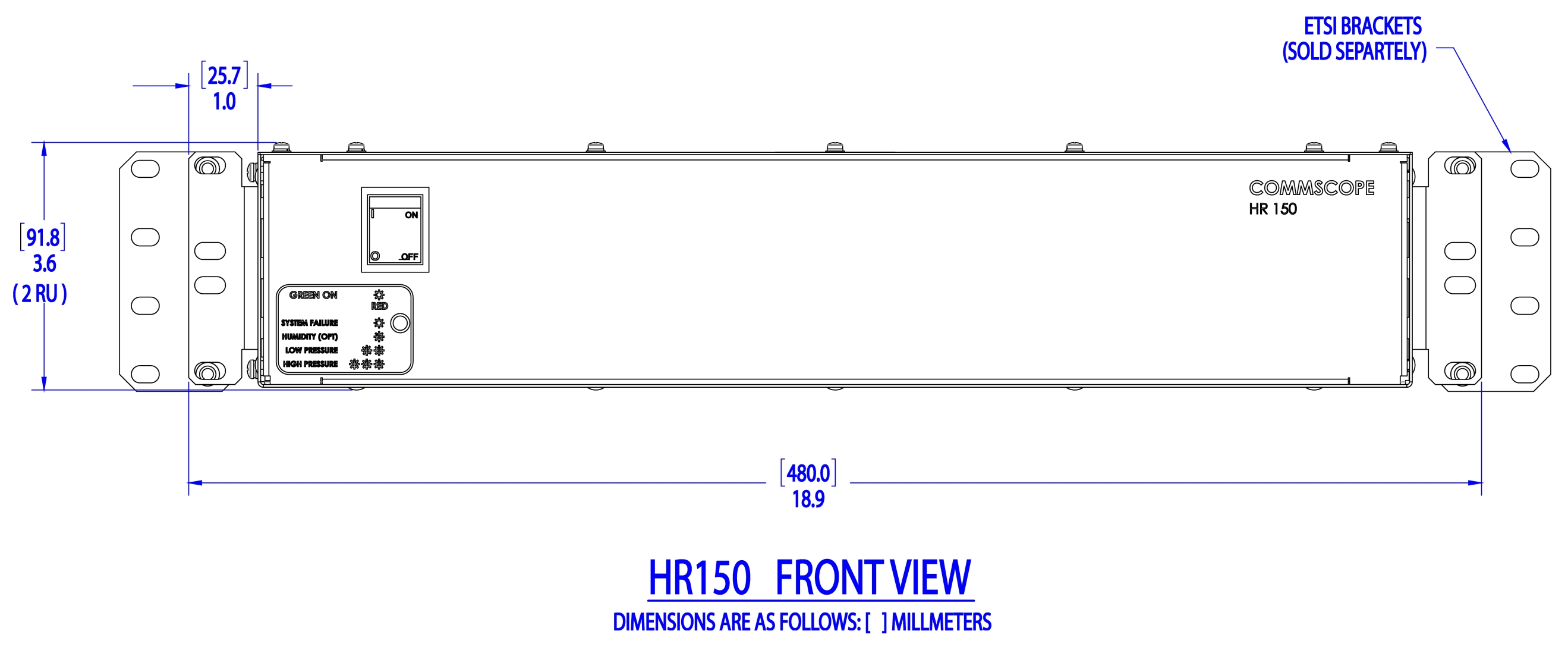

Outline drawing–front
| Click on image to enlarge. |
Outline drawing–side
| Click on image to enlarge. |

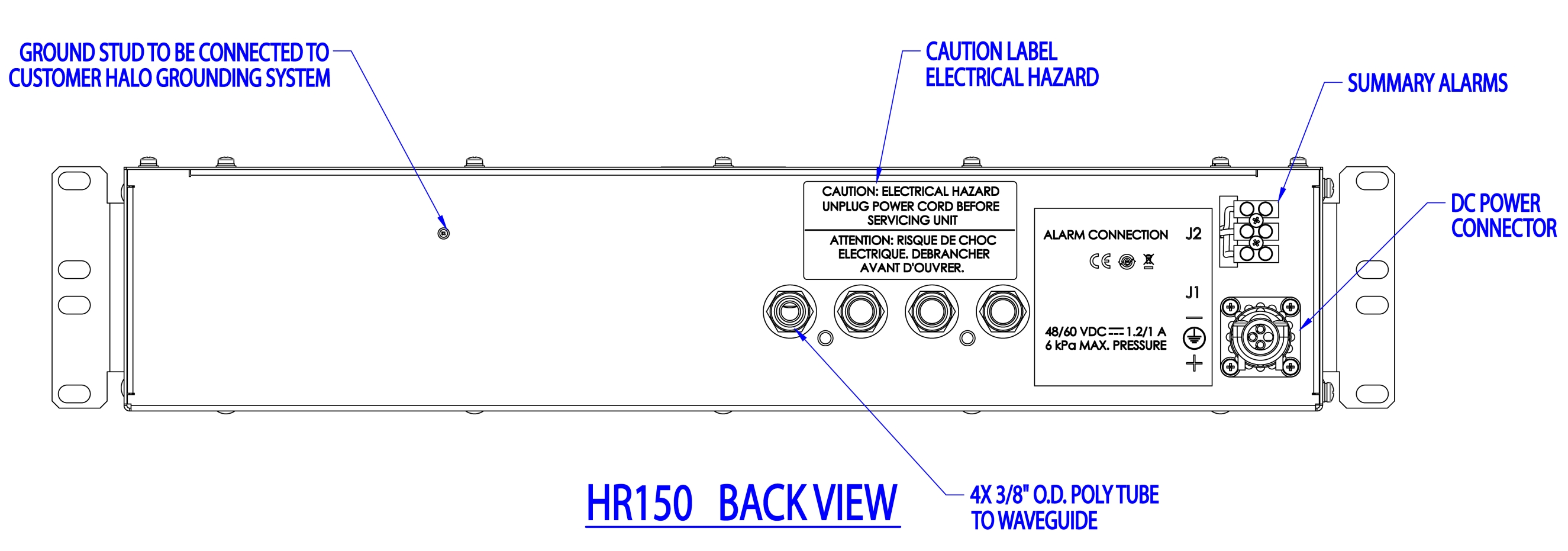

Outline drawing–back
| Click on image to enlarge. |

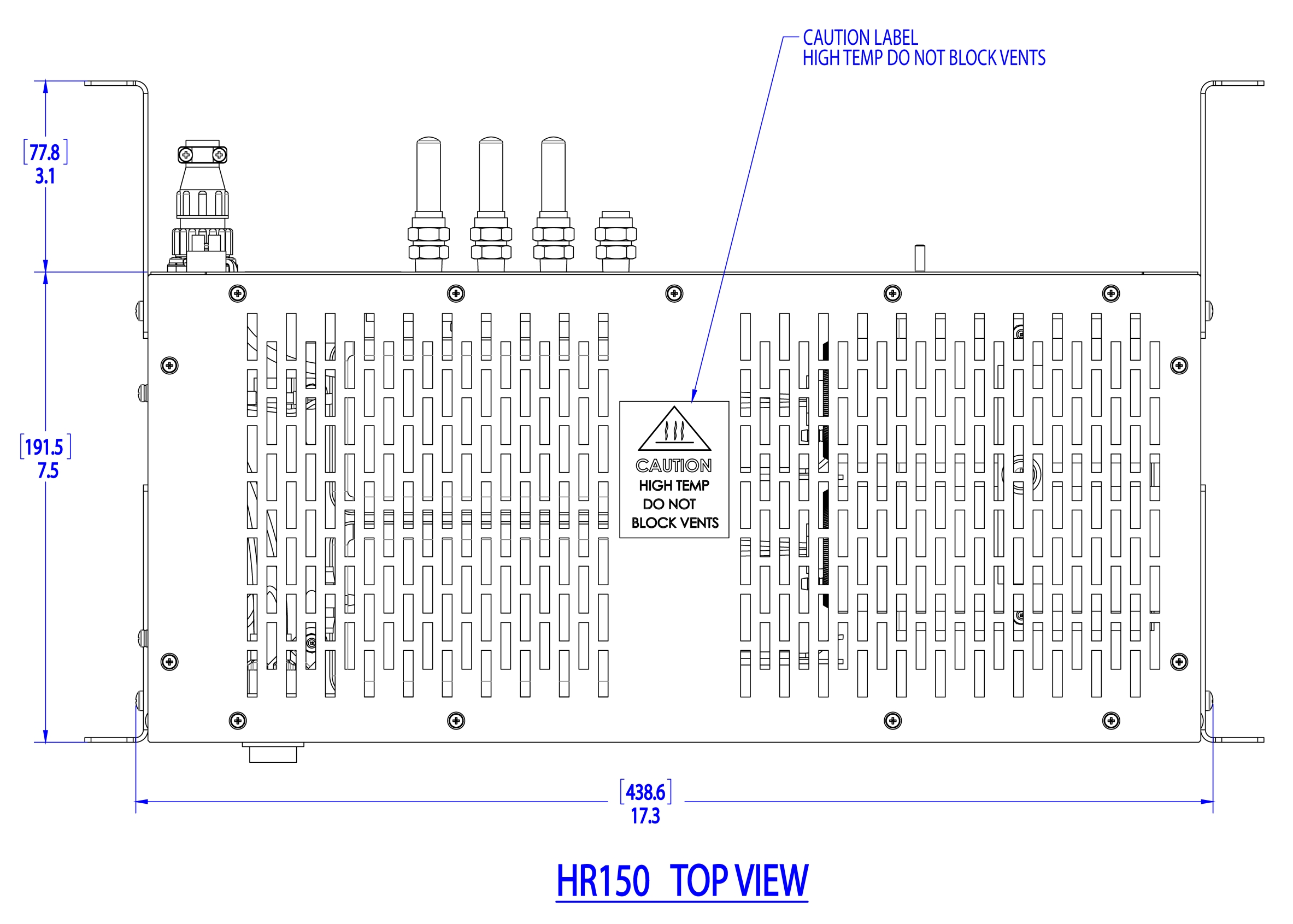

Outline drawing–top
| Click on image to enlarge. |
Electrical specifications
| Alarm Contact Rating | Handles at least 0.5 A (ac or dc) |
| Power Consumption, maximum | 45 W |
| Voltage | 48–60 Vdc ±10% |
| Voltage Type | dc |
Environmental specifications
| Operating Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
Packaging and weights
| Weight, gross | 9.6 kg | 21.164 lb |
| Weight, net | 4.8 kg | 10.582 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Dehydrator |
General specifications
| Alarm Type | Summary |
| Cut In/Out Pressure Type | Continuous (default set to 3.0 kPa | 0.4 psig) |
| Dehydrator Type | Automatically regenerating Desiccant |
| Dew Point | Better than -45 °C (-50 °F) at 95% RH at +40 °C (+104 °F) |
| Flow Rate, nominal | 2.5 SLPM |
| High-Pressure Alarm | Factory set (default set to 4.5 kPa | 0.7 psig) |
| Low-Pressure Alarm | Factory set (default set to 1.5 kPa | 0.22 psig) |
| Mounting | Rack |
| Port Count | 4 |
| Port Type | 3/8 in PE tube |
| Power Cord | dc power cord |
| Rack Type | EIA 19 in | ETSI N3 (optional) |
| Rack Units | 2 |
| Regulated Output Pressure Type | Factory set, continuous |
Dimensions
| Product Height | 91.8 mm | 3.614 in |
| Product Width | 439.4 mm | 17.299 in |
| Product Depth | 190.5 mm | 7.5 in |
| Volume Capacity, maximum | 0.6 m³ | 21.189 ft³ |
Electrical specifications
| Alarm Contact Rating | Handles at least 0.5 A (ac or dc) |
| Power Consumption, maximum | 45 W |
| Voltage | 48–60 Vdc ±10% |
| Voltage Type | dc |
Environmental specifications
| Operating Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
Packaging and weights
| Weight, gross | 9.6 kg | 21.164 lb |
| Weight, net | 4.8 kg | 10.582 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
