WAVEGUIDE-PRESSURE-WINDOW
Base product

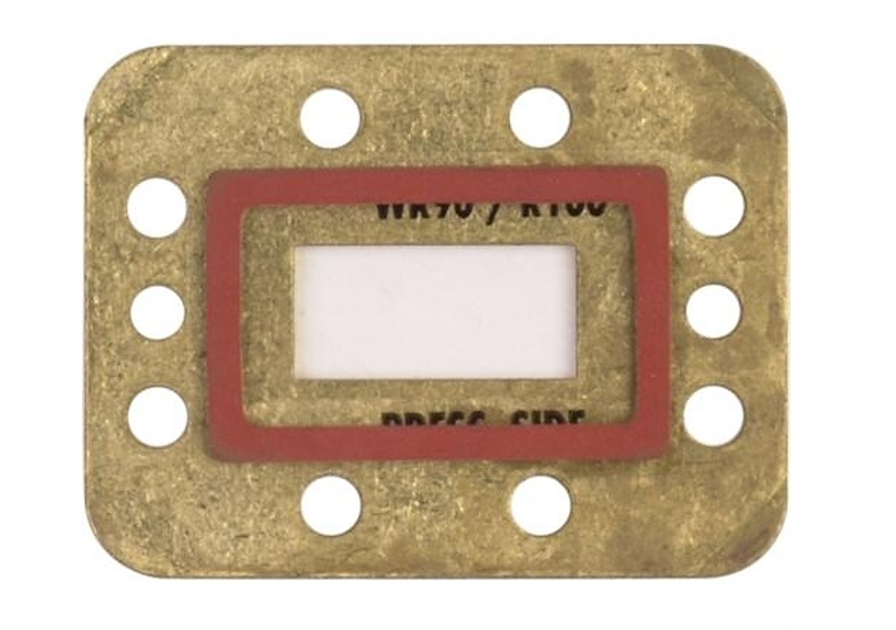

Pressure Window Waveguide
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and benefits
ANDREW offers a complete selection of microwave connectivity accessories to optimize your backhaul installation and performance.
Pressure windows provide separation between components that require pressurization from those that do not require it; typically installed at the equipment room end of the feeder line in a controlled environment.
Pressure windows provide separation between components that require pressurization from those that do not require it; typically installed at the equipment room end of the feeder line in a controlled environment.
Specifications
Product classification
| Product Type | Rectangular waveguide, pressure window |
General specifications
| Interface | CPR112F | CPR137F | CPR159F | CPR187F | CPR229F | CPR90F | UBR120 | UBR140 | UBR220 | UBR320 | UBR84 | UDR100 | UDR120 | UDR140 | UDR180 | UDR40 | UDR48 | UDR70 | UDR84 | UG-149A/U | UG-344/U | UG-39/U | UG-419/U | UG-51/U | UG-595/U |
| Mates to Interface | CPR112G | CPR137G | CPR159G | CPR187G | CPR229G | CPR90G | PBR120 | PBR140 | PBR220 | PBR320 | PBR84 | PDR100 | PDR120 | PDR140 | PDR180 | PDR40 | PDR48 | PDR70 | PDR84 | UG-148C/U | UG-343B/U | UG-40B/U | UG-52B/U | UG-541A/U | UG-596A/U |
Dimensions
| Waveguide Size | WR112 | WG15 | R84 | WR137 | WG14 | R70 | WR159 | WG13 | R58 | WR187 | WG12 | R48 | WR229 | WG11 | R40 | WR28 | WG22 | R320 | WR42 | WG20 | R220 | WR51 | WG19 | R180 | WR62 | WG18 | R140 | WR75 | WG17 | R120 | WR90 | WG16 | R100 |
Electrical specifications
| Operating Frequency Band | 10.0 – 15.0 GHz | 12.4 – 18.0 GHz | 15.0 – 22.0 GHz | 17.7 – 26.5 GHz | 26.5 – 40.1 GHz | 3.3 – 4.9 GHz | 3.95 – 5.85 GHz | 4.9 – 7.05 GHz | 5.85 – 8.2 GHz | 7.05 – 10.0 GHz | 8.2 – 12.4 GHz |
Product classification
| Product Type | Rectangular waveguide, pressure window |
General specifications
| Interface | CPR112F | CPR137F | CPR159F | CPR187F | CPR229F | CPR90F | UBR120 | UBR140 | UBR220 | UBR320 | UBR84 | UDR100 | UDR120 | UDR140 | UDR180 | UDR40 | UDR48 | UDR70 | UDR84 | UG-149A/U | UG-344/U | UG-39/U | UG-419/U | UG-51/U | UG-595/U |
| Mates to Interface | CPR112G | CPR137G | CPR159G | CPR187G | CPR229G | CPR90G | PBR120 | PBR140 | PBR220 | PBR320 | PBR84 | PDR100 | PDR120 | PDR140 | PDR180 | PDR40 | PDR48 | PDR70 | PDR84 | UG-148C/U | UG-343B/U | UG-40B/U | UG-52B/U | UG-541A/U | UG-596A/U |
Dimensions
| Waveguide Size | WR112 | WG15 | R84 | WR137 | WG14 | R70 | WR159 | WG13 | R58 | WR187 | WG12 | R48 | WR229 | WG11 | R40 | WR28 | WG22 | R320 | WR42 | WG20 | R220 | WR51 | WG19 | R180 | WR62 | WG18 | R140 | WR75 | WG17 | R120 | WR90 | WG16 | R100 |
Electrical specifications
| Operating Frequency Band | 10.0 – 15.0 GHz | 12.4 – 18.0 GHz | 15.0 – 22.0 GHz | 17.7 – 26.5 GHz | 26.5 – 40.1 GHz | 3.3 – 4.9 GHz | 3.95 – 5.85 GHz | 4.9 – 7.05 GHz | 5.85 – 8.2 GHz | 7.05 – 10.0 GHz | 8.2 – 12.4 GHz |
