A-100606

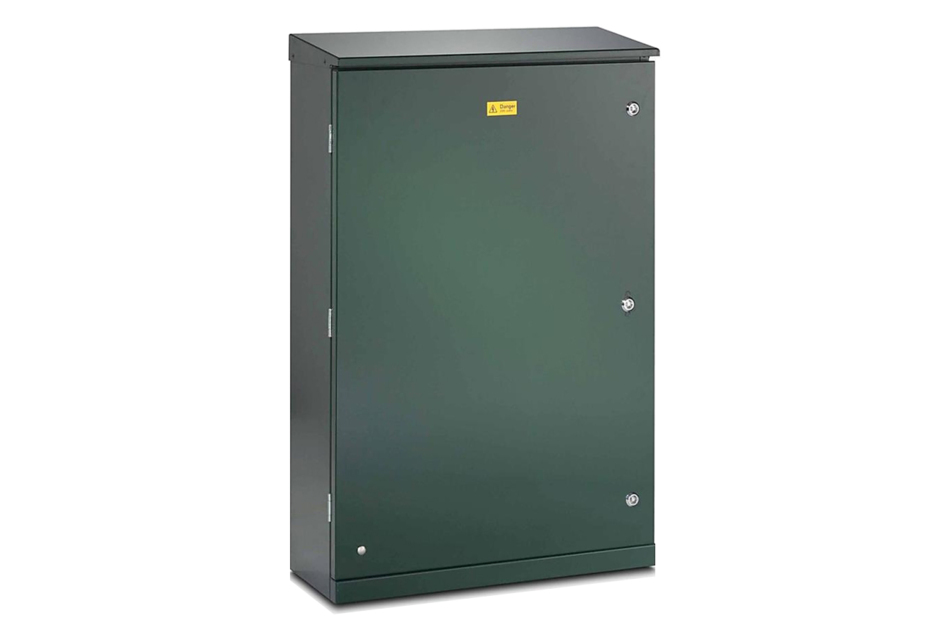

Meter Cabinet, empty
Features and benefits
- Sealed to outside environment
- Double wall construction
Specifications
Product classification
| Product Type | Power supply enclosure |
General specifications
| Access | Front door |
| Accessories | Cable plate | In-ground root | Plinth |
| Batteries Supported | 0 |
| Batteries Supported, with optional battery pedestal | 0 |
| Cabinet Type | Meter cabinet |
| Color | Green | Green (RAL 6009) | Light Gray (RAL 7035) | Others available at additional cost |
| Door Security | 7 mm triangle lock |
| Internal Mounting Surface | 12 mm plywood backboard |
Dimensions
| Height | 1016 mm | 40 in |
| Width | 660.4 mm | 26 in |
| Depth | 254 mm | 10 in |
| Depth, without door | 254 mm | 10 in |
Electrical specifications
| ac Feeds, Outgoing, quantity | 0 |
| Generator Connection | No connection |
Material specifications
| Finish | Powder coated |
| Material Type | Galvanized steel |
Packaging and weights
| Weight, net | 35.834 kg | 79 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Power supply enclosure |
General specifications
| Access | Front door |
| Accessories | Cable plate | In-ground root | Plinth |
| Batteries Supported | 0 |
| Batteries Supported, with optional battery pedestal | 0 |
| Cabinet Type | Meter cabinet |
| Color | Green | Green (RAL 6009) | Light Gray (RAL 7035) | Others available at additional cost |
| Door Security | 7 mm triangle lock |
| Internal Mounting Surface | 12 mm plywood backboard |
Dimensions
| Height | 1016 mm | 40 in |
| Width | 660.4 mm | 26 in |
| Depth | 254 mm | 10 in |
| Depth, without door | 254 mm | 10 in |
Electrical specifications
| ac Feeds, Outgoing, quantity | 0 |
| Generator Connection | No connection |
Material specifications
| Finish | Powder coated |
| Material Type | Galvanized steel |
Packaging and weights
| Weight, net | 35.834 kg | 79 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
