PS-CONV-48-24
PowerShift Power Supply, 48/24V DC 20A Converter panel, 19/23 in, 1 RU high, with four 24V DC GMT fuse outputs.
Features and benefits
- 48 VDC to +24 VDC power converter
- 19 & 23 inch rack mountable
- Compact 1RU height
- (1) -48 VDC Input and (4) +24VDC GMT Fuse Outputs
- NO/NC dry contact alarming
- LED status lights: Green - Power On / Red - Alarm indicator
- Power Input/Output Connect – Plug and Play
- 1RU form factor saves rack space and power in wiring closets
- Universal shelf mounting brackets for 19 inch, 23 inch or ETSI frame mounting
Specifications
Product classification
| Product Type | DC/DC Converter |
| Product Brand | PowerShift® |
General specifications
| Color | Light Gray (RAL 7035) |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
Dimensions
| Height | 44.450 mm | 1.75 in |
| Width | 438.150 mm | 17.25 in |
| Depth | 177.800 mm | 7 in |
Electrical specifications
| Input Current, nominal | 12.5 A |
| Input Voltage Range | -40 to -58 Vdc |
| Input Voltage, nominal | -48 Vdc |
| Output Current Range | 0–20 A |
| Output Current, nominal, dc | 5 A |
| Output Power Connections, quantity | 4 |
| Output Voltage, nominal | 24 Vdc |
| Power Efficiency | 90 % |

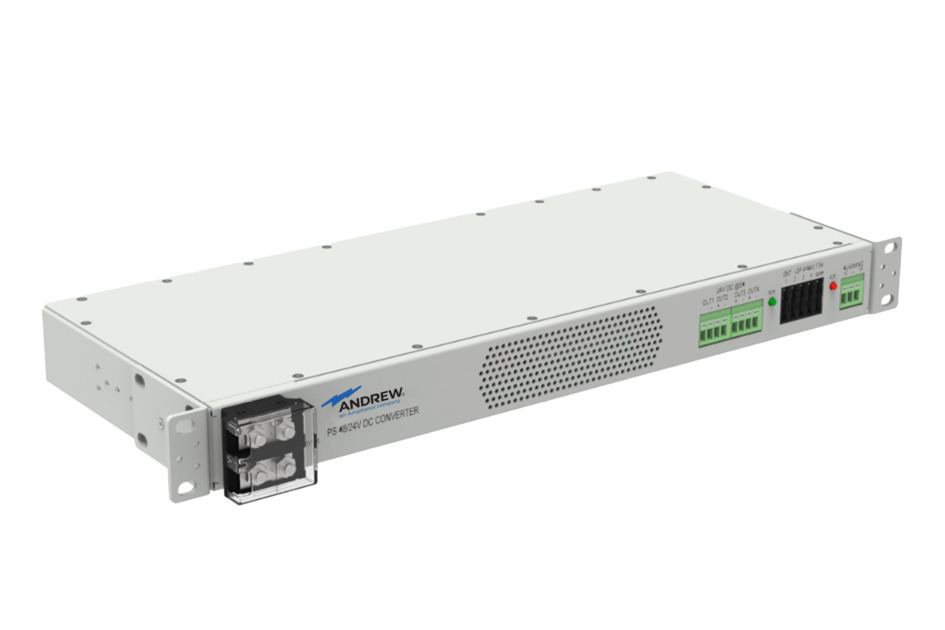

Representative image
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Relative Humidity | 0%–95%, non-condensing |
Packaging and weights
| Weight, net | 2.903 kg | 6.4 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | DC/DC Converter |
| Product Brand | PowerShift® |
General specifications
| Color | Light Gray (RAL 7035) |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
Dimensions
| Height | 44.450 mm | 1.75 in |
| Width | 438.150 mm | 17.25 in |
| Depth | 177.800 mm | 7 in |
Electrical specifications
| Input Current, nominal | 12.5 A |
| Input Voltage Range | -40 to -58 Vdc |
| Input Voltage, nominal | -48 Vdc |
| Output Current Range | 0–20 A |
| Output Current, nominal, dc | 5 A |
| Output Power Connections, quantity | 4 |
| Output Voltage, nominal | 24 Vdc |
| Power Efficiency | 90 % |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Relative Humidity | 0%–95%, non-condensing |
Packaging and weights
| Weight, net | 2.903 kg | 6.4 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
