CBC4W26-DS-43 | E14F05P87

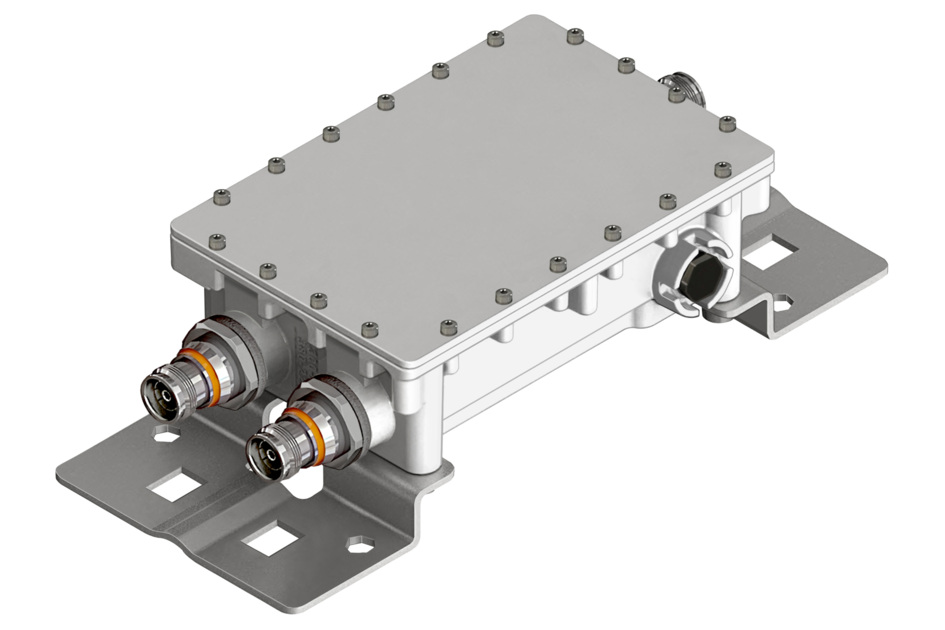

Diplexer, 380–2200 MHz/2300–2690 MHz, DCauto, with 4.3-10 connectors
Features and benefits
- Industry leading PIM performance
- New 4.3-10 connectors for improved PIM performance and size reduction
- Designed for network modernization application, introduction of LTE2300 and LTE2600 on existing site
- Minimal Insertion Loss
- Ultra-wideband low-band combiner
- Ultra-wideband high-band combiner
- DC/AISG SMART bypass functionality
- Single configuration
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Common Port Label | ANT |
| Modularity | 1-Single |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 183 mm | 7.205 in |
| Width | 121 mm | 4.764 in |
| Depth | 59 mm | 2.323 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
| Mounting Pipe Diameter Range | 40–160 mm |

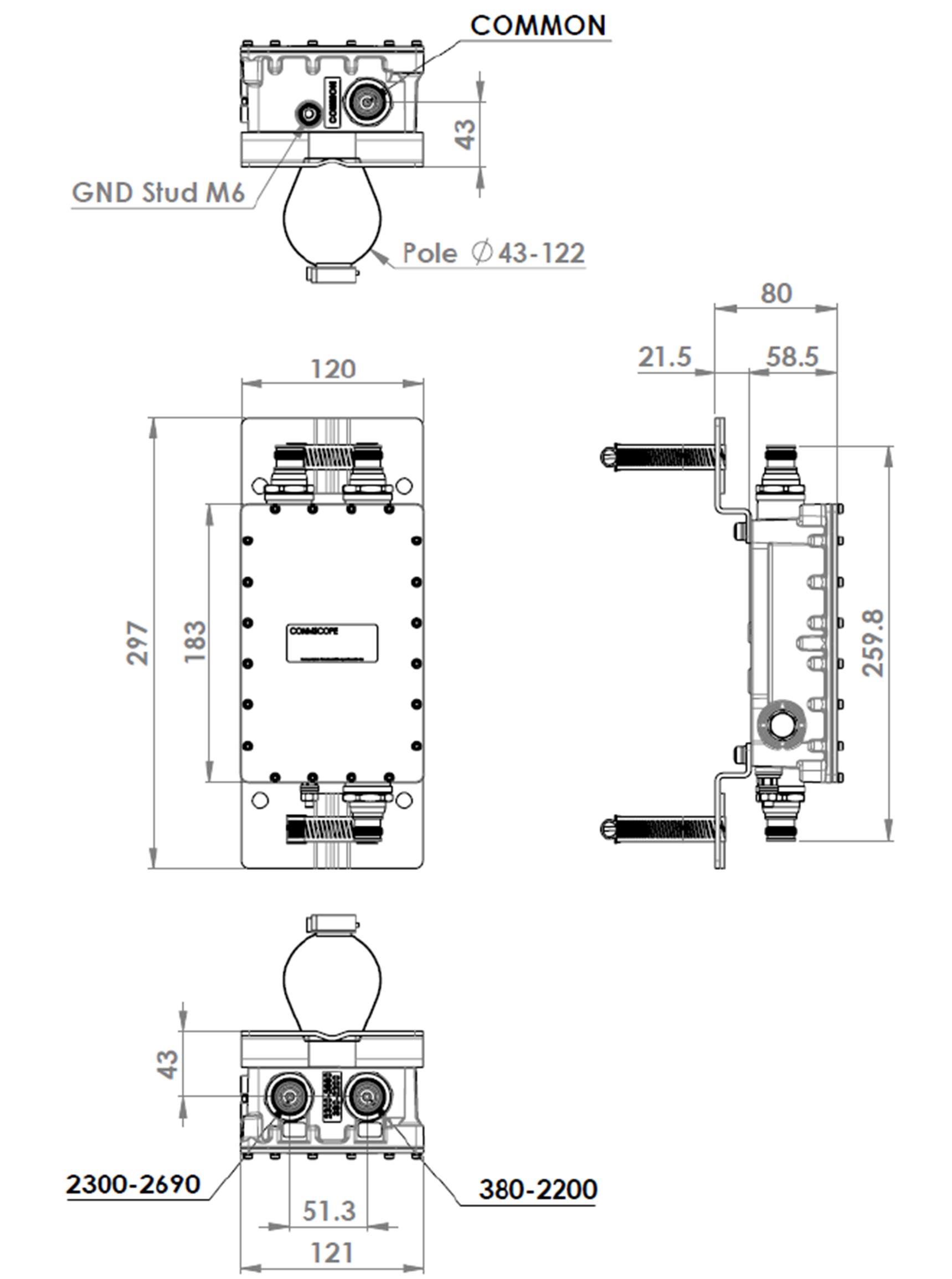

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through, combiner | dc Smart Bypass |
| dc/AISG Pass-through, demultiplexer | dc Smart Bypass |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | PORT 1 380-2200 | PORT 2 2300-2690 |
| License Band | APT 700, Band Pass CEL 850, Band Pass CEL 900, Band Pass DCS 1800, Band Pass EDD 800, Band Pass IMT 2100, Band Pass LMR 750, Band Pass LMR 800, Band Pass LMR 900, Band Pass TDD 1900, Band Pass USA 700, Band Pass USA 750, Band Pass | IMT 2600, Band Pass TDD 2300, Band Pass TDD 2600, Band Pass WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 380–2200 | 2300–2690 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Total Group Delay, maximum, ns | 8 | 13 |
| Return Loss, typical, dB | 20 | 22 |
| Isolation, minimum, dB | 50 | 50 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 |
| 3rd Order PIM, typical, dBc | -161 | -161 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |

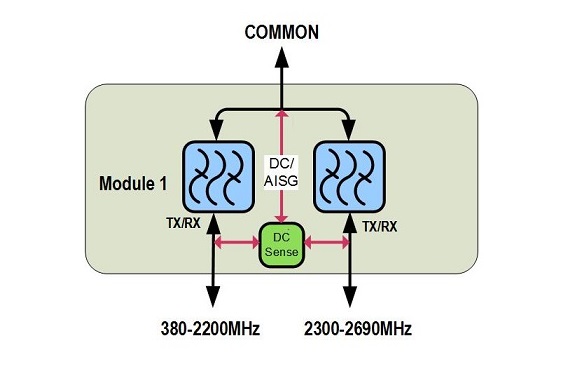

Block diagram
| Click on image to enlarge. |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 32.0 N @ 150 km/h (7.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 13.0 N @ 150 km/h (2.9 lbf @ 150 km/h) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 1.3 L |
| Weight, net | 2.5 kg | 5.512 lb |
| Weight, without mounting hardware | 2 kg | 4.409 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Common Port Label | ANT |
| Modularity | 1-Single |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 183 mm | 7.205 in |
| Width | 121 mm | 4.764 in |
| Depth | 59 mm | 2.323 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
| Mounting Pipe Diameter Range | 40–160 mm |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through, combiner | dc Smart Bypass |
| dc/AISG Pass-through, demultiplexer | dc Smart Bypass |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | PORT 1 380-2200 | PORT 2 2300-2690 |
| License Band | APT 700, Band Pass; CEL 850, Band Pass; CEL 900, Band Pass; DCS 1800, Band Pass; EDD 800, Band Pass; IMT 2100, Band Pass; LMR 750, Band Pass; LMR 800, Band Pass; LMR 900, Band Pass; TDD 1900, Band Pass; USA 700, Band Pass; USA 750, Band Pass | IMT 2600, Band Pass; TDD 2300, Band Pass; TDD 2600, Band Pass; WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 380–2200 | 2300–2690 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Total Group Delay, maximum, ns | 8 | 13 |
| Return Loss, typical, dB | 20 | 22 |
| Isolation, minimum, dB | 50 | 50 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 |
| 3rd Order PIM, typical, dBc | -161 | -161 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 32.0 N @ 150 km/h (7.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 13.0 N @ 150 km/h (2.9 lbf @ 150 km/h) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 1.3 L |
| Weight, net | 2.5 kg | 5.512 lb |
| Weight, without mounting hardware | 2 kg | 4.409 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
