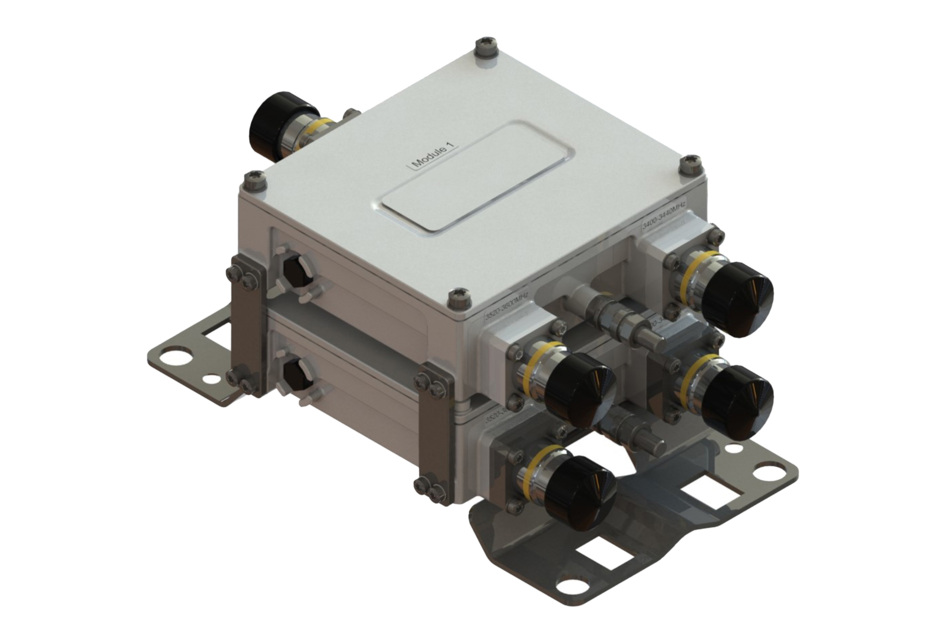

E14F06P25
Ultra Compact Twin Diplexer 3400-3440MHz/3520-3600MHz, DC bypass on Low band, 4.3-10 connectors
Features and benefits
- New Combining Solution to introduce 5G, 3.5GHz band
- Suitable for space limited applications like Metro Cell, Lamp Pole, Concealment Solution and Macro Site
- Compact form factor with reduced size and weight
- Ideal for small cell applications
- New 4.3-10 connectors for improved PIM performance and size reduction
- dc/AISG pass-through on low frequency ports
- Twin configuration
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Connector Interface | 4.3-10 Female |
| Modularity | 2-Twin |
| Mounting Pipe Hardware | Band clamps (2) |
Dimensions
| Height | 100.5 mm | 3.957 in |
| Width | 77 mm | 3.031 in |
| Depth | 115 mm | 4.528 in |

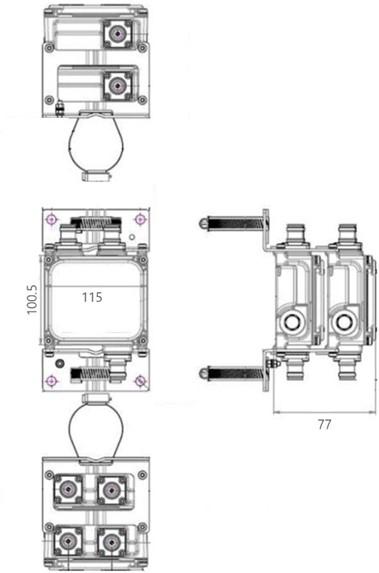

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| License Band, Band Pass | TDD 3500 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 |
| dc/AISG Pass-through, demultiplexer | Branch 1 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | 3400-3440 | 3520-3600 |
| License Band | TDD 3500, Band Pass | TDD 3500, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 3400–3440 | 3520–3600 |
| Insertion Loss, typical, dB | 0.40 | 0.40 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, typical, dB | 55 | 55 |
| Input Power, RMS, maximum, W | 100 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 |
| 3rd Order PIM, typical, dBc | -155 | -155 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |

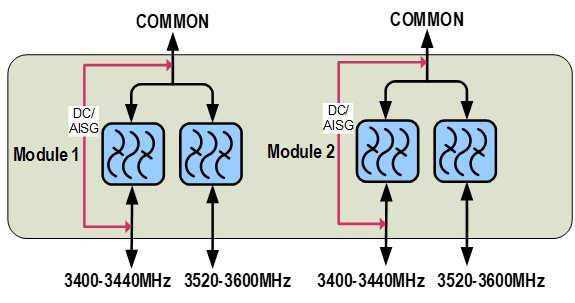

Block diagram
| Click on image to enlarge. |
Mechanical specifications
| Wind Speed, maximum | 241 km/h (150 mph) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 0.85 L |
| Weight, net | 1.8 kg | 3.968 lb |
| Weight, without mounting hardware | 1.6 kg | 3.527 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Connector Interface | 4.3-10 Female |
| Modularity | 2-Twin |
| Mounting Pipe Hardware | Band clamps (2) |
Dimensions
| Height | 100.5 mm | 3.957 in |
| Width | 77 mm | 3.031 in |
| Depth | 115 mm | 4.528 in |
Electrical specifications
| License Band, Band Pass | TDD 3500 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 |
| dc/AISG Pass-through, demultiplexer | Branch 1 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | 3400-3440 | 3520-3600 |
| License Band | TDD 3500, Band Pass | TDD 3500, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 3400–3440 | 3520–3600 |
| Insertion Loss, typical, dB | 0.40 | 0.40 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, typical, dB | 55 | 55 |
| Input Power, RMS, maximum, W | 100 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 |
| 3rd Order PIM, typical, dBc | -155 | -155 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones |
Mechanical specifications
| Wind Speed, maximum | 241 km/h (150 mph) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 0.85 L |
| Weight, net | 1.8 kg | 3.968 lb |
| Weight, without mounting hardware | 1.6 kg | 3.527 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
