E14F06P70

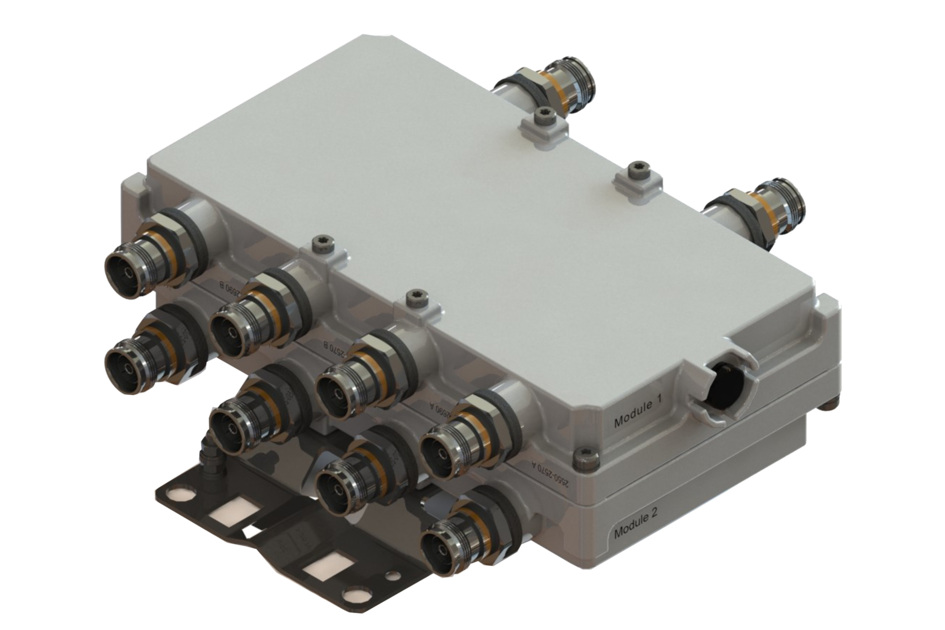

Ultra Compact Quad Diplexer, 2550–2570/2670–2690 MHz, DC Block, with 4.3-10 connectors
Features and benefits
- Industry leading PIM performance
- New 4.3-10 connectors for improved PIM performance and size reduction
- dc/AISG blocking on all ports
- Compact form factor with reduced size and weight
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 4-Quad |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 131 mm | 5.157 in |
| Width | 68 mm | 2.677 in |
| Depth | 236 mm | 9.291 in |
| Mounting Pipe Diameter Range | 43–122 mm |

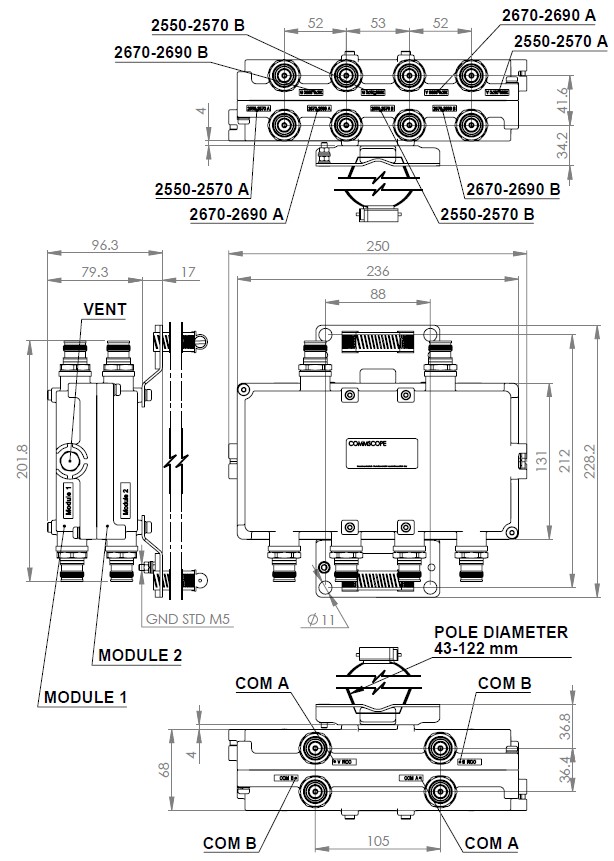

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | No dc/AISG pass-through |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | PORT 1 2550-2570 | PORT 2 2670-2690 |
Electrical specifications, band pass
| Frequency Range, MHz | 2550–2570 | 2670–2690 |
| Insertion Loss, typical, dB | 0.15 | 0.15 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, typical, dB | 45 | 45 |
| Input Power, RMS, maximum, W | 100 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 2.1 L |
| Weight, net | 3.6 kg | 7.937 lb |
| Weight, without mounting hardware | 3.4 kg | 7.496 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 4-Quad |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 131 mm | 5.157 in |
| Width | 68 mm | 2.677 in |
| Depth | 236 mm | 9.291 in |
| Mounting Pipe Diameter Range | 43–122 mm |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | No dc/AISG pass-through |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | PORT 1 2550-2570 | PORT 2 2670-2690 |
Electrical specifications, band pass
| Frequency Range, MHz | 2550–2570 | 2670–2690 |
| Insertion Loss, typical, dB | 0.15 | 0.15 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, typical, dB | 45 | 45 |
| Input Power, RMS, maximum, W | 100 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 2.1 L |
| Weight, net | 3.6 kg | 7.937 lb |
| Weight, without mounting hardware | 3.4 kg | 7.496 lb |
