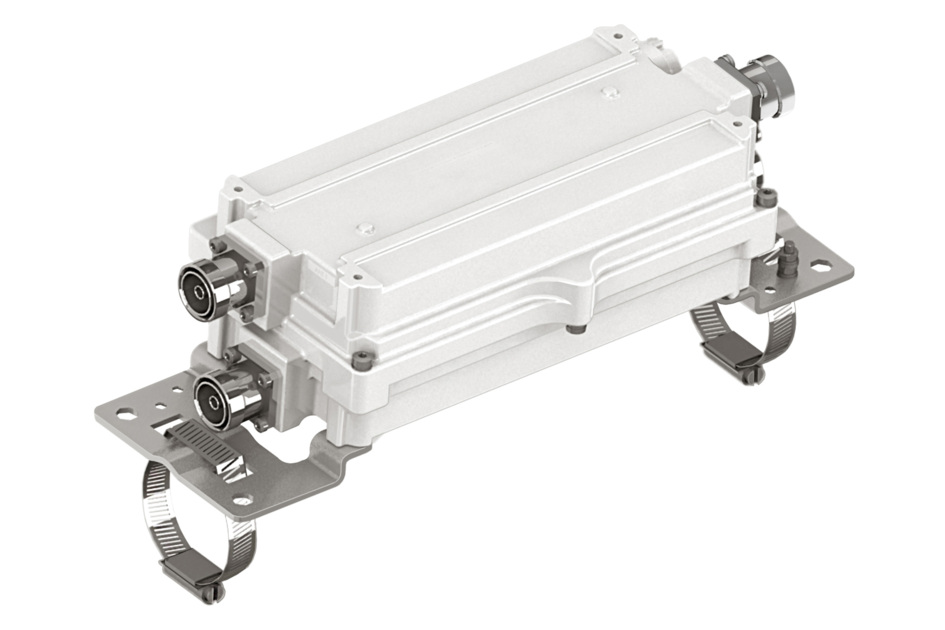

E15V87P63
Interference Mitigation Filter for 2600 band with rejection 46dB in 2575-2615 MHz band, DC Pass
Specifications
Product classification
| Product Type | Interference mitigation filter |

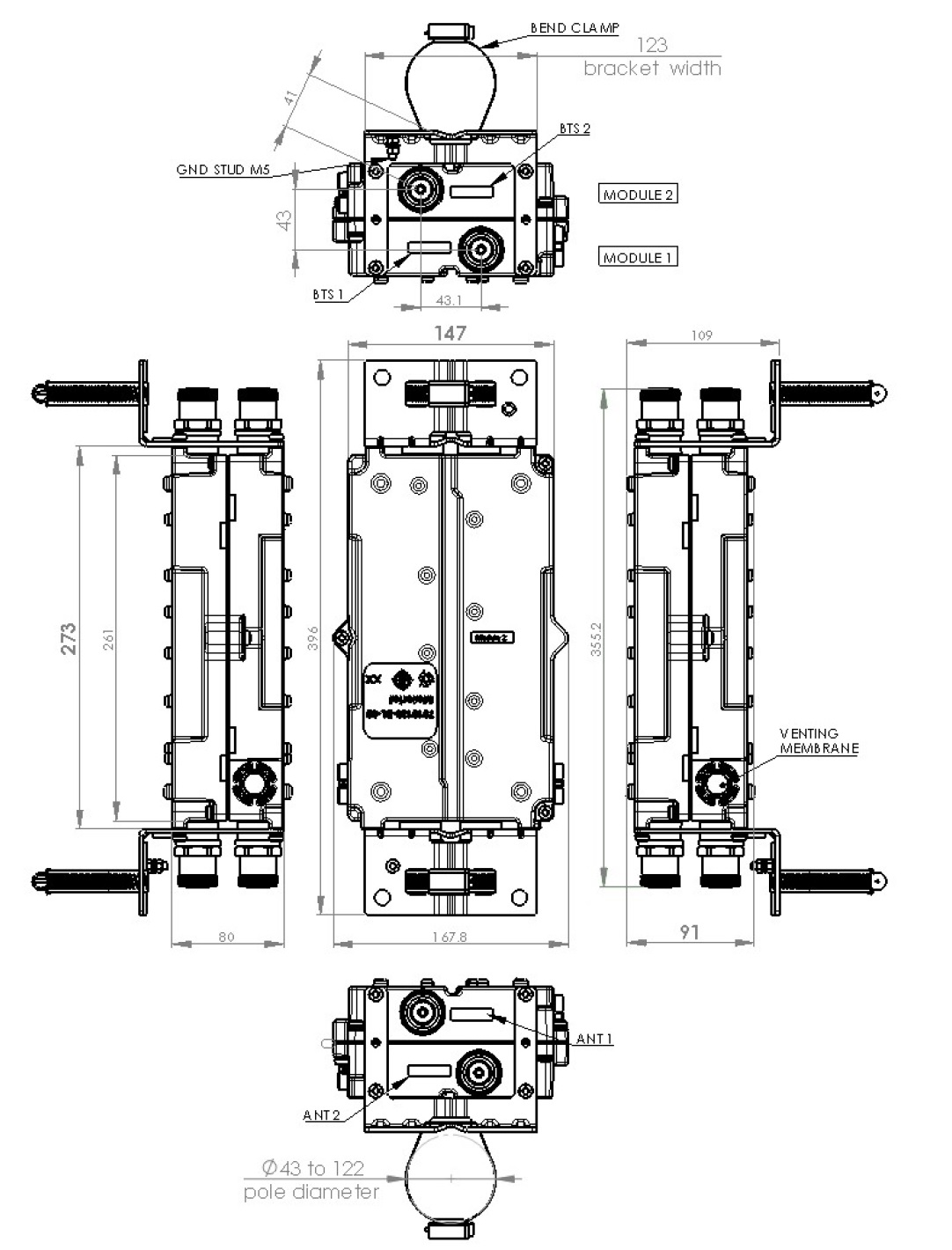

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Sub-module | 1 | 2 |
| Branch | 1 |
| License Band | IMT 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2500–2570 2620–2690 |
| Insertion Loss, maximum, dB | 1.90 |
| Insertion Loss, typical, dB | 0.30 |
| Total Group Delay, maximum, ns | 130 |
| Total Group Delay, typical, ns | 10 |
| Return Loss, minimum, dB | 18 |
| Return Loss, typical, dB | 20 |
| Input Power, RMS, maximum, W | 100 |
| Input Power, PEP, maximum, W | 1,000 |
| 3rd Order PIM, maximum, dBc | -150 |
| 3rd Order PIM Test Method | Two +43 dBm carriers |
Electrical specifications, band reject
| Frequency Range, MHz | 2575–2615 |
| Attenuation, minimum, dB | 46.0 |
Block diagram
| Click on image to enlarge. |
Product classification
| Product Type | Interference mitigation filter |
Electrical specifications
| Sub-module | 1 | 2 |
| Branch | 1 |
| License Band | IMT 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2500–2570; 2620–2690 |
| Insertion Loss, maximum, dB | 1.90 |
| Insertion Loss, typical, dB | 0.30 |
| Total Group Delay, maximum, ns | 130 |
| Total Group Delay, typical, ns | 10 |
| Return Loss, minimum, dB | 18 |
| Return Loss, typical, dB | 20 |
| Input Power, RMS, maximum, W | 100 |
| Input Power, PEP, maximum, W | 1,000 |
| 3rd Order PIM, maximum, dBc | -150 |
| 3rd Order PIM Test Method | Two +43 dBm carriers |
Electrical specifications, band reject
| Frequency Range, MHz | 2575–2615 |
| Attenuation, minimum, dB | 46.0 |
| Click on image to enlarge. |
| Click on image to enlarge. |
