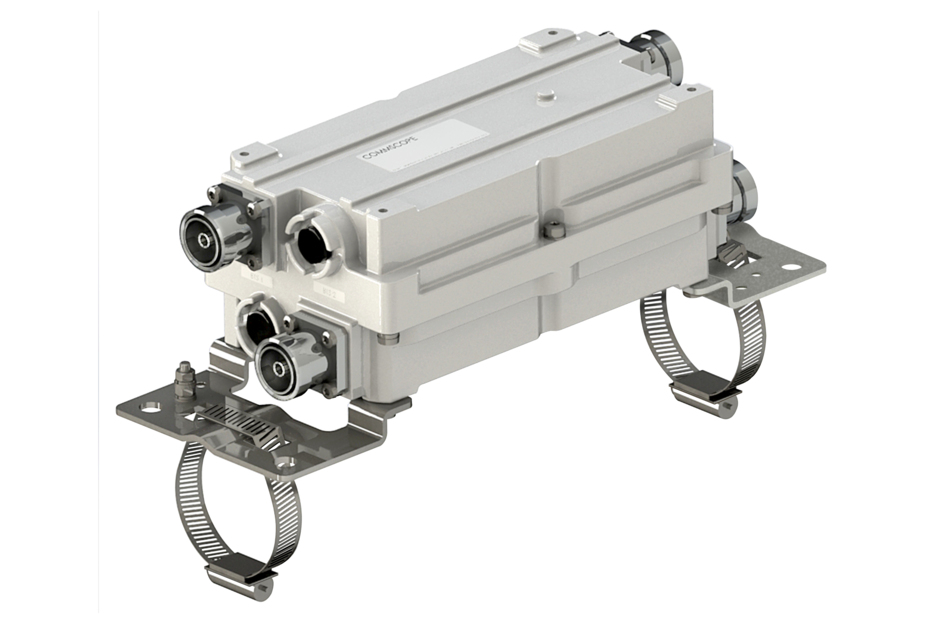

E15V87P64
CS-IMF 2575-2615 RJ 26 38dB DC
Specifications
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 214 mm | 8.425 in |
| Width | 120 mm | 4.724 in |
| Depth | 90 mm | 3.543 in |
| Ground Screw Diameter | 5 mm | 0.197 in |

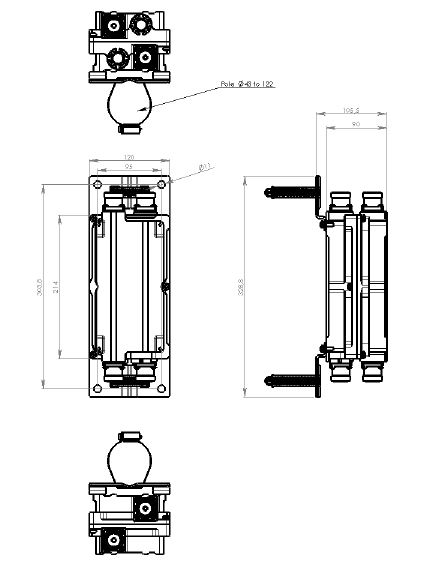

Outline drawing
| Click on image to enlarge. |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 3 kA |
| Lightning Surge Current Waveform | 10/350 waveform |
Electrical specifications
| Sub-module | 1 | 2 |
| Branch | 1 |
| License Band | IMT 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2575–2615 |
| Insertion Loss, maximum, dB | 1.30 |
| Insertion Loss, typical, dB | 0.50 |
| Total Group Delay, maximum, ns | 100 |
| Total Group Delay, typical, ns | 40 |
| Return Loss, minimum, dB | 18 |
| Return Loss, typical, dB | 20 |
| Input Power, RMS, maximum, W | 250 |
| Input Power, PEP, maximum, W | 1,500 |
| 3rd Order PIM, maximum, dBc | -150 |
| 3rd Order PIM, typical, dBc | -152 |
| 3rd Order PIM Test Method | Two +43 dBm carriers |
Electrical specifications, band reject
| Frequency Range, MHz | 2500–2570 2620–2690 |
| Attenuation, minimum, dB | 38.0 |

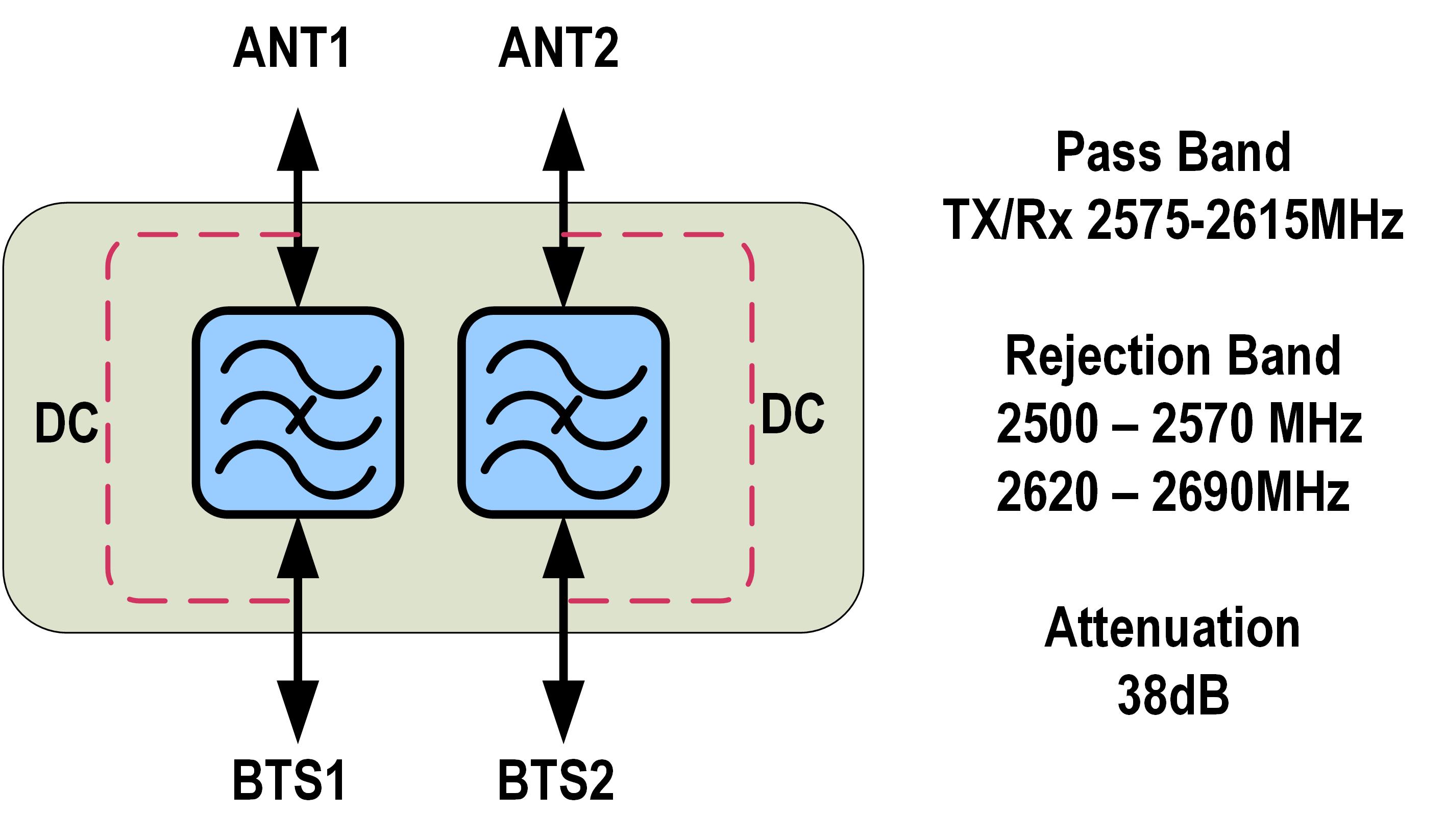

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Weight, without mounting hardware | 3.5 kg | 7.716 lb |
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 214 mm | 8.425 in |
| Width | 120 mm | 4.724 in |
| Depth | 90 mm | 3.543 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 3 kA |
| Lightning Surge Current Waveform | 10/350 waveform |
Electrical specifications
| Sub-module | 1 | 2 |
| Branch | 1 |
| License Band | IMT 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2575–2615 |
| Insertion Loss, maximum, dB | 1.30 |
| Insertion Loss, typical, dB | 0.50 |
| Total Group Delay, maximum, ns | 100 |
| Total Group Delay, typical, ns | 40 |
| Return Loss, minimum, dB | 18 |
| Return Loss, typical, dB | 20 |
| Input Power, RMS, maximum, W | 250 |
| Input Power, PEP, maximum, W | 1,500 |
| 3rd Order PIM, maximum, dBc | -150 |
| 3rd Order PIM, typical, dBc | -152 |
| 3rd Order PIM Test Method | Two +43 dBm carriers |
Electrical specifications, band reject
| Frequency Range, MHz | 2500–2570; 2620–2690 |
| Attenuation, minimum, dB | 38.0 |
Environmental specifications
| Operating Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Weight, without mounting hardware | 3.5 kg | 7.716 lb |
