E16V87P63

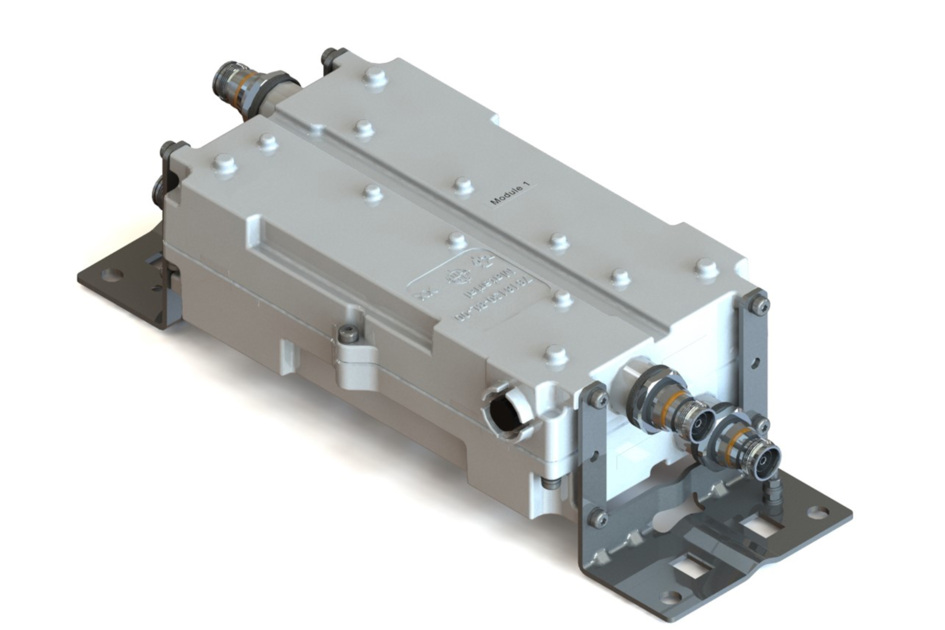

Interference Mitigation Filter for 2600 MHz B7 band with rejection 46dB in 2575-2615 MHz band
Specifications
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 80 mm | 3.150 in |
| Width | 147 mm | 5.787 in |
| Depth | 261 mm | 10.276 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
| Mounting Pipe Diameter Range | 43–122 mm |

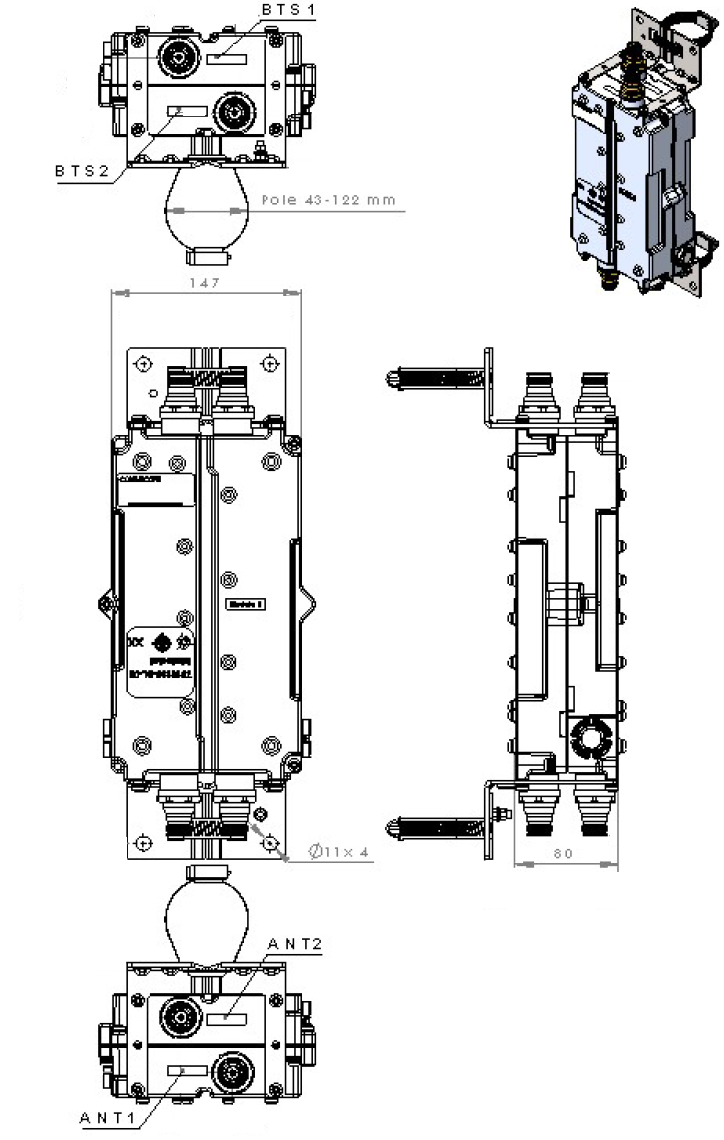

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 1 |
| License Band | IMT 2600, Band Pass | IMT 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2500–2570 | 2620–2690 |
| Insertion Loss, maximum, dB | 1.75 | 1.90 |
| Insertion Loss, typical, dB | 0.30 | 0.30 |
| Total Group Delay, maximum, ns | 130 | 130 |
| Return Loss, minimum, dB | 18 | 18 |
| Return Loss, typical, dB | 20 | 20 |
| Input Power, RMS, maximum, W | 100 | |
| Input Power, PEP, maximum, W | 1,000 | |
| 3rd Order PIM, maximum, dBc | -150 | |
| 3rd Order PIM Test Method | Two +43 dBm carriers |
Electrical specifications, band reject
| Frequency Range, MHz | 2575–2615 | |
| Attenuation, minimum, dB | 46.0 |

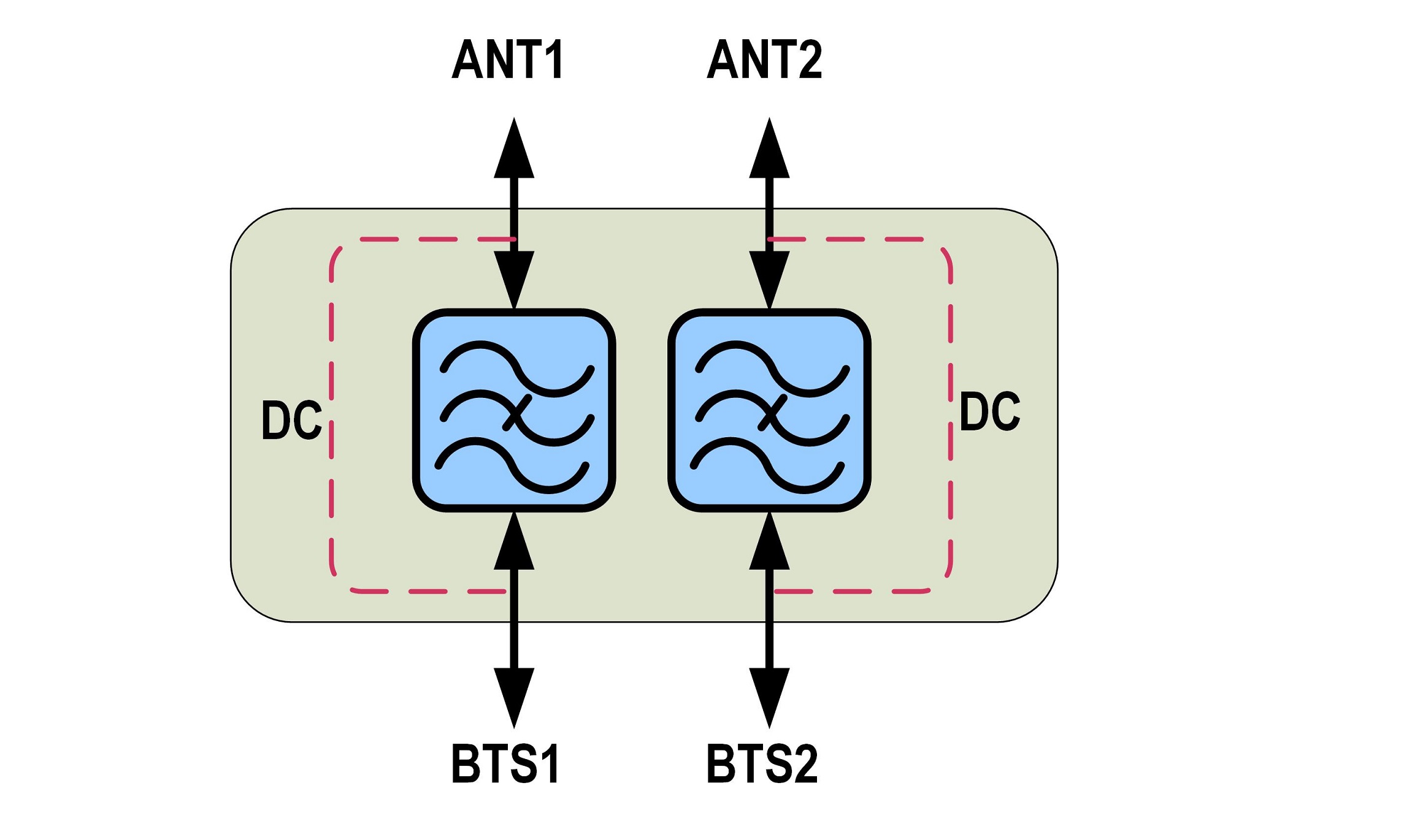

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Weight, without mounting hardware | 5.2 kg | 11.464 lb |
Product classification
| Product Type | Interference mitigation filter |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 80 mm | 3.150 in |
| Width | 147 mm | 5.787 in |
| Depth | 261 mm | 10.276 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
| Mounting Pipe Diameter Range | 43–122 mm |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 1 |
| License Band | IMT 2600, Band Pass | IMT 2600, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2500–2570 | 2620–2690 |
| Insertion Loss, maximum, dB | 1.75 | 1.90 |
| Insertion Loss, typical, dB | 0.30 | 0.30 |
| Total Group Delay, maximum, ns | 130 | 130 |
| Return Loss, minimum, dB | 18 | 18 |
| Return Loss, typical, dB | 20 | 20 |
| Input Power, RMS, maximum, W | 100 | |
| Input Power, PEP, maximum, W | 1,000 | |
| 3rd Order PIM, maximum, dBc | -150 | |
| 3rd Order PIM Test Method | Two +43 dBm carriers |
Electrical specifications, band reject
| Frequency Range, MHz | 2575–2615 | |
| Attenuation, minimum, dB | 46.0 |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Weight, without mounting hardware | 5.2 kg | 11.464 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
