209800-28B

Base product: 209800-SERIES-HANGERS

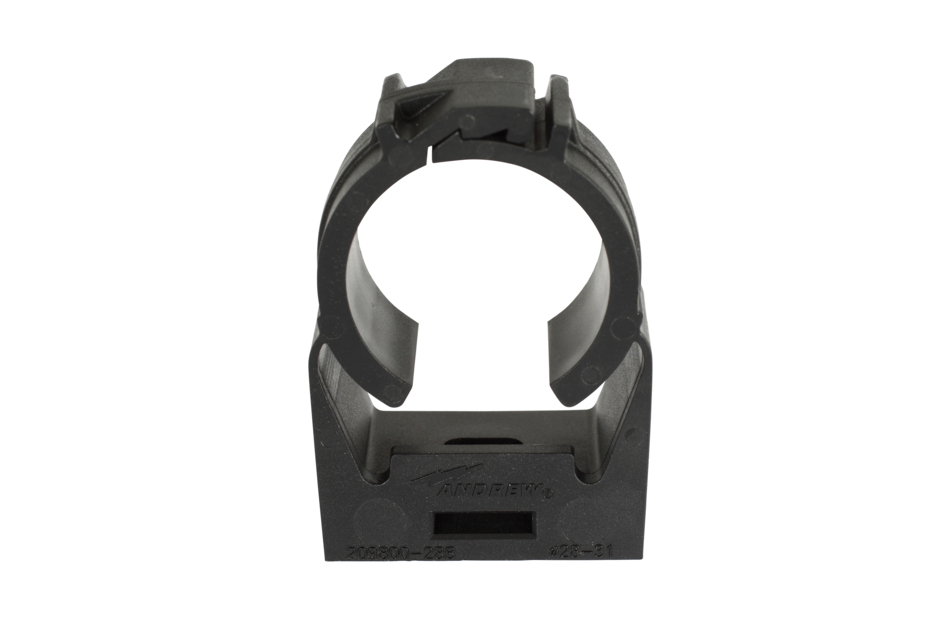

Self-locking Hanger for 7/8 in RXL5 RADIAX® Radiating cable

Finish making your selections or clear them to view relevant specifications.
Download specifications

Product classification

Product Type Hanger kit

General specifications

Cables per Hanger 1
Color Black
Hanger Type Self locking hanger

Dimensions

Maximum Stack Height 2
Height 49 mm | 1.929 in
Width 20.3 mm | 0.799 in
Length 33.5 mm | 1.319 in
Compatible Diameter, maximum 31.2 mm | 1.228 in
Compatible Diameter, minimum 27.8 mm | 1.094 in
Nominal Size 7/8 in

Material specifications

Material Type Polyamide PA12

Mechanical specifications

Maximum Load 850 N | 191.088 lbf

Environmental specifications

Operating Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Flammability Test Method UL 94-HB
Toxicity Index Test Method IEC 60754-2
UV Resistance, minimum with no degradation ≥500 hours exposure in accelerated UV life chamber

Packaging and weights

Height, packed 19 cm | 7.48 in
Width, packed 11 cm | 4.331 in
Length, packed 16.5 cm | 6.496 in
Packaging quantity 50
Weight, gross 0.88 kg | 1.94 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Hanger kit

General specifications

Cables per Hanger 1
Color Black
Hanger Type Self locking hanger

Dimensions

Maximum Stack Height 2
Height 49 mm | 1.929 in
Width 20.3 mm | 0.799 in
Length 33.5 mm | 1.319 in
Compatible Diameter, maximum 31.2 mm | 1.228 in
Compatible Diameter, minimum 27.8 mm | 1.094 in
Nominal Size 7/8 in

Material specifications

Material Type Polyamide PA12

Mechanical specifications

Maximum Load 850 N | 191.088 lbf

Environmental specifications

Operating Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Flammability Test Method UL 94-HB
Toxicity Index Test Method IEC 60754-2
UV Resistance, minimum with no degradation ≥500 hours exposure in accelerated UV life chamber

Packaging and weights

Height, packed 19 cm | 7.48 in
Width, packed 11 cm | 4.331 in
Length, packed 16.5 cm | 6.496 in
Packaging quantity 50
Weight, gross 0.88 kg | 1.94 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
