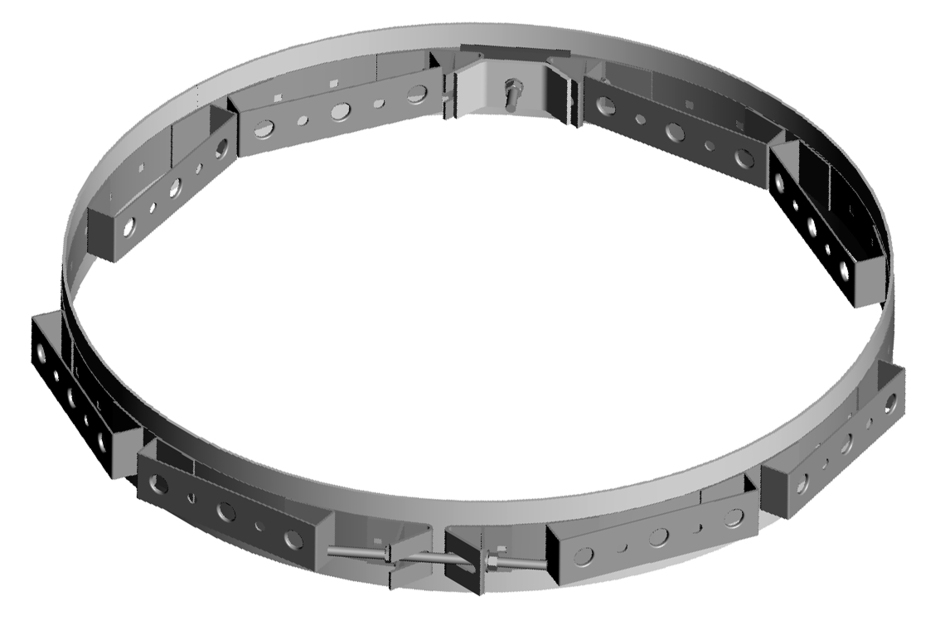

EX-P1060

Ex-Press® Expansion/Compression Coaxial Cable Mounting Band;

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Mounting band
Ordering Note ANDREW® non-standard product
Warranty One year

General specifications

Hole, quantity 12
Mounting Access tube, 914.4–1524 mm (36–60 in) | Polygon monopole, 254–1524 mm (10–60 in) | Round monopole, 254–1524 mm (10–60 in)

Dimensions

Height 76.2 mm | 3 in
Width 1524 mm | 60 in
Length 1524 mm | 60 in
Hole Size 3/4 in | 7/16 in

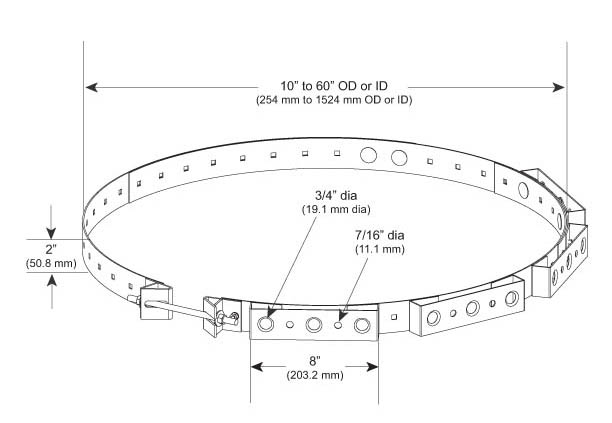

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Aluminum | Hot dip galvanized steel

Packaging and weights

Included Bands | Brackets | Hardware
Packaging quantity 1
Weight, net 2.8 kg | 6.173 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Mounting band
Ordering Note ANDREW® non-standard product
Warranty One year

General specifications

Hole, quantity 12
Mounting Access tube, 914.4–1524 mm (36–60 in) | Polygon monopole, 254–1524 mm (10–60 in) | Round monopole, 254–1524 mm (10–60 in)

Dimensions

Height 76.2 mm | 3 in
Width 1524 mm | 60 in
Length 1524 mm | 60 in
Hole Size 3/4 in | 7/16 in

Material specifications

Material Type Aluminum | Hot dip galvanized steel

Packaging and weights

Included Bands | Brackets | Hardware
Packaging quantity 1
Weight, net 2.8 kg | 6.173 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Assembly drawing

Universal Expansion/Commpression Band
