860676982-001
Base product: RAIN-CANOPIES

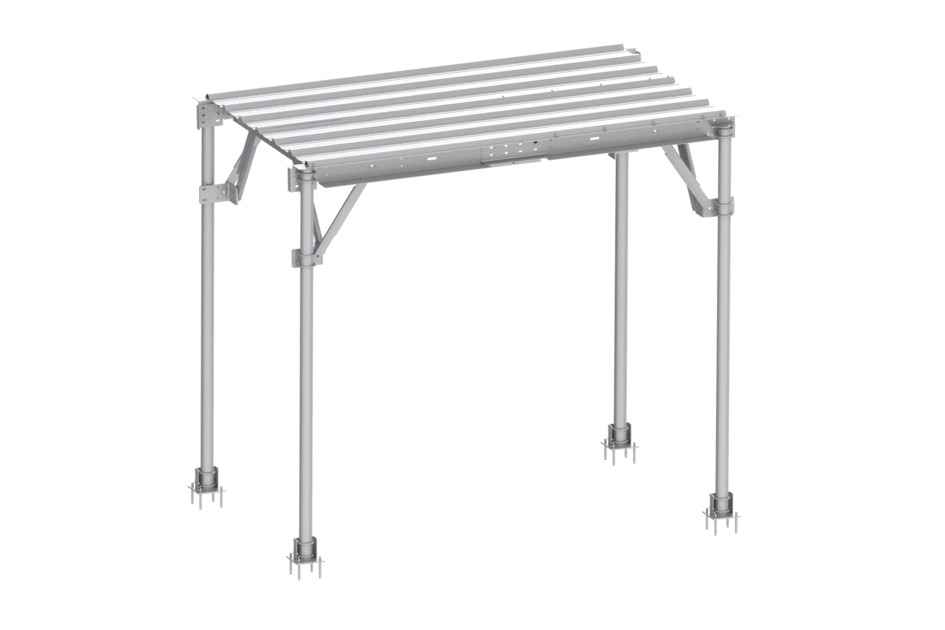

Rain/Shade Canopy, 6 ft x 10 ft, four 108" footed posts
Specifications
Product classification
| Product Type | Rain and shade canopy |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Legs, quantity | 4 |
Dimensions
| Height | 2824.480 mm | 111.2 in |
| Width | 1988.820 mm | 78.3 in |
| Length | 3251.200 mm | 128 in |
| Pipe Length | 2743.200 mm | 108 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 311.6 kg | 686.960 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Rain and shade canopy |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Legs, quantity | 4 |
Dimensions
| Height | 2824.480 mm | 111.2 in |
| Width | 1988.820 mm | 78.3 in |
| Length | 3251.200 mm | 128 in |
| Pipe Length | 2743.200 mm | 108 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 311.6 kg | 686.960 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
