MTC4045HF65
Base product: CUSTOM-PLATFORM-KITS

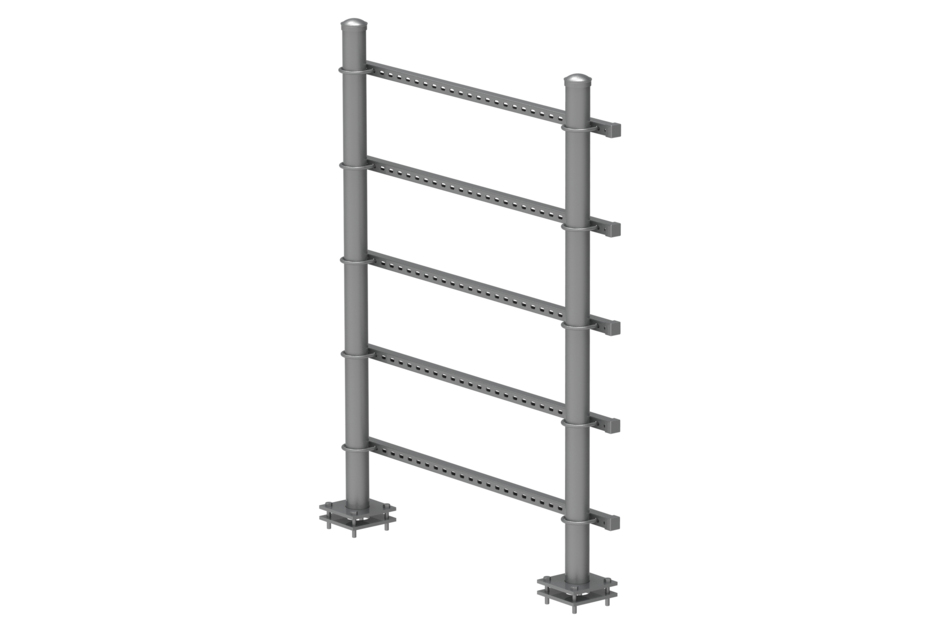

H-Frame for Equipment Mounting - attach to concrete pad with customer supplied wedge anchors or to steel platforms using through bolts with backer plates
Specifications
Product classification
| Product Type | Equipment platform system |
Dimensions
| Height | 1828.800 mm | 72 in |
| Width | 1524.000 mm | 60 in |
| Length | 88.900 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Frame | Hardware |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Equipment platform system |
Dimensions
| Height | 1828.800 mm | 72 in |
| Width | 1524.000 mm | 60 in |
| Length | 88.900 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Frame | Hardware |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
