CML-L30-63

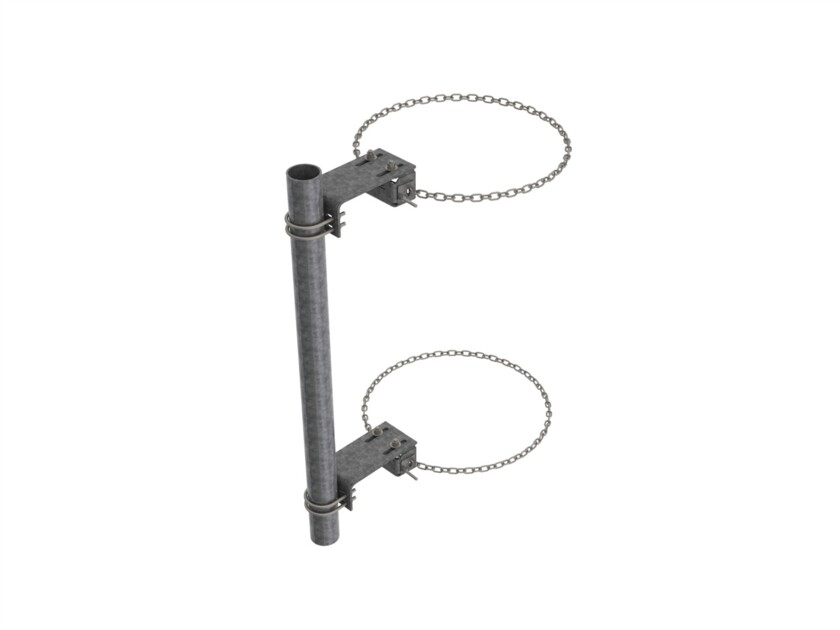

Light Duty Chain Mount Kit, 14 in stand-off, 8 ft chain, includes pipe

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Chain mount kit

General specifications

Chains, quantity 2
Pipe, quantity 1
Sectors, quantity 1

Dimensions

Height 152.4 mm | 6 in
Width 203.2 mm | 8 in
Length 1600.2 mm | 63 in
Chain Length 2400.3 mm | 94.5 in
Pipe Length 1600.2 mm | 63 in
Mounting Diameter, maximum 762 mm | 30 in
Mounting Diameter, minimum 203.2 mm | 8 in
Pipe Outer Diameter 114.3 mm | 4.5 in
Mounting Circumference, maximum 2392.68 mm | 94.2 in
Mounting Circumference, minimum 635 mm | 25 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating 120 mph (BWS) at 100 ft AGL
Wind Rating Criteria One 96 in x 10 in panel antenna per sector
Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Brackets | Chains | Hardware | Pipe mount
Packaging quantity 1
Weight, net 59 kg | 130.073 lb
