MC-KD14M-15-WLL
Base product: MC-K-SERIES

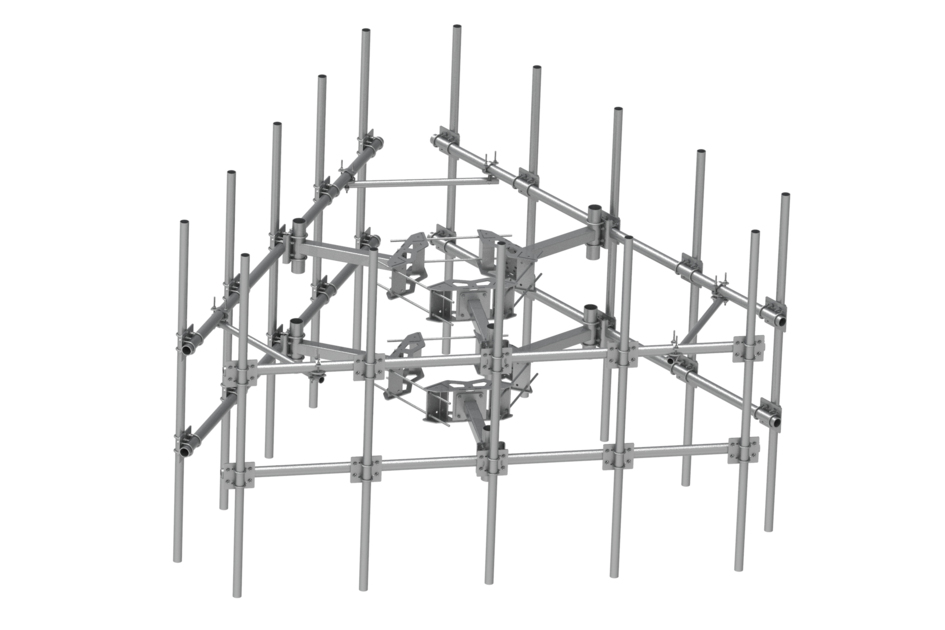

Heavy Duty Double T-Arm Monopole Mount, Includes (2) Ring Mounts for 15"-50" OD Monopole, 14.5 ft x 3-1/2" OD face pipes, (15) 2-7/8" OD x 120” Antenna Pipes
Features and benefits
Heavy Duty Double T-Arm mount design for Monopole applications featuring sturdy corner tie-backs for added stability.
Includes 3-1/2” OD face pipes and (15) 2-7/8” OD Antenna Pipes.
Includes 3-1/2” OD face pipes and (15) 2-7/8” OD Antenna Pipes.
Specifications
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 15 |
| Sectors, quantity | 3 |
Dimensions
| Height | 3048.000 mm | 120 in |
| Face Width | 4.42 m | 14.5 ft |
| Width | 4419.6 mm | 174 in |
| Pipe Length | 3048.000 mm | 120 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381.000 mm | 15 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1244.600 mm | 49 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Pipe mounts | Plain end pipes | Ring mounts (2) | Stand-off arms |
| Packaging quantity | 1 |
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Pipe, quantity | 15 |
| Sectors, quantity | 3 |
Dimensions
| Height | 3048.000 mm | 120 in |
| Face Width | 4.42 m | 14.5 ft |
| Width | 4419.6 mm | 174 in |
| Pipe Length | 3048.000 mm | 120 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381.000 mm | 15 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1244.600 mm | 49 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Pipe mounts | Plain end pipes | Ring mounts (2) | Stand-off arms |
| Packaging quantity | 1 |
Documentation & downloads
