MC-RMHD-1545-4
Base product: RING-MOUNTS

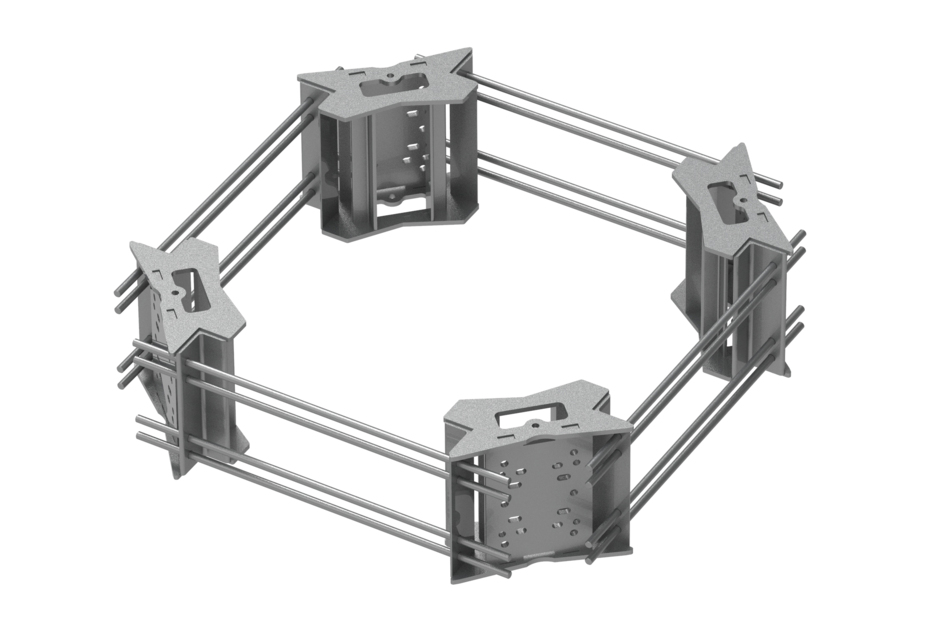

Universal Ring Mount, Heavy Duty 4-sector, 12 in to 45 in OD
Specifications
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 4 |
Dimensions
| Mounting Diameter, maximum | 1143.000 mm | 45 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Mount | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 183.796 kg | 405.2 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 4 |
Dimensions
| Mounting Diameter, maximum | 1143.000 mm | 45 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Mount | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 183.796 kg | 405.2 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
