MC-SA24-B-HD
Base product: MOUNT-ACCESSORIES
Stand-off Arm -24 in - Heavy Duty with U-bolts for 2-78" and 3-1/2" Pipe
Specifications
Product classification
| Product Type | Support arms for ring mount |
General specifications
| Mounting | Ring mount |
| Pipe, quantity | 0 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 254 mm | 10 in |
| Length | 609.6 mm | 24 in |
| Stand-off Distance | 609.6 mm | 24 in |

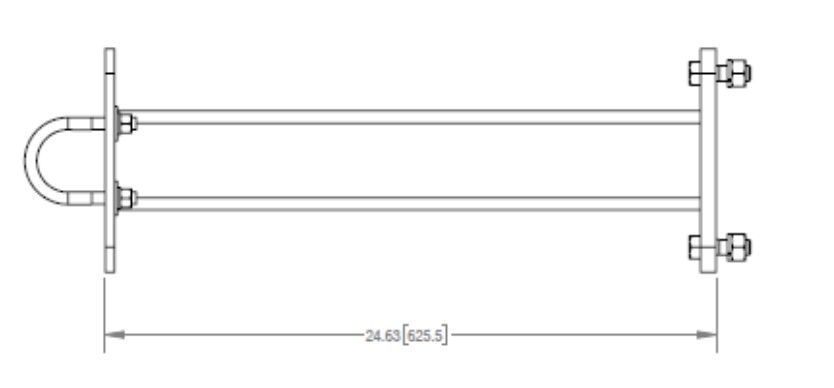

Outline drawing
| Click on image to enlarge. | |
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Hardware | Stand-off arms | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 26.9 lb | 59.304 lb |
Product classification
| Product Type | Support arms for ring mount |
General specifications
| Mounting | Ring mount |
| Pipe, quantity | 0 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 254 mm | 10 in |
| Length | 609.6 mm | 24 in |
| Stand-off Distance | 609.6 mm | 24 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Hardware | Stand-off arms | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 26.9 lb | 59.304 lb |
| Click on image to enlarge. | |
| Click on image to enlarge. |
