RM-SS-L2
Base product: MOUNT-ACCESSORIES

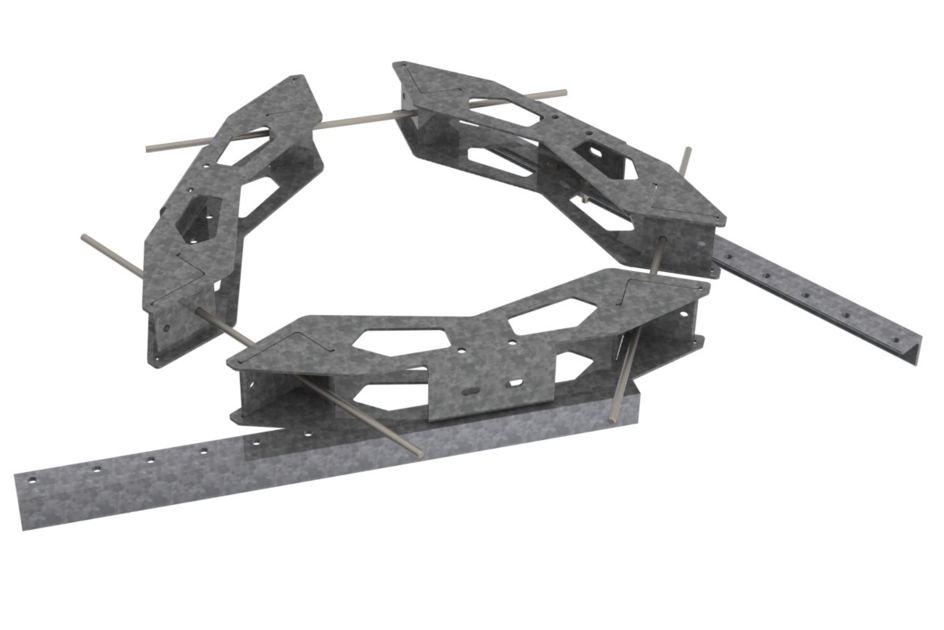

Ring Mount Tie Back Support Kit
Specifications
Product classification
| Product Type | Ring mount |
General specifications
| Mounting | Monopole, 762–1524 mm (30–60 in) OD |
| Sectors, quantity | 1 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 1219.2 mm | 48 in |
| Length | 1219.2 mm | 48 in |
| Mounting Diameter, maximum | 1524 mm | 60 in |
| Mounting Diameter, minimum | 762 mm | 30 in |
| Mounting Circumference, maximum | 4785.36 mm | 188.4 in |
| Mounting Circumference, minimum | 2392.68 mm | 94.2 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 90.7 lb | 199.959 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
