RR-RM1560

Base product: RING-MOUNTS

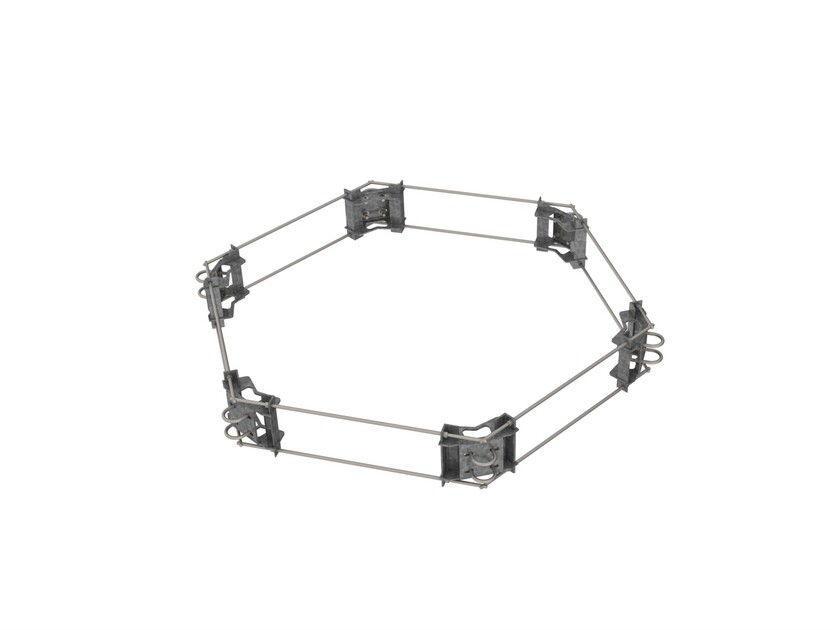

Six Sector Ring Mount Kit

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Features and benefits

-Ring Mount for the attachment of radios and other equipment to the tower face.
-Designed to be a single connection point to the tower reducing costs associated with adding connection points to the tower.

-Allows for up to (6) mounting pipes.
-Accommodates 2-3/8" or 2-7/8" pipes
-Mast pipes & U-bolts ordered separate
-For 2-3/8" pipes use (2) "GUB-4240" per pipe
-For 2-7/8" pipes use (2) "GUB-4350" per pipe

-Pole range of 15" to 60" diameter

Specifications

Product classification

Product Type	Universal ring mount
Ordering Note	ANDREW® standard product with terms
Warranty	One year

General specifications

Mounting	Monopole, 381–1524 mm (15–60 in) OD
Pipe, quantity	0
Sectors, quantity	6

Dimensions

Height	254 mm \| 10 in
Length	152.4 mm \| 6 in
Mounting Diameter, maximum	1524 mm \| 60 in
Mounting Diameter, minimum	381 mm \| 15 in
Pipe Outer Diameter	0.000 mm \| 0 in
Mounting Circumference, maximum	4785.36 mm \| 188.4 in
Mounting Circumference, minimum	1196.34 mm \| 47.1 in

Material specifications

Material Type

Hot dip galvanized steel

Packaging and weights

Included	Hardware \| Mount
Packaging quantity	1
Weight, net	55.52 kg \| 122.4 lb

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
