BC-35-14D

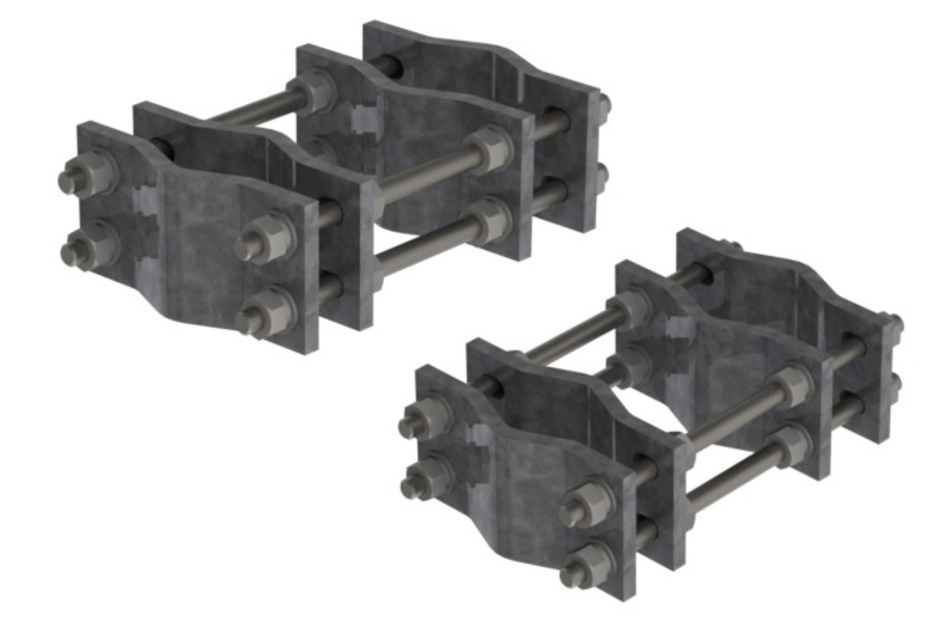

Pipe-to-Pipe Clamp, joins two 2-3/8 in to 5 in OD round members
Specifications
Product classification
| Product Type | Clamp set |
General specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 203.2 mm | 8 in |
| Length | 355.6 mm | 14 in |
| Mounting Diameter 2, maximum | 127 mm | 5 in |
| Mounting Diameter 2, minimum | 60.96 mm | 2.4 in |
| Mounting Diameter, maximum | 127 mm | 5 in |
| Mounting Diameter, minimum | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 23.1 kg | 50.927 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Clamp set |
General specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 203.2 mm | 8 in |
| Length | 355.6 mm | 14 in |
| Mounting Diameter 2, maximum | 127 mm | 5 in |
| Mounting Diameter 2, minimum | 60.96 mm | 2.4 in |
| Mounting Diameter, maximum | 127 mm | 5 in |
| Mounting Diameter, minimum | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 23.1 kg | 50.927 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
