PM-SU4-63
Universal Sliding Pipe Mount Kit for 4-1/2 in OD x 63 in pipe
Specifications
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Note | One 96 in x 8 in panel antenna per sector |
| Pipe, quantity | 1 |
| Tower Taper | Tapered |
Dimensions
| Height | 1600.2 mm | 63 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Pipe Length | 1600.2 mm | 63 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |

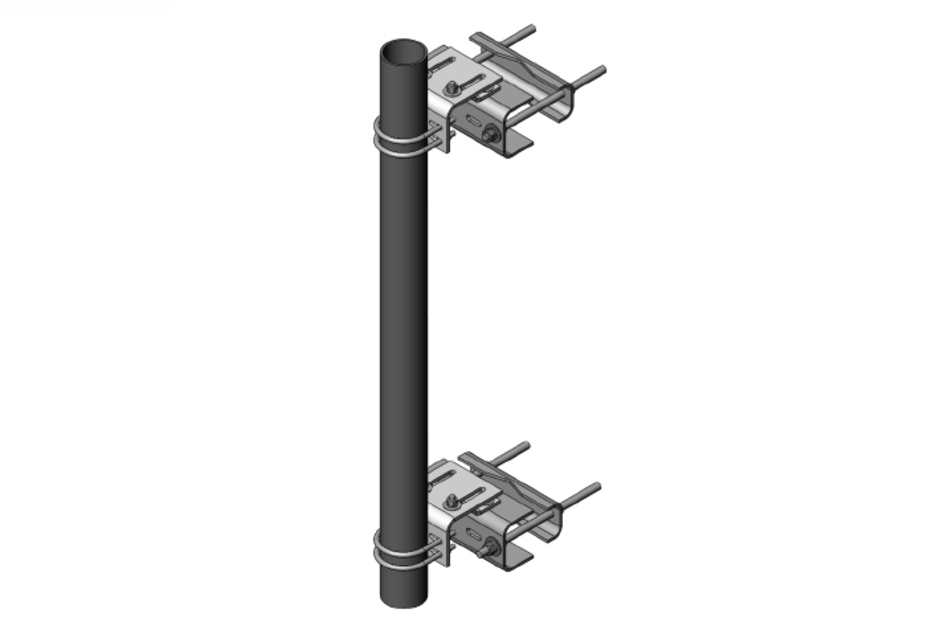

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe | Sliding pipe mount brackets | Universal saddle mount |
| Packaging quantity | 1 |
| Weight, net | 62.6 kg | 138.009 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Note | One 96 in x 8 in panel antenna per sector |
| Pipe, quantity | 1 |
| Tower Taper | Tapered |
Dimensions
| Height | 1600.2 mm | 63 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Pipe Length | 1600.2 mm | 63 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe | Sliding pipe mount brackets | Universal saddle mount |
| Packaging quantity | 1 |
| Weight, net | 62.6 kg | 138.009 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
