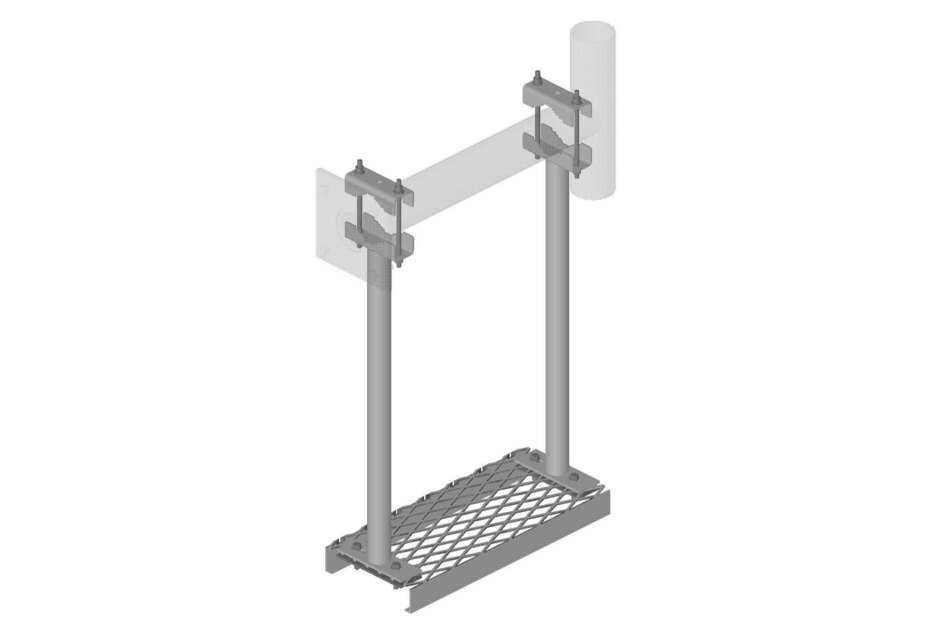

WP-197
Work Platform for Single Pipe Support Arm
Specifications
Product classification
| Product Type | Work platforms for support arm |
Dimensions
| Height | 990.6 mm | 39 in |
| Platform Width | 304.8 mm | 12 in |
| Width | 762 mm | 30 in |
| Length | 304.8 mm | 12 in |

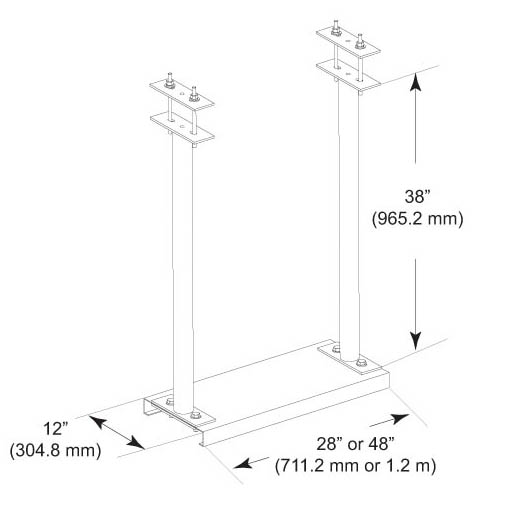

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Grating | Hardware |
| Packaging quantity | 1 |
| Weight, net | 37.1 kg | 81.791 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Work platforms for support arm |
Dimensions
| Height | 990.6 mm | 39 in |
| Platform Width | 304.8 mm | 12 in |
| Width | 762 mm | 30 in |
| Length | 304.8 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Grating | Hardware |
| Packaging quantity | 1 |
| Weight, net | 37.1 kg | 81.791 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documentation & downloads
Assembly drawing
Product specification
Assembly drawing
Product compliance documentation
Product specification
