XP-197-US

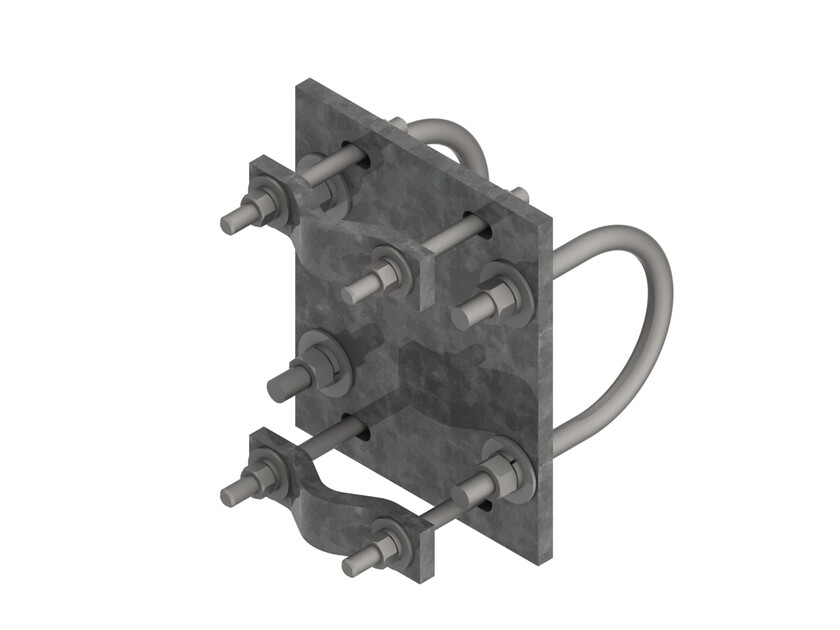

Single Crossover Plate kit for MT-197 Stand-off: Mounts one 2-3/8"-3-1/2" Pipe to 4-1/2" Round or 4" Square Members
Specifications
Product classification
| Product Type | Pipe mount kit |
General specifications
| Mounting | Stand-off arm |
| Pipe, quantity | 0 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 254 mm | 10 in |
| Length | 254 mm | 10 in |
| Mounting Diameter, maximum | 114.3 mm | 4.5 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in | 73.66 mm | 2.9 in | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Crossover bracket | Hardware |
| Packaging quantity | 1 |
| Weight, net | 11.3 kg | 24.912 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
