RR-TFS
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

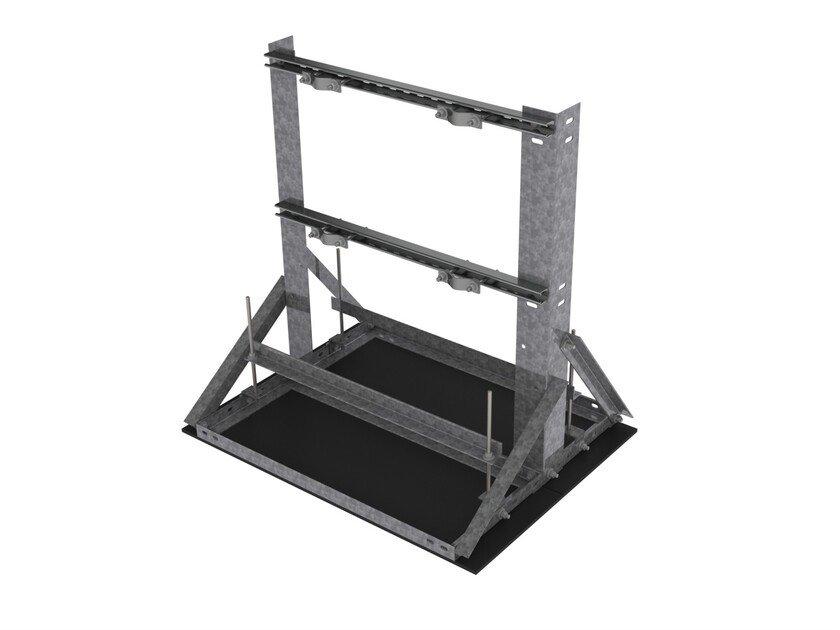

Non-Penetrating Ballast Frame for RRUs with 2 Mounting Pipe Locations
Specifications
Product classification
| Product Type | Non-penetrating roof frame |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 0 |
Dimensions
| Height | 1219.2 mm | 48 in |
| Face Width | 1.067 m | 3.5 ft |
| Width | 1066.8 mm | 42 in |
| Length | 0.213 m | 0.7 ft |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Frame | Hardware |
| Packaging quantity | 1 |
| Weight, net | 73.9 kg | 162.921 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Non-penetrating roof frame |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 0 |
Dimensions
| Height | 1219.2 mm | 48 in |
| Face Width | 1.067 m | 3.5 ft |
| Width | 1066.8 mm | 42 in |
| Length | 0.213 m | 0.7 ft |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Frame | Hardware |
| Packaging quantity | 1 |
| Weight, net | 73.9 kg | 162.921 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
