RT-MPT-5
Base product: TRIPOD-MOUNTS

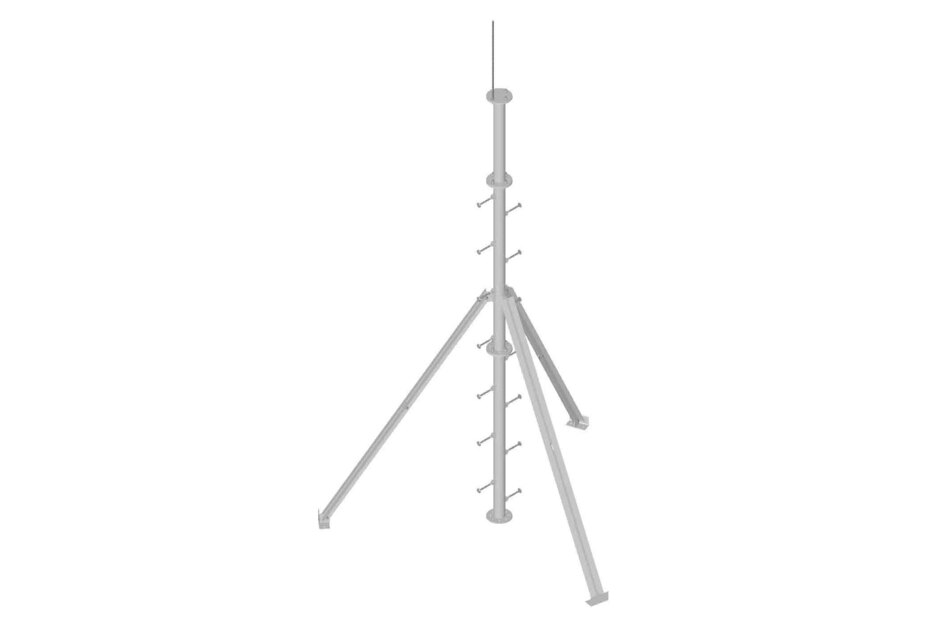

Tripod Assembly, 5 m mast
Specifications
Product classification
| Product Type | Tripod mount |
General specifications
| Mounting | Surfaces |
| Pipe, quantity | 1 |
Dimensions
| Height | 5003.8 mm | 197 in |
| Width | 1219.2 mm | 48 in |
| Length | 1.219 m | 4 ft |
| Pipe Length | 5003.8 mm | 197 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Brackets | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 213.2 kg | 470.025 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Tripod mount |
General specifications
| Mounting | Surfaces |
| Pipe, quantity | 1 |
Dimensions
| Height | 5003.8 mm | 197 in |
| Width | 1219.2 mm | 48 in |
| Length | 1.219 m | 4 ft |
| Pipe Length | 5003.8 mm | 197 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Brackets | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 213.2 kg | 470.025 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
