TP-MSC-68
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

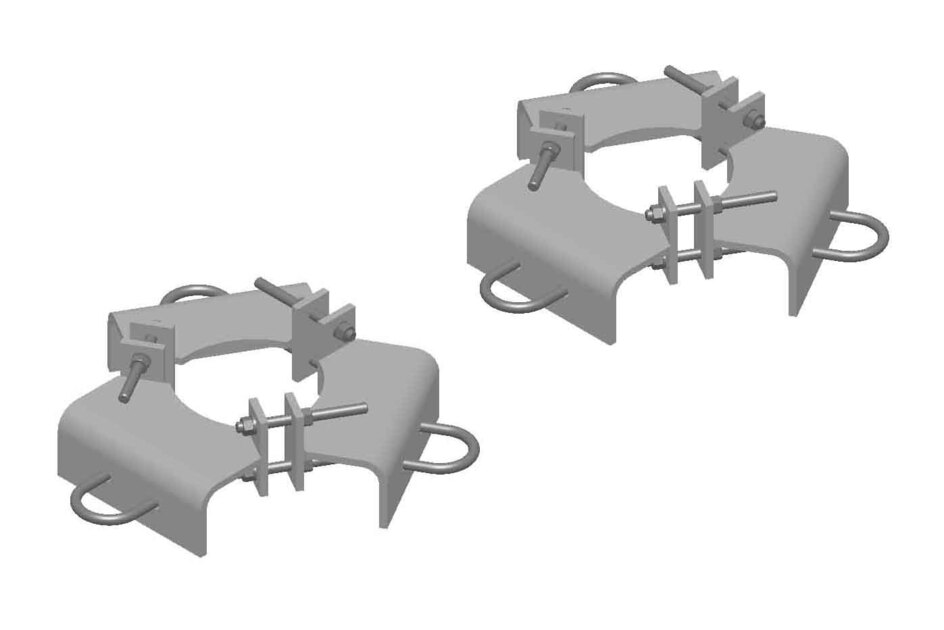

Multi-Sector Cluster Bracket, 6 in–8 in OD
Specifications
Product classification
| Product Type | Tripod mount component |
General specifications
| Mounting | Round member,152.4–203.2 mm (6–8 in) OD |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 330.2 mm | 13 in |
| Length | 0.335 m | 1.1 ft |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 114.3 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Brackets | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 21.2 kg | 46.738 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
