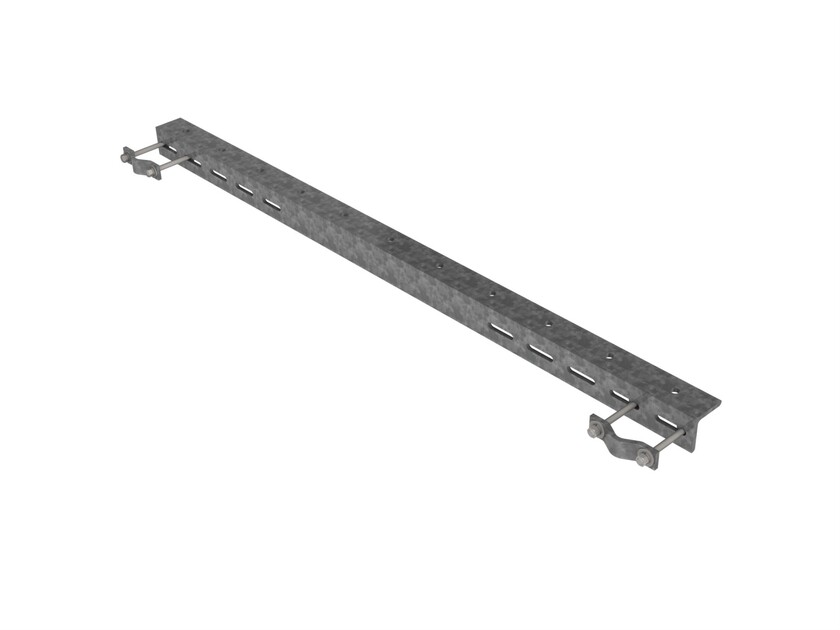

MD-FSS
Face Mounted Microwave Strut Support
Specifications
Product classification
| Product Type | Microwave strut support |
General specifications
| Mounting | Straight legs up to 88.9 mm (3-1/2 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 152.4 mm | 6 in |
| Length | 1676.4 mm | 66 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle | Attachment hardware | Clamps |
| Packaging quantity | 1 |
| Weight, net | 20.4 kg | 44.974 lb |
Product classification
| Product Type | Microwave strut support |
General specifications
| Mounting | Straight legs up to 88.9 mm (3-1/2 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 152.4 mm | 6 in |
| Length | 1676.4 mm | 66 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle | Attachment hardware | Clamps |
| Packaging quantity | 1 |
| Weight, net | 20.4 kg | 44.974 lb |
