MD-S3
Base product: MOUNT-ACCESSORIES

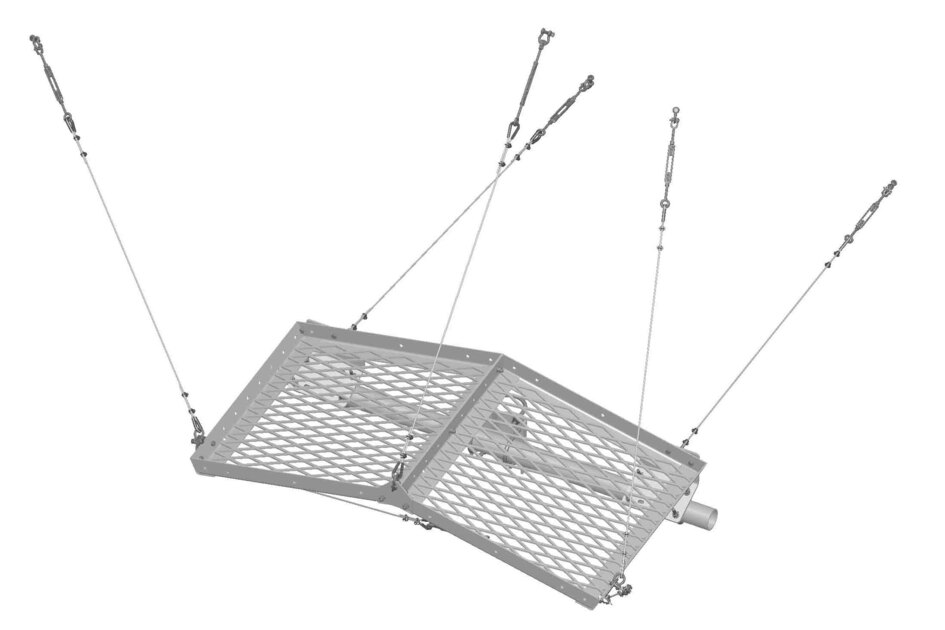

Microwave Antenna Ice Shield for 3 ft antennas
Specifications
Product classification
| Product Type | Ice canopies and shields |
General specifications
| Mounting | Pipe, 114.3 mm (4-1/2 in) OD |
Dimensions
| Height | 76.200 mm | 3 in |
| Width | 1828.800 mm | 72 in |
| Length | 914.400 mm | 36 in |
| Pipe Outer Diameter | 88.900 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Height, packed | 355.6 mm | 14.000 in |
| Width, packed | 1219 mm | 47.992 in |
| Length, packed | 1905 mm | 75.000 in |
| Included | Hardware | Ice shield |
| Packaging quantity | 1 |
| Weight, net | 118.4 lb | 261.027 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Ice canopies and shields |
General specifications
| Mounting | Pipe, 114.3 mm (4-1/2 in) OD |
Dimensions
| Height | 76.200 mm | 3 in |
| Width | 1828.800 mm | 72 in |
| Length | 914.400 mm | 36 in |
| Pipe Outer Diameter | 88.900 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Height, packed | 355.6 mm | 14.000 in |
| Width, packed | 1219 mm | 47.992 in |
| Length, packed | 1905 mm | 75.000 in |
| Included | Hardware | Ice shield |
| Packaging quantity | 1 |
| Weight, net | 118.4 lb | 261.027 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
