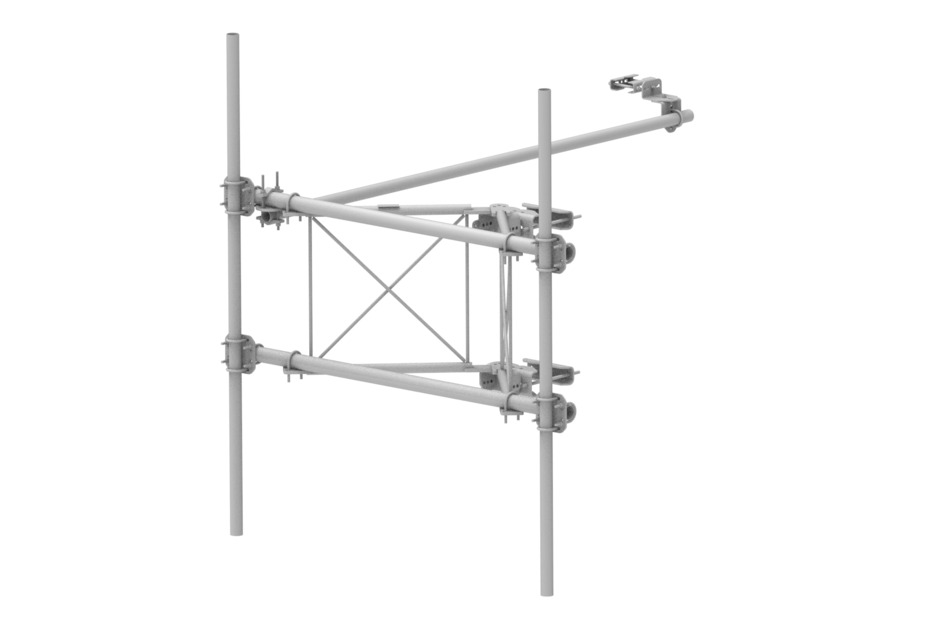

SFG21HD-7-2-96
Base product: G21-SERIES-TOWER
G21HD High Capacity Sector Frame, 7 ft x 2.88 in OD face pipes, includes two 96 in 2.375 OD antenna pipes
Specifications
Product classification
| Product Type | High capacity Tower sector frame |
| Product Series | G2 |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 2 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 2.134 m | 7 ft |
| Width | 2133.600 mm | 84 in |
| Pipe Length | 2438.4 mm | 96 in |
| Face Support Pipe Diameter | 73.025 mm | 2.875 in |
| Mounting Diameter, maximum | 218.44 mm | 8.6 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
| Stand-off Distance | 889 mm | 35 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Frame | Pipe mounts | Plain end pipes | Stiff arm | Tower attachment |
| Packaging quantity | 1 |
| Weight, net | 162.001 kg | 357.15 lb |
Product classification
| Product Type | High capacity Tower sector frame |
| Product Series | G2 |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 2 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 2.134 m | 7 ft |
| Width | 2133.600 mm | 84 in |
| Pipe Length | 2438.4 mm | 96 in |
| Face Support Pipe Diameter | 73.025 mm | 2.875 in |
| Mounting Diameter, maximum | 218.44 mm | 8.6 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
| Stand-off Distance | 889 mm | 35 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Frame | Pipe mounts | Plain end pipes | Stiff arm | Tower attachment |
| Packaging quantity | 1 |
| Weight, net | 162.001 kg | 357.15 lb |
