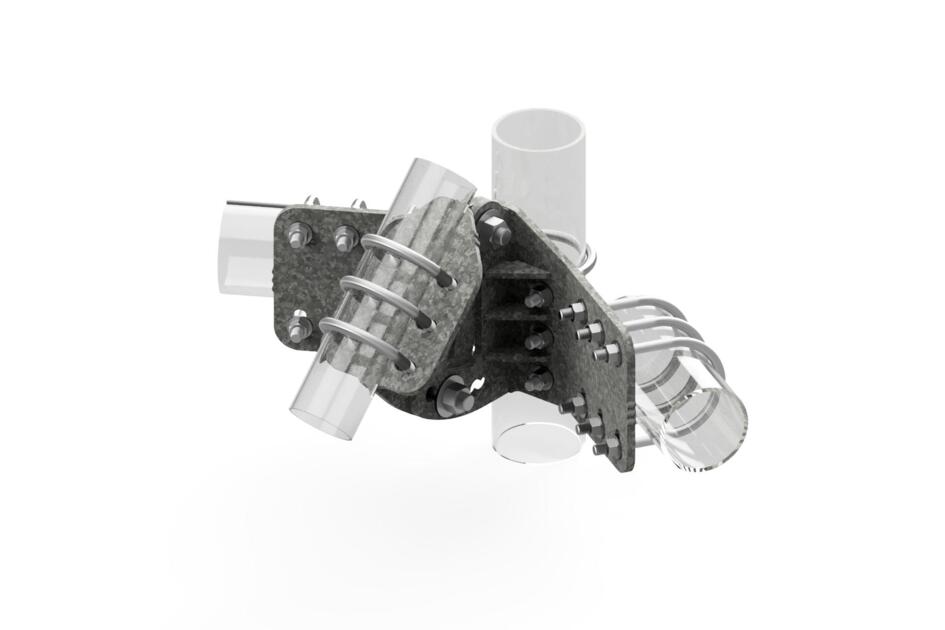

AA-K2T3-V3T4-X3T4
Crossover Vertex Bracket with Adjustable KickerAngle, connecting 3 in to 4 in OD round vertical member to (2) 3 in to 4 in OD round horizontal members at 60 degrees, and central kicker with 2 in to 3 in OD round member with 30-60 degrees of adjustment
Specifications
Product classification
| Product Type | Magnetic mount |
| Product Brand | Estech Magnetics |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Mounting | Water tower surface |
Dimensions
| Height | 257.810 mm | 10.15 in |
| Width | 239.522 mm | 9.43 in |
| Length | 500.888 mm | 19.72 in |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 16.420 kg | 36.2 lb |
Product classification
| Product Type | Magnetic mount |
| Product Brand | Estech Magnetics |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Mounting | Water tower surface |
Dimensions
| Height | 257.810 mm | 10.15 in |
| Width | 239.522 mm | 9.43 in |
| Length | 500.888 mm | 19.72 in |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 16.420 kg | 36.2 lb |
