WT-MMP
Mini Monopole for Stackable Pod Mount Assembly, 16 ft
Specifications
Product classification
| Product Type | Water tower mount |
General specifications
| Mounting | Stackable pod mount |
| Pipe, quantity | 1 |
Dimensions
| Height | 4876.800 mm | 192 in |
| Width | 1320.8 mm | 52 in |
| Pipe Length | 4876.8 mm | 192 in |
| Pipe Outer Diameter | 355.6 mm | 14 in |

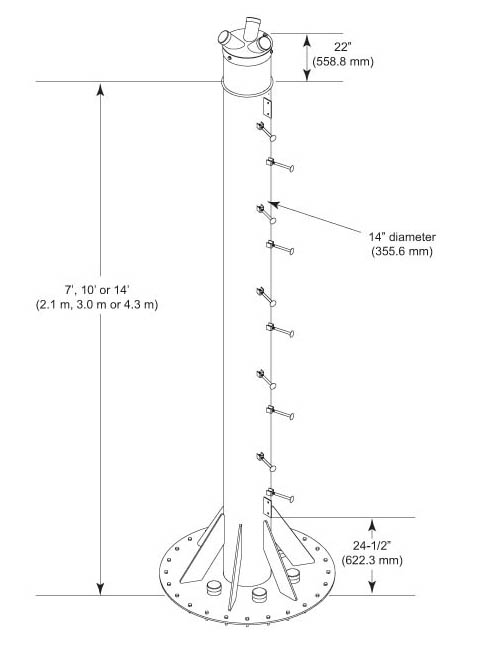

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Pole | Safety-climb | Step bolts |
| Packaging quantity | 1 |
| Weight, net | 694.904 kg | 1532 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Water tower mount |
General specifications
| Mounting | Stackable pod mount |
| Pipe, quantity | 1 |
Dimensions
| Height | 4876.800 mm | 192 in |
| Width | 1320.8 mm | 52 in |
| Pipe Length | 4876.8 mm | 192 in |
| Pipe Outer Diameter | 355.6 mm | 14 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Pole | Safety-climb | Step bolts |
| Packaging quantity | 1 |
| Weight, net | 694.904 kg | 1532 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documentation & downloads
Customer drawing
Product specification
Customer drawing
Product compliance documentation
Product specification
