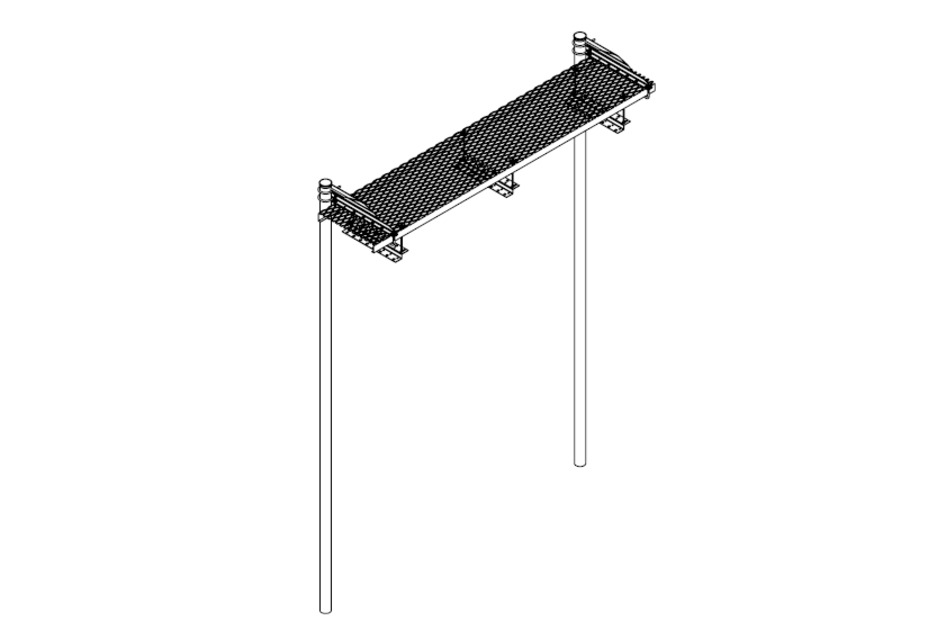

WB-K210-B-T1
Safety Grated Waveguide Bridge Kit, 24 in x 10 ft, with two 13 ft 4 in direct burial posts & 24 in 1 rung Z-Bracket Kit
Specifications
Product classification
| Product Type | Waveguide bridge kit |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Application | Direct burial |
| Cable Runs, quantity | 24 |
| Pipe, quantity | 2 |
Dimensions
| Height | 4064 mm | 160 in |
| Width | 609.6 mm | 24 in |
| Length | 3086.100 mm | 121.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Caps | Channel | Hardware | Posts | Support brackets | Trapeze |
| Packaging quantity | 1 |
| Weight, net | 207 kg | 456.356 lb |
Product classification
| Product Type | Waveguide bridge kit |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Application | Direct burial |
| Cable Runs, quantity | 24 |
| Pipe, quantity | 2 |
Dimensions
| Height | 4064 mm | 160 in |
| Width | 609.6 mm | 24 in |
| Length | 3086.100 mm | 121.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Caps | Channel | Hardware | Posts | Support brackets | Trapeze |
| Packaging quantity | 1 |
| Weight, net | 207 kg | 456.356 lb |
